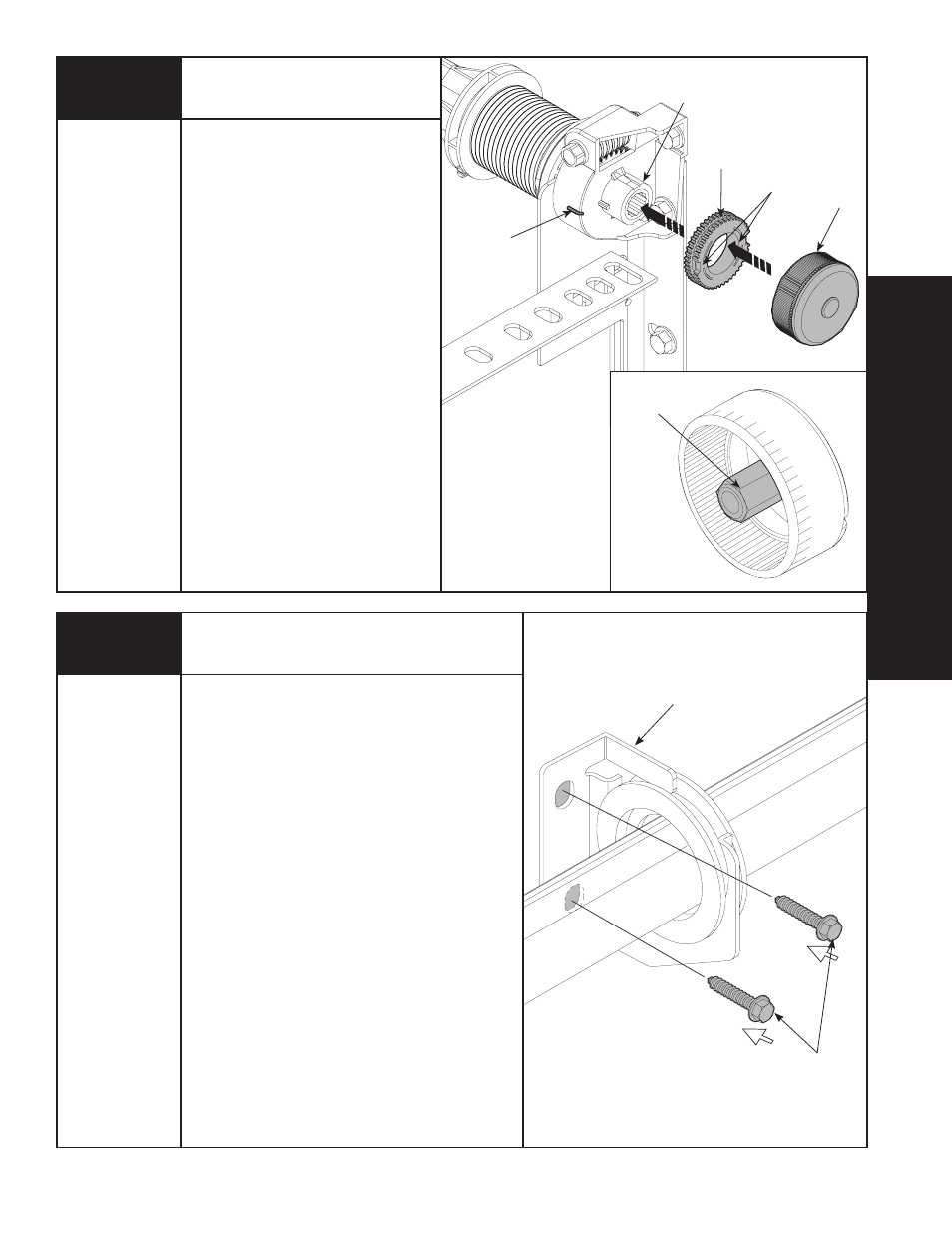

Counter Installation

Install the right side counter gear, with
the missing tooth toward the outside
and away from the end bracket. Press
the counter gear onto the end bracket
until snaps engage.

Select the right hand counter cover and
align the hex of the counter cam with
the end of the winding shaft. Also, align
the “0” on the counter cover with the
raised rib on the end bracket. Press the
counter cover against the counter gear
until it locks into place.

Repeat on left hand side for double
spring applications.

NOTE: No drive gear, counter gear or
counter cover is required on left hand
side for single spring applications. Only
an end bracket is needed.

IMPORTANT: AT ThIS TIME DO NOT
WIND COuNTERBALANCE SPRINGS!

CENTER

BRACkET

ASSEMBLy

(2) 5/16” x 2” hEx

hEAD LAG SCREWS

Securing Center bracket bushing

hEx Of ThE

COuNTER CAM

WINDING

ShAfT INSIDE

END BRACkET

MISSING

TOOTh

RAISED RIB

COuNTER

COVER

COuNTER

GEAR

NOTE: If you are installing an

idrive

opener on your

garage door, skip this step and continue with Step 25.

NOTE: If you are not installing an

idrive

opener on

your garage door, you must install the center bracket
bushing assembly. follow these instructions for
non-

idrive

operated garage doors.

NOTE: If you are installing a DoorMaster™ opener,
see optional DoorMaster™ Bracket installations on
page 33, figure B.

IMPORTANT: TORquEMASTER

SPRING TuBE MuST

BE LEVEL AfTER CENTER BRACkET ASSEMBLy IS
fASTENED TO hEADER.

To locate the center bracket, mark the header halfway
between the flagangles and level the TorqueMaster

spring tube. Drill pilot holes into header for the lag
screws. fasten the metal bracket to the header using
(2) 5/16” x 2” hex head lag screws.

NOTE: upon completion of this step, continue with
Step 29.

Power Drill

3/16” Drill Bit

7/16” Socket

Driver

None
