Tools Needed:
Tools Needed:
3
NOTE: If you have riveted track, skip
this step.
To attach the bottom jamb bracket,
jB-2, locate the first set of quick install
features of the vertical track. Align
the slot in the jamb bracket with the
slot above the quick install features in
the vertical track. The long side of the
bracket is placed against the track.
fasten the jamb bracket finger tight,
using (1) 1/4”- 20 x 5/8” carriage bolt
and (1) 1/4”- 20 flange hex nut.
To attach the top jamb bracket, jB-3,
locate the third set of quick install
features of the vertical track. Align
the slot in the jamb bracket with the
slot above the quick install features in
the vertical track. The long side of the
bracket is placed against the track.
fasten the jamb bracket finger tight,
using (1) 1/4”- 20 x 5/8” carriage bolt
and (1) 1/4”- 20 flange hex nut.
2

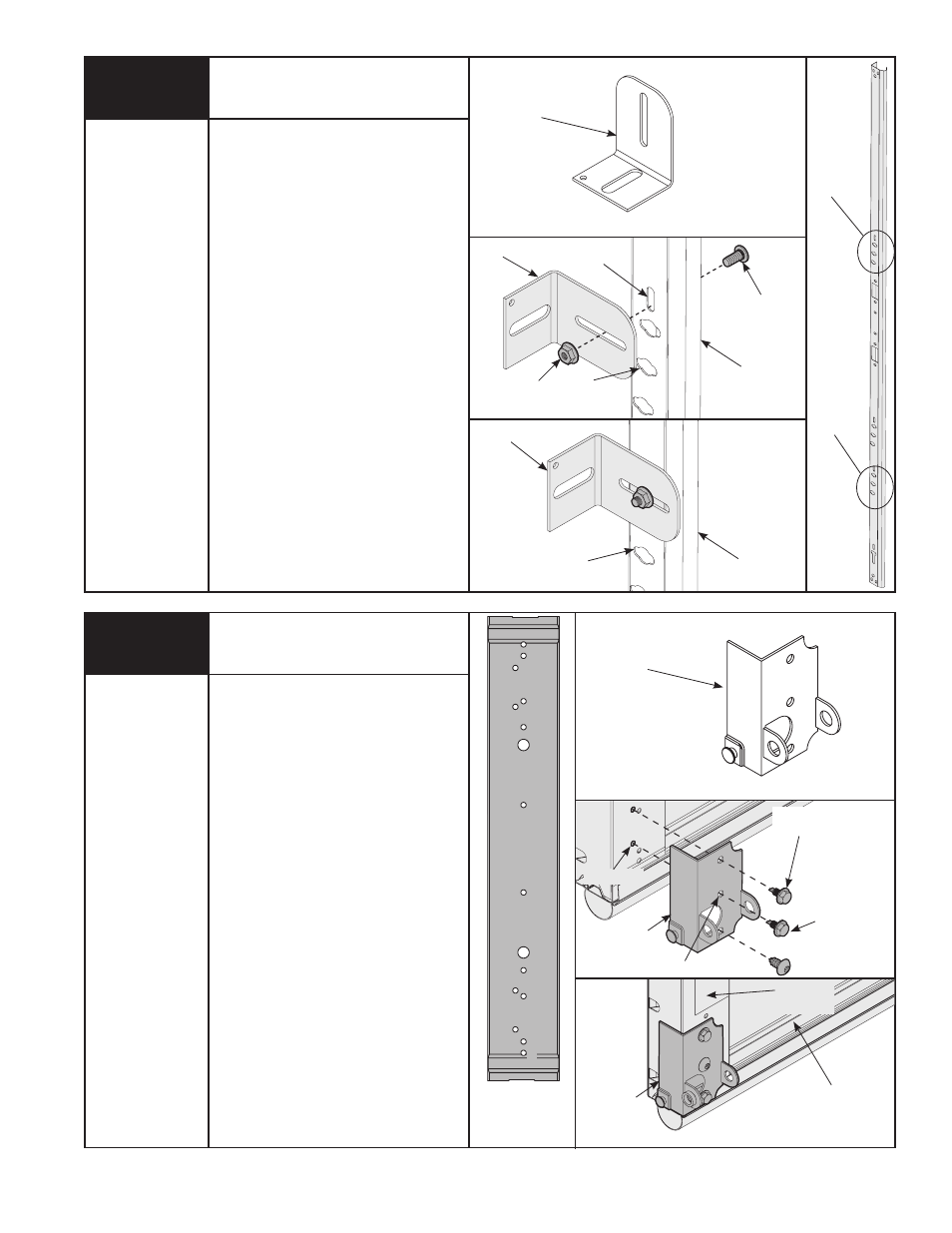

Installing Fully Adjustable Jamb
brackets
1ST SET
3RD SET
fuLLy ADjuSTABLE
jAMB BRACkET
jAMB BRACkET
SLOT
(1) 1/4”- 20 x 5/8”
CARRIAGE BOLT
(1) 1/4”-20
fLANGE
hEx NuT
jAMB BRACkET
VERTICAL
TRACk
quICk INSTALL
fEATuRE
quICk INSTALL
fEATuRE
VERTICAL
TRACk
None
Power Drill
7/16” Socket
Driver
NOTE: for door section identification see
page 4.
Align the center hole of bottom bracket
with hole #3 in the end stile of bottom
section. fasten with (2) 1/4”-20 x 11/16”
self drilling screws and (1) 1/4”-20 x 5/8”
tamper-proof self drilling screw as shown.
Repeat for other side.
NOTE: Only doors provided to professional
installers, who have required tools will be
supplied with a tamper-resistant fastener.
use a 1/4”-20 x 11/16” self drilling screw
in the bottom bracket, if not provided with
a tamper-resistant screw.
bottom bracket
1
2
3
4
5
6
7
LEfT hAND
BOTTOM BRACkET
BOTTOM
BRACkET
(2) 1/4”-20 x 11/16”
SELf DRILLING
SCREWS
(1) 1/4”- 20 x 5/8”
TAMPER-RESISTANT
SELf DRILLING
SCREW
BOTTOM
BRACkET
BOTTOM
SECTION
WARNING
LABEL
END STILE hOLE
PATTERN
(LEfT SIDE IS ShOWN.
RIGhT SIDE IS
OPPOSITE.)
#3 hOLE
CENTER hOLE
