Tools Needed:
INST
All
ATION
1
NOTE: If you have riveted track, skip
this step.
hand tighten the flagangle to the
vertical track using (2) 1/4”- 20 x 5/8”
carriage bolts and (2) 1/4”- 20 flange
hex nuts. Secure the flange nuts after
flagangle spacing is complete (Step 14).
IMPORTANT: READ INSTRuCTIONS TITLED “P4” “DOOR REMOVAL” ON PAGE 9 AND “P5” “PREPARING ThE OPENING” ON PAGE 10
BEfORE ATTEMPTING DOOR INSTALLATION.
IMPORTANT: STAINLESS STEEL OR PT 2000 COATED LAG SCREWS MuST BE uSED WhEN INSTALLING CENTER BEARING BRACkETS,
END BEARING BRACkETS, jAMB BRACkETS, OPERATOR MOuNTING/SuPPORT BRACkETS AND DISCONNECT BRACkETS ON TREATED
LuMBER (PRESERVATIVE-TREATED). STAINLESS STEEL LAG SCREWS ARE NOT NECESSARy WhEN INSTALLING PRODuCTS ON
uNTREATED LuMBER.
NOTE: It is recommended that 5/16 x 2” lag screws be pilot drilled using a 3/16” drill bit, and 1/4 x 2” lag screws and 1/4 x 1-1/2” lag
screws be pilot drilled using a 1/8” drill bit, prior to fastening.
None

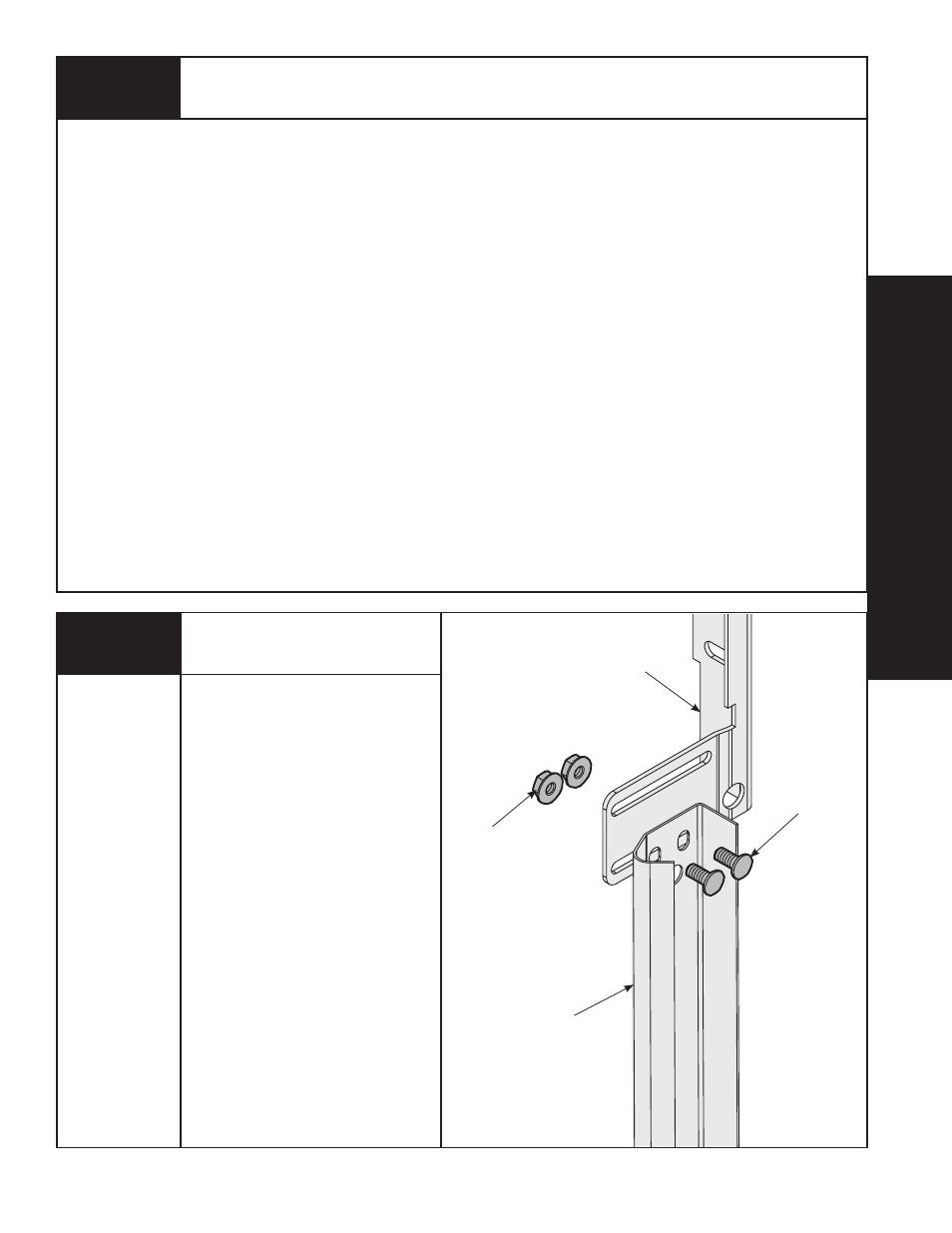

Attaching Fully Adjustable
Flagangle to vertical Track
(2) 1/4”- 20
fLANGE hEx
NuTS
fuLLy ADjuSTABLE
fLAGANGLE
(2) 1/4”- 20 x 5/8”
CARRIAGE BOLTS
VERTICAL
TRACk
