Tools Needed:

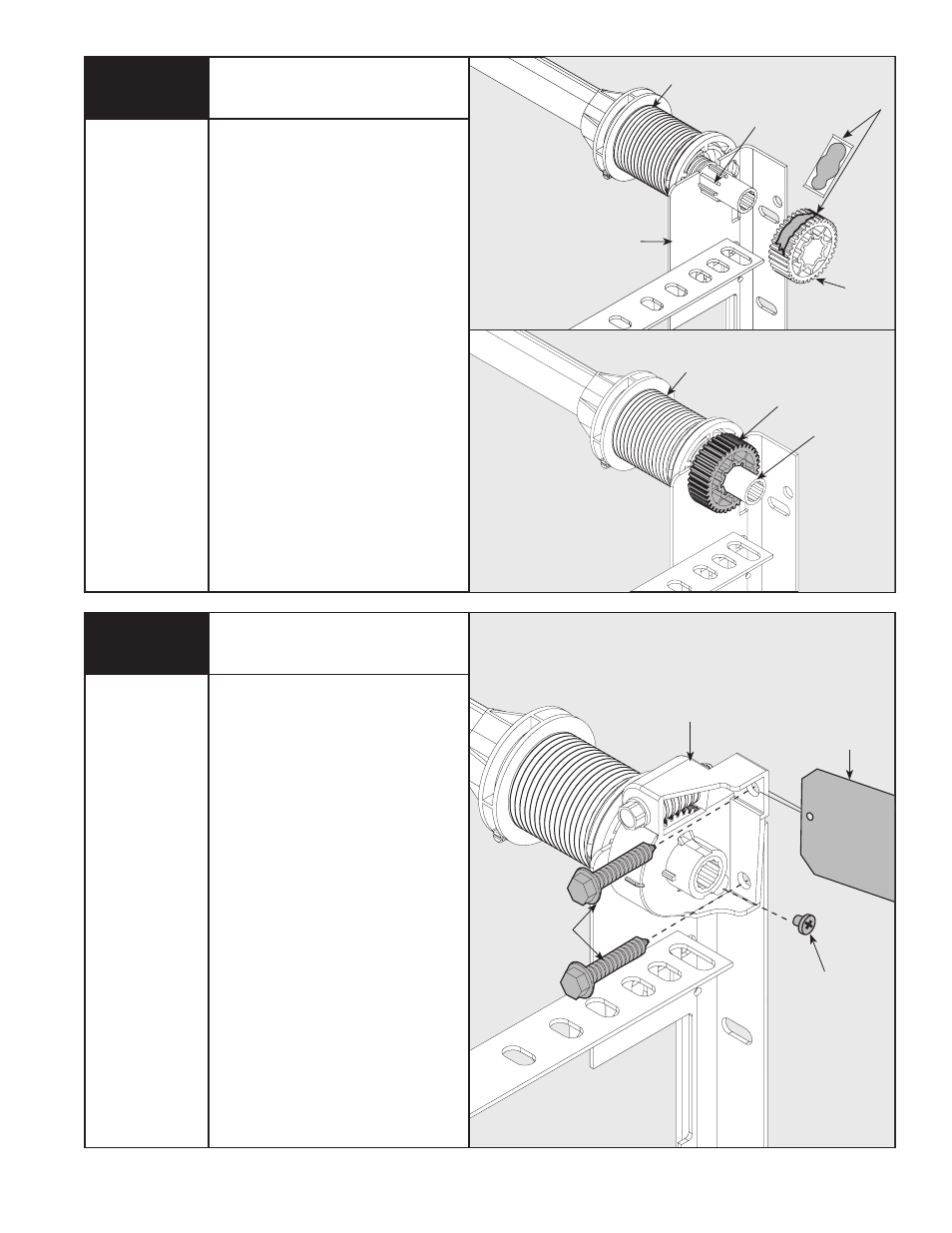

Drive gear Installation

End brackets

Beginning with the right hand side,
lubricate entire circumference of the
drive gear with the lubricating oil
provided. Slide the drive gear onto the
winding shaft splines until it touches
the flagangle.

NOTE: On single spring applications,
no drive gear is required on the left
side.

NOTE: If additional lubricating oil is
needed, use “Dura Lube

Engine Oil

Treatment”.

IMPORTANT: WARNING TAGS MuST BE
SECuRELy ATTAChED TO BOTh END
BRACkETS.

Slide the right hand end bracket over
the drive gear and fasten to the
flagangle using a #10 phillips head
screw.

Drill 3/16” pilot holes into jamb for the
lag screws. Secure end bracket and the
flagangle to the jamb using
(2) 5/16” x 2" hex head lag screws.

Power Drill

3/16” Drill Bit

7/16”

Socket Driver

Phillips head

Screwdriver

WINDING

ShAfT

SPLINES

DRIVE

GEAR

fLAGANGLE

WINDING

ShAfT

CABLE

DRuM

CABLE

DRuM

(2) 5/16” x 2”

hEx hEAD LAG

SCREWS

#10 PhILLIPS

hEAD

SCREW

WARNING

TAG

END BRACkET

LuBRICATING

OIL

DRIVE GEAR
