MAINTENANCE-PAD DRIVER
86306300 CHARIOT BURNISHER 11/09/07 4-9

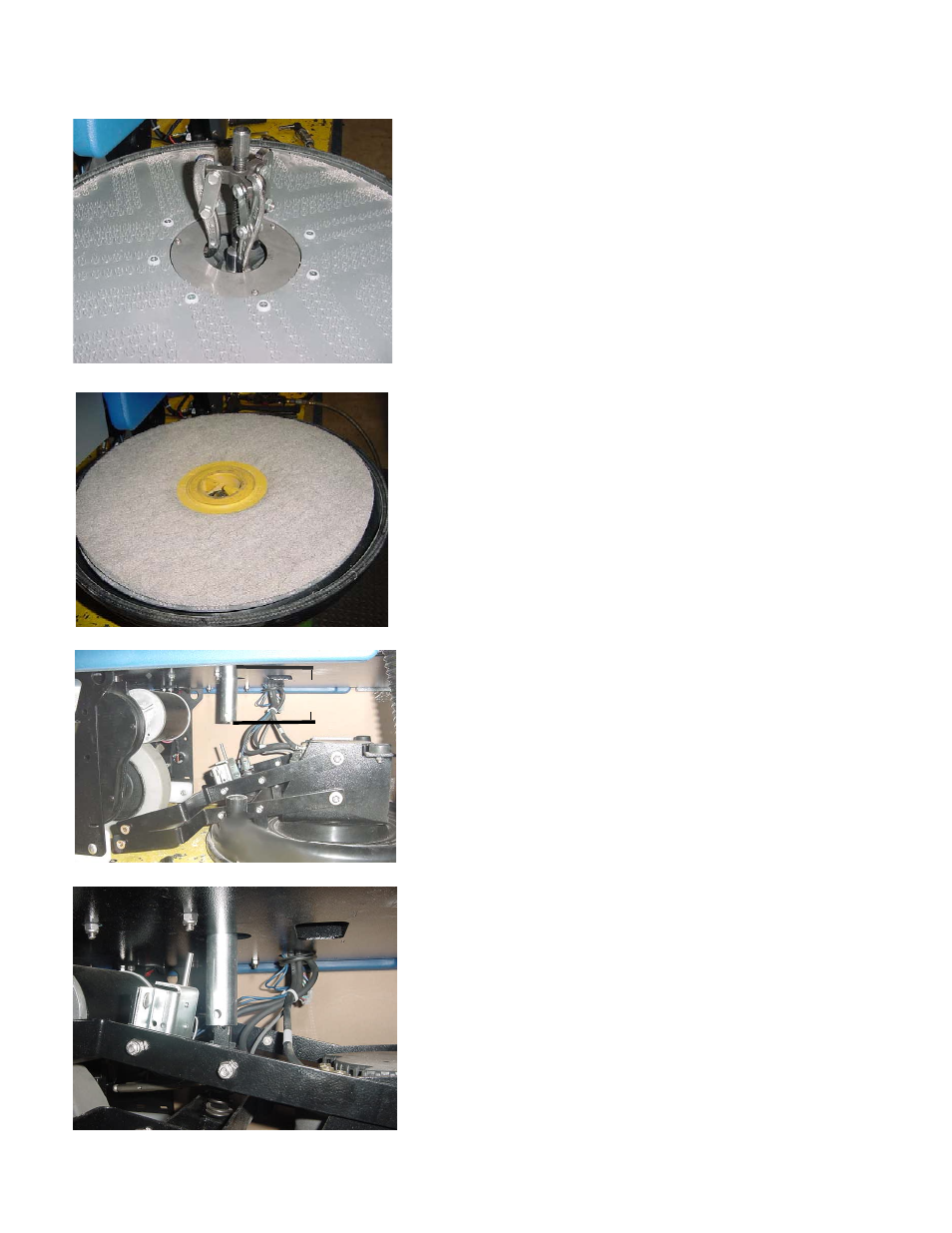

Use Gear puller to remove pad driver from motor
shaft. Take care not to misplace motor shaft key.
Install new pad driver, motor shaft key, spacer, washer
and bolt. Then install pad lock keeper, pad and pad lock.
Turn deck assembly over onto pad
Reattach wires to motor and connect motor wire harness
to frame harness. Tie wires in place. Set actuator barrel by
rotating barrel up or down to set barrel at 3 -7/8 +0 -3/16
from top of frame to bottom of barrel.
3 7/8
Reattach deck assembly to frame. Install actuator barrel
on to spring retainer bars. Lift bottom of deck using your
hand to align hole for clevis pin. Install clevis and rue ring.
Turn machine on, raise deck, drive machine check that
machine is working properly. If not recheck actuator barrel
and reset again if needed.
