Windsor Chariot iGloss Burnisher CB20 - Manual (Page 26)

MAINTENANCE
86306300 CHARIOT BURNISHER 11/09/07 4-7
DUST BAG REPLACEMENT
1. Raise cover to expose filter cover.
2. Using lifting access hole, lift bag cover.
3. Carefully remove bag from hose.
4. Slide a new bag onto hose. Ensure bag is
pushed on so that top of bag rest on top lip of
filter cover.

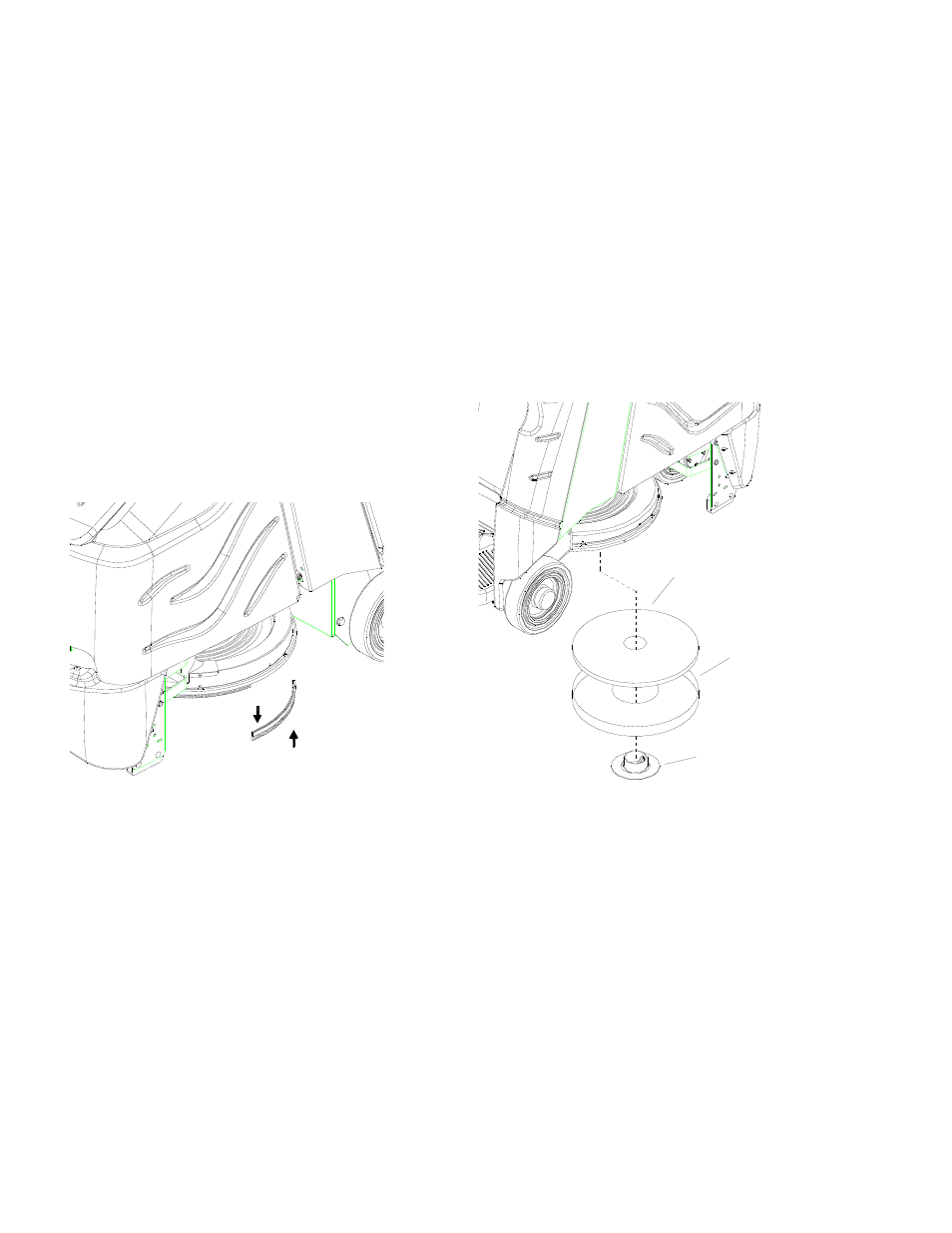

DUST CONTROL SKIRTS
Replace skirts when worn, torn, or damaged in any
way that allows dust to escape.
1. Remove skirt strips by pulling down.
2. Insert new skirt strips and snap them into place.
PAD INSTALLATION
Install pad using the pad centering tool (86064370 –
PRV NO. 66829).
1. Lay the pad in the pan and position under the
pad driver. The edges of the pan will align the
pad and driver.
2. Screw the center lock in place through the hole
in the pan. The center lock has a right hand
thread.
The pad centering tool can be stored under the
hood.
SNAP IN
SNAP OUT
PAD
CENTER LOCK
PAD CENTERING TOOL
