8315 TGI Troubleshooting
Varec, Inc. 93
8.2.4 Performing a Hard Reset
A ‘Hard Reset’ clears the Tank Gate Interface’s database. The following procedure describes the
steps necessary to perform a Hard Reset:
1. Set the ID DIP switch to 15 (all switches Closed/On). This action initiates the Hard Reset
Procedure.

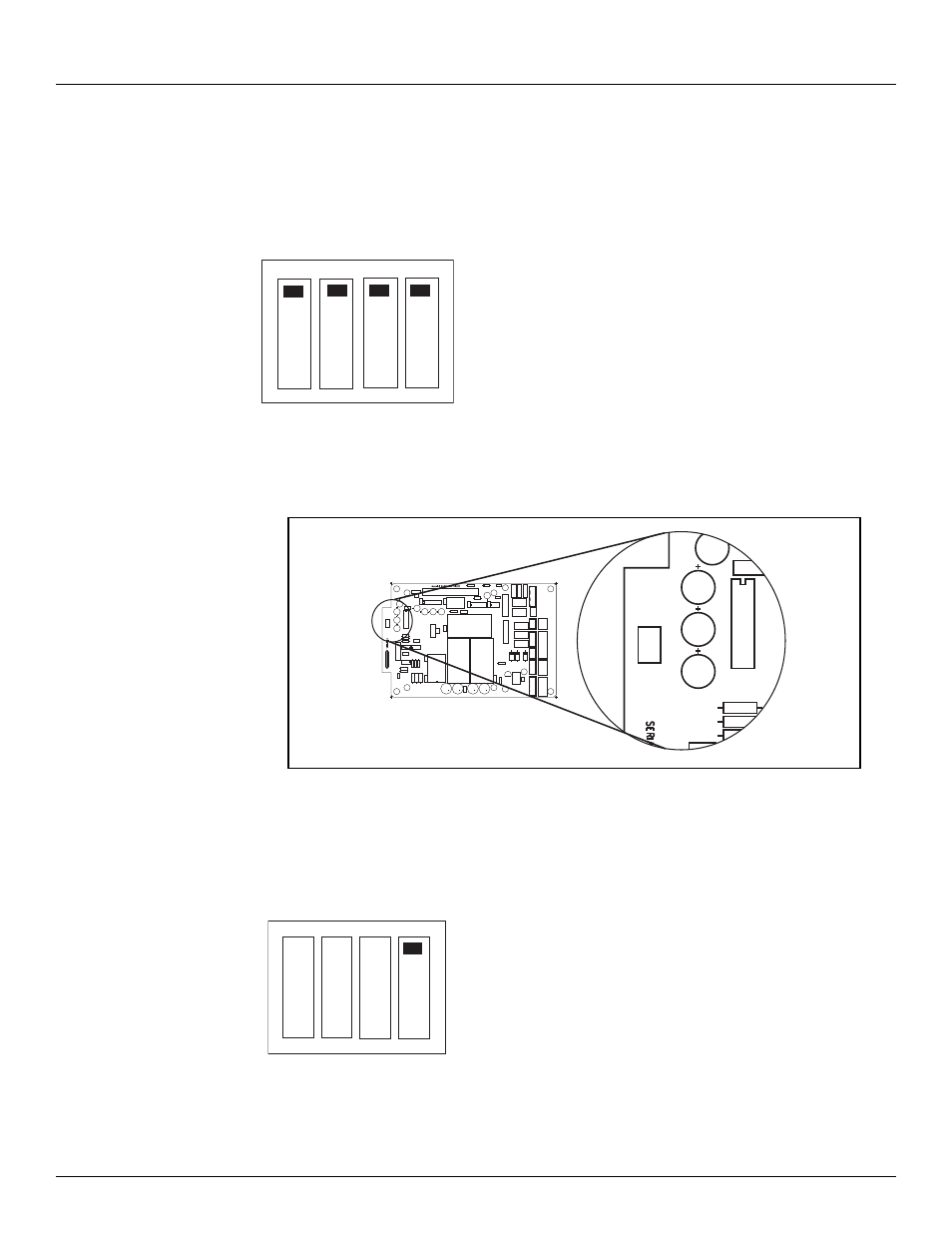

Figure 8-1: Set the ID DIP switch to 15
2. Press the Reset button
Figure 8-2: Switches SW3 on the Tank Gate Interface motherboard
3. The Tank Gate Interface will perform its memory test. When it has completed the memory
test, all LEDs will be on.
4. Set the ID DIP Switch to the desired address (1-14). At this point, there is no further action
required by the user.
Figure 8-3: Set the ID DIP switch to the desired addresses
ID = 15
RESET
SW3
EARTH
NEUTRAL
LINE
SURGE GND
A/TXD
B/RXD
GND
RTS
CTS
TXD
RXD
GND
+15V
+5V
GND
-15V
+
-
VFIELD
COM1
COM 0
AUX POWER VFIELD=48V VFIELD=24V
RESET
RS232
RS485
COM1
HARDWARE HANDSHAKING
A B
ID = 1
