Page 36
Power Supply 24VDC, 300mA
Input per channel NA
Output per channel 0.5A, 24VDC per output
Power Rating (Back Plane)
Voltage Rating 3.75 VDC derived from
base model
Current Rating Upto 80mA
GDO216P*S (PNP Type transistor output)
Digital Inputs 0
Digital outputs 16 PNP type Transistor output. 4
points per common
Rated load 500mA max for PNP and NPN type
transistor output
General
100mm X 35mm X 70mm Mechanical Dimension
Weight 150 gm.

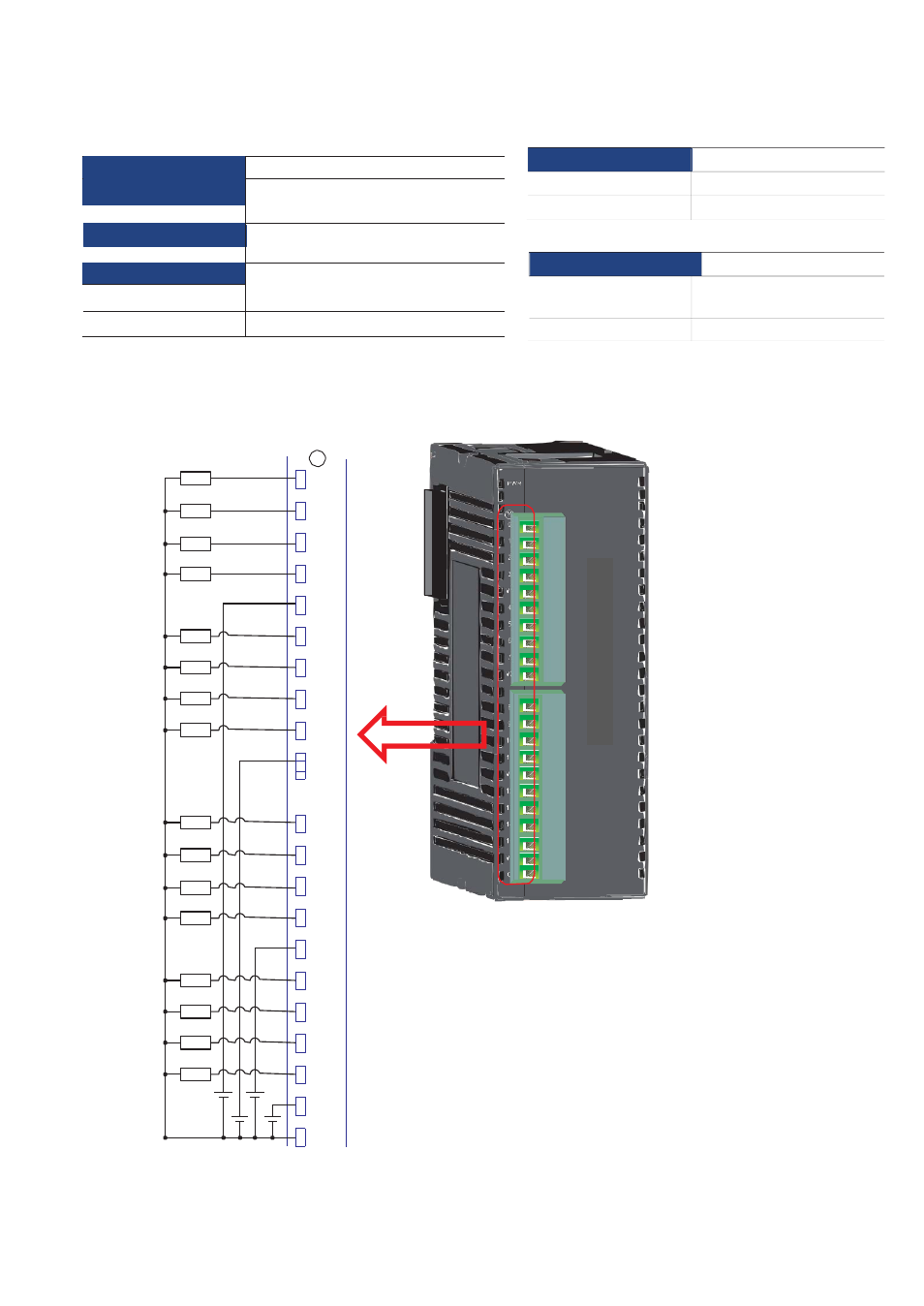

Wiring Diagram for GDO216P**S
Y
L
0
L
1
L
2
L
3
V1
L
4
L
5
L
6
L
7
V2
L 8
L
9
L
10
L
11
V3
L
12
L
13
L
14
L
15
+ +
+
-
+
V4
- -
C
