Page 35
Power Rating (Back Plane)
Voltage Rating 3.75 VDC derived from
base model
Current Rating Upto 80mA
1.4.4 Specification for Expansion Models
GDI216**S
Digital Inputs 16 Normal Inputs, 8 points per
common. Bidirectional type.
Input per channel 5mA, 24VDC
Output per channel NA
Input Impedance 5.4K ohm
Minimum ON voltage 9.6 VDC
Maximum OFF voltage 3.6 VDC
Turn ON time 10 msec
Turn OFF time 10 msec
Isolation Digital inputs are optically isolated
from the internal circuit
Connection method Removable terminals
(3.81mm pitch)
Digital outputs 0
General
Mechanical Dimension 100mm X 35mm X 70mm
Weight 150 gm.

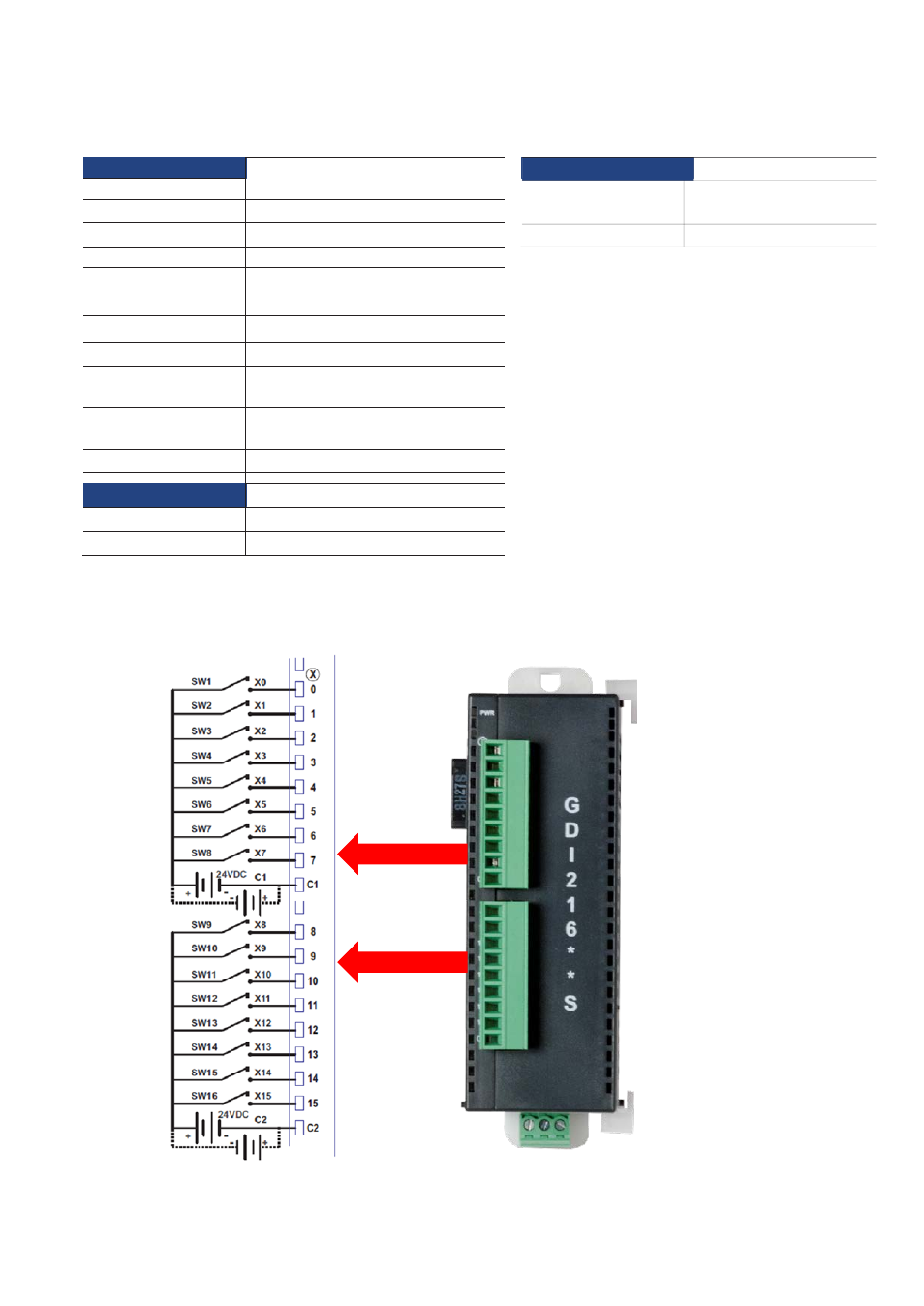

Wiring Diagram for GDI216**S
Closing Swx will turn on respective inputs
