1.3 V200 Overview
1.3.1 What is a V200 Series Controller
V200 Series units are compact, easy-handling block style programmable controller. It also has modular
expandability.
Configuration of V200 unit:
Each V200 CPU has to be configured using the OIL-DS Software before connecting it to the system.
F
L
0
1
0
Normal Operation:
The V200 family is designed to offer practical PLC features in a compact and expandable design, and at the same
time offer a simple-to-use philosophy. An external powered V200 Series base model by itself can be used as a
complete PLC system with optional built-in I/O points, or the system can be expanded with the addition of up to
eight I/O modules.
The V200 can be mounted in DIN rail plate. The base CPU and I/O modules are connected together via an
expansion port on the sides of the modules. A variety of I/O modules are available for flexible and optimal system
configuration.

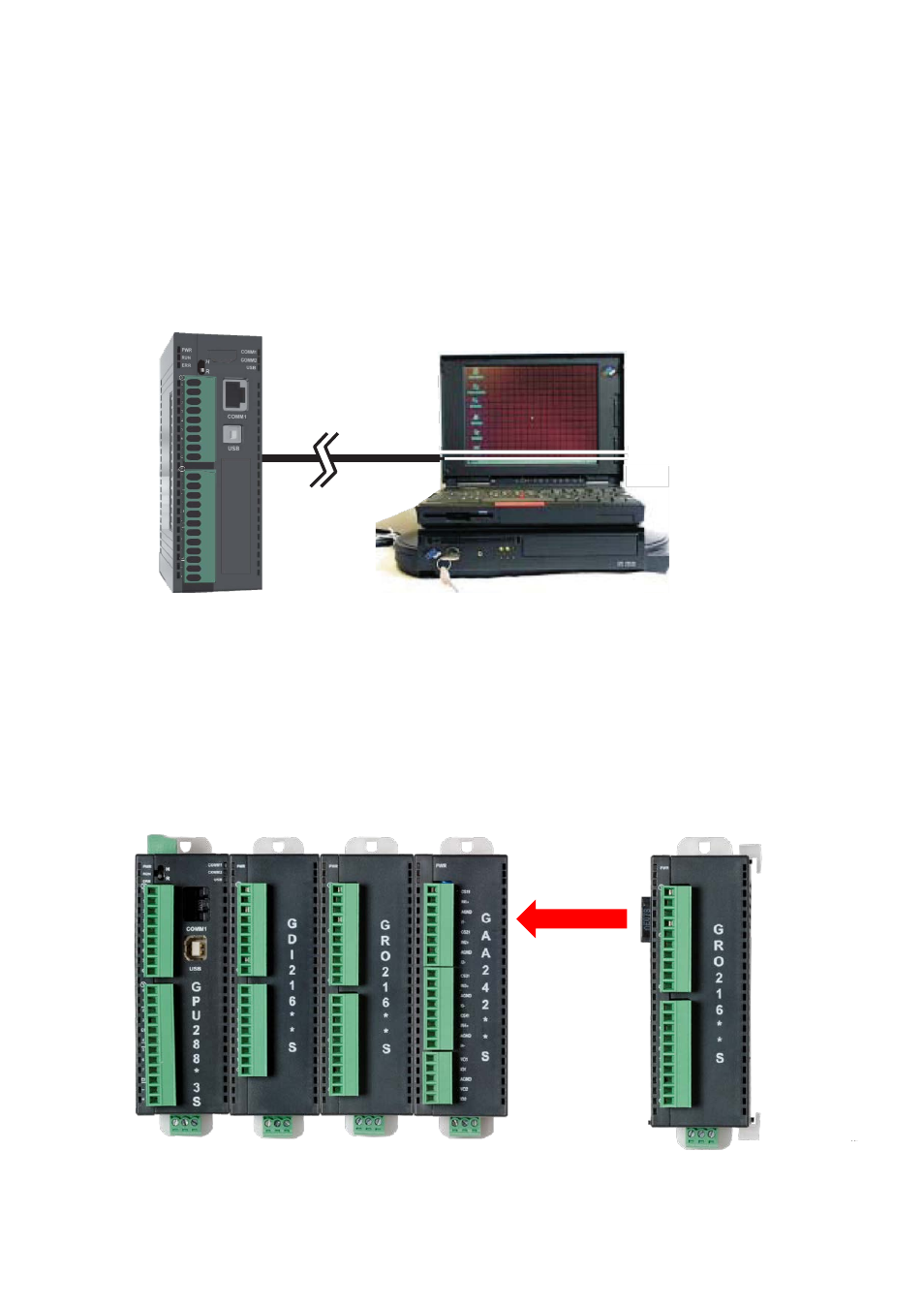

FIG-1: V200 Base with Expansions Modules
