Operator’s Checkout Procedure

1760 Series Component Waveform/Vector Monitor User Manual

2-18

Filter Selection

The 1760--Series offers several filter selections for the
waveform display.

Ensure that the instrument is operating in waveform mode.
Enter the

FILTER

menu (

FLAT

is selected by the factory

preset). Select

LUM

filter. This provides a low-pass-filtered

display of the luminance portion of the signal. See
Figure 2-7.

10 S/DIV

FLAT

LUM

CHROM

DIFF

R--Y

SCH R--Y

F+L

F+L+C

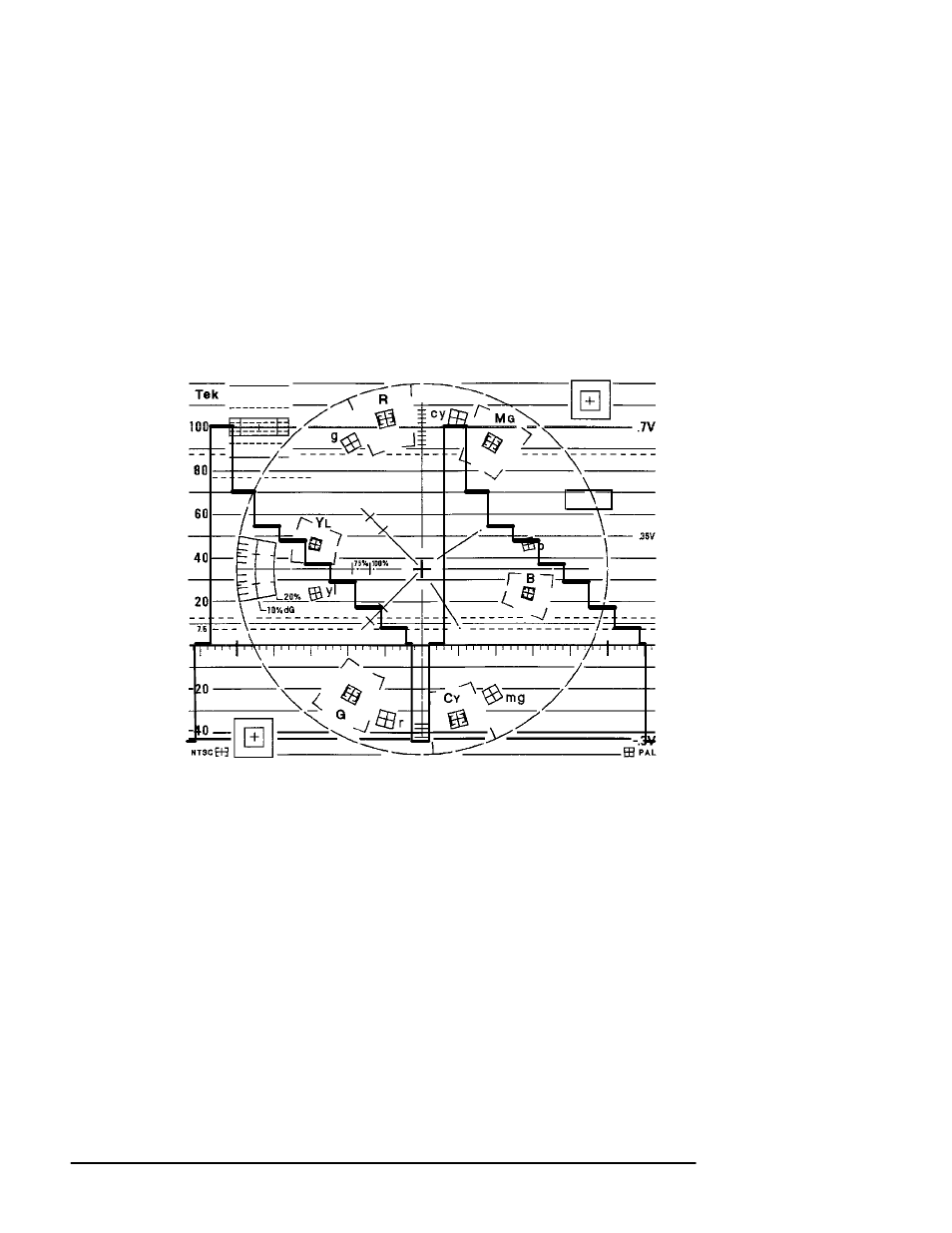

Figure 2-7. Two-Line LUM filter display of color bar signal.

Select

CHROM

. This provides a bandpass-filtered display of

the chrominance portion of the signal. See Figure 2-8.

Select

F+L

(

FLAT

plus

LUM

)

The flat display is superim-

posed on the luminance-filtered display (overlay is selected
by the factory preset). Press the appropriate bezel button
(not the front-panel

PARADE

button) to select parade. The

flat display is now on the left, followed by the luminance-fil-
tered display.
