H Depress and hold the

CLEAR MENU

and

WAVEFORM

buttons while you turn instrument power on again.
Hold both buttons in until the instrument returns to
its normal operating state.

H If this reset does not unlock the controls, contact

your Tektronix field office or call Tektronix at the
phone number listed in the front of this manual.

Multi-use Controls

H The center three controls located under the

CRT

have

functions assigned and labeled through the on-
screen menus and readouts. These controls will be
referred to as

Bezel Controls. See Figure 2-1.

H Five small buttons along the right side of the

CRT

enable users to make selections from on-screen
menus. These buttons will be referred to as

Bezel

Buttons.

VERTPOS

HORIZPOS

Three Bezel Controls

CLEAR

Five

Bezel

Buttons

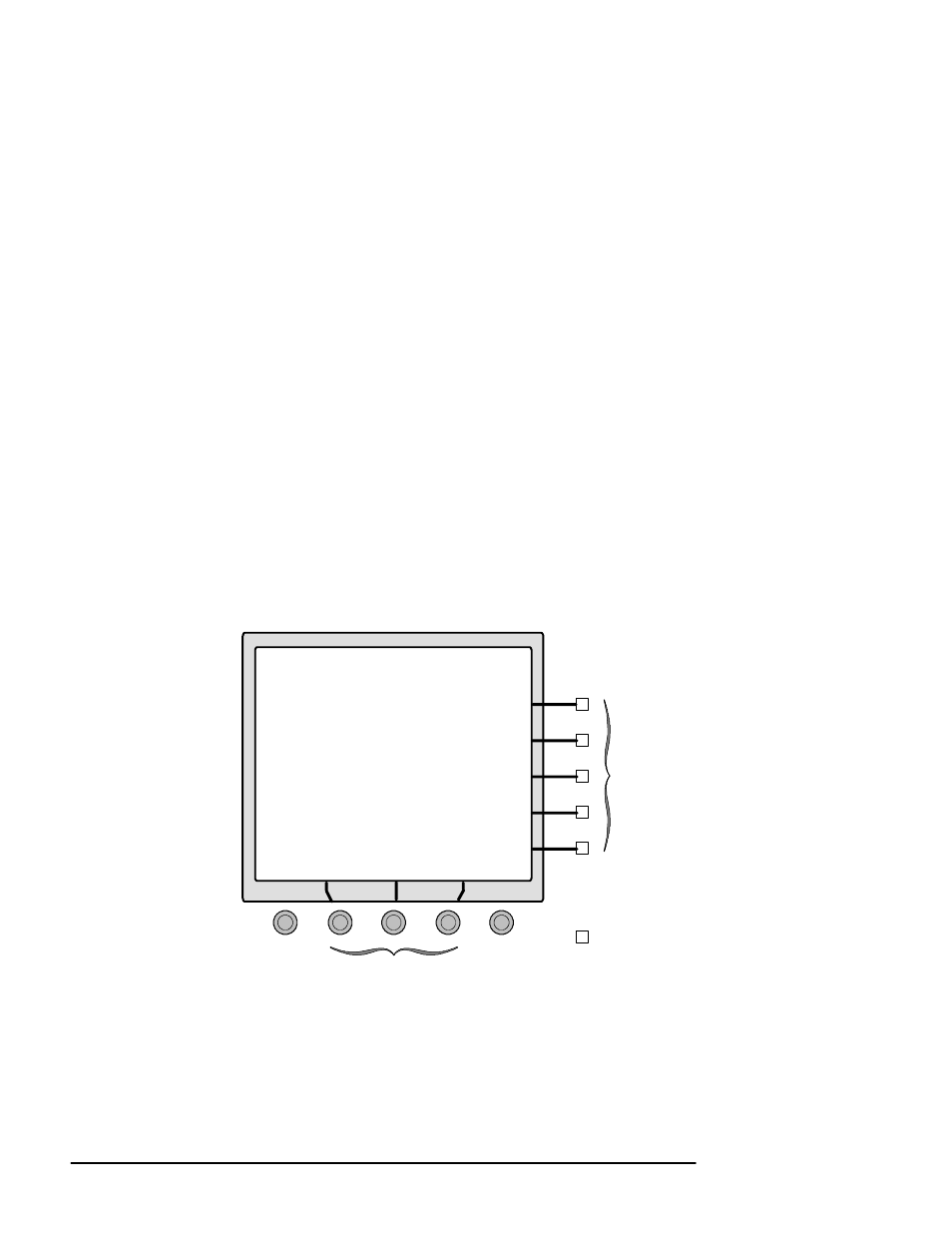

Figure 2-1. Multi-Use Bezel Controls and Buttons.
