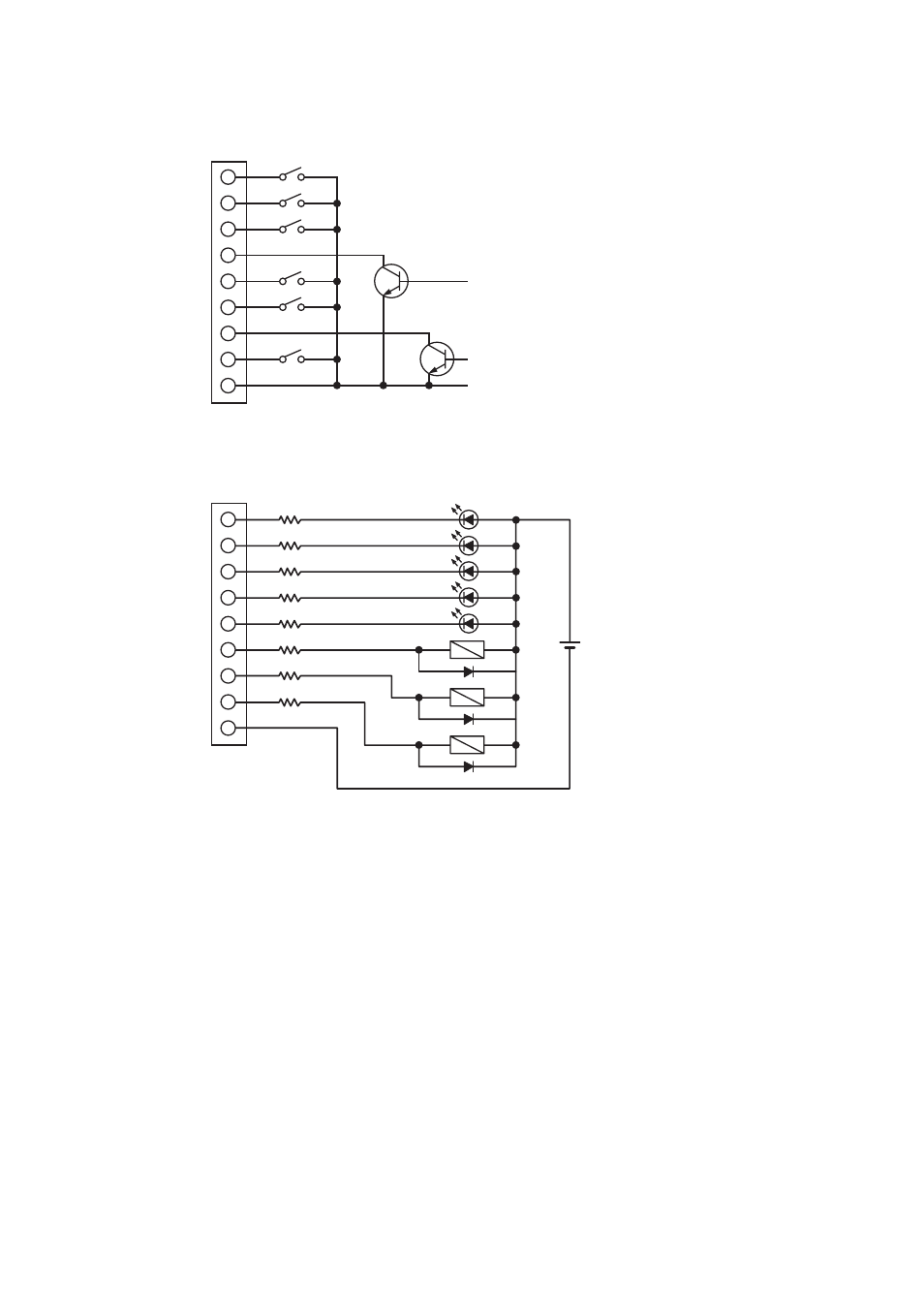

16.3. C-001T Module Connections
IN
1
2
3
4
5
6
7
8
E
Open collectors, etc.
Contact closures
(Open voltage: 3.3 V, Max. 1 mA)
16.3.1. Control input terminal
OUT
1
2
3
4
5
6
7
8
E
Applicable DC voltage
Max. 27 V DC
LEDs, Relays, etc. (Max. 50 mA)
16.3.2. Control output terminal
For operation by means of
the control inputs, refer to
