13.3. Basic Setting Operation
13.3.1. Entering the setting mode
Holding down the Utility menu key for 2 seconds or more displays the setting menu screen.
Note
You cannot enter the setting mode as long as any indication is displayed in the upper line of the VFD screen.
To enter, delete the indication by pressing the Memory key, then hold down the Utility key for 2 seconds or
more.
13.3.2. Setting screen operation examples

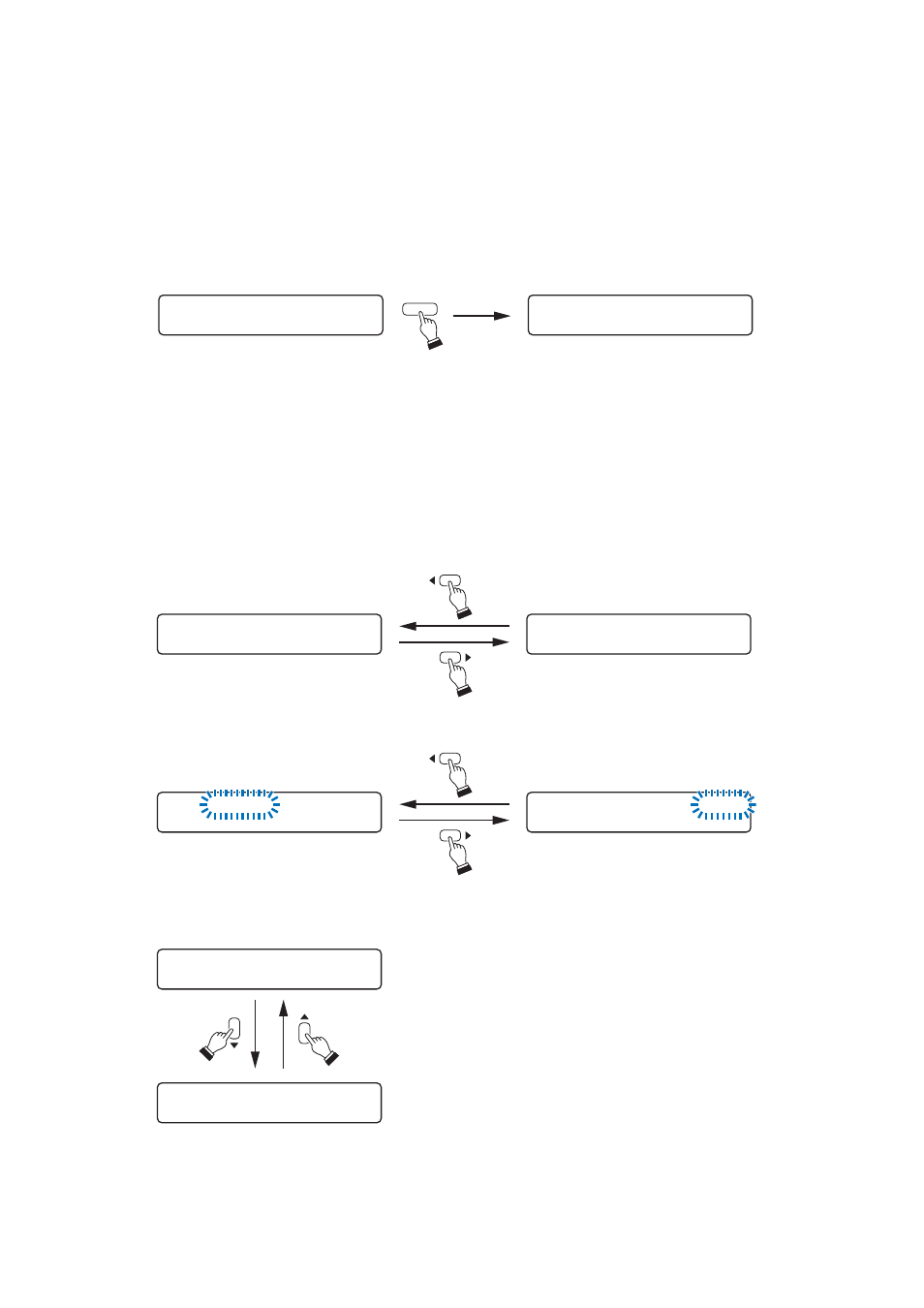

[Moving the setting screen or setting item]
Use the Screen shift key mainly. (The Enter and Escape/Back keys may also be used.)
Normal use state
I N P U T – S E T T I N G
Setting menu screen
UTILITY
S E L E C T I N P U T C H I N P U T – S E T T I N G
I N 1 P R I O R I T Y 8
When moving the setting screen:
• Examples of using the Left and Right shift keys
• Example of using the Up and Down shift keys
I N 1 – I N P U T 1
H P F – 4 0 0 H Z L P F – 1 2 . 5 H P F – 4 0 0 H Z L P F – 1 2 . 5
When moving the setting item on the same screen:
