1. Design the system.
1.1. Determine the input and output equipment.
1.2. Set the input-to-output routing and priority.
2. Prepare equipment.
2.1. Mount modules. (Refer to p. 88. )
2.2. Check to confirm that the Mode switch is set to the matrix mode. (Refer to p. 25. )
2.3. Connect the power source to the unit using the power cord, then turn on the power switch.
3. Perform equipment settings.
3.1. Select the operation method. (Refer to p. 35. )
3.2. Set the input parameters. (Refer to p. 40. )
3.3. Set the audio output names. (Refer to p. 45. )
3.4. Set the Event. (Normal matrix operation only) (Refer to p. 46. )
3.5. Set the utility function. (Refer to p. 51. )
3.6. Perform preliminary settings for the adjustment function. (Refer to p. 65. )
3.7. Set the key lock function. (Refer to p. 77. )
3.8. Switch off the power. (Refer to p. 28. )
5. Adjust equipment.
5.1. Switch on the power. (Refer to p. 28 )
5.2. Make adjustments while monitoring the sound. (Refer to p. 65. )
6. Operate the system.
• Activate set broadcast patterns through remote control. (Refer to p. 114. )
• Perform operation using the front panel keys and knobs. (Refer to p. 28. )
• Make paging calls. (Refer to p. 30. )

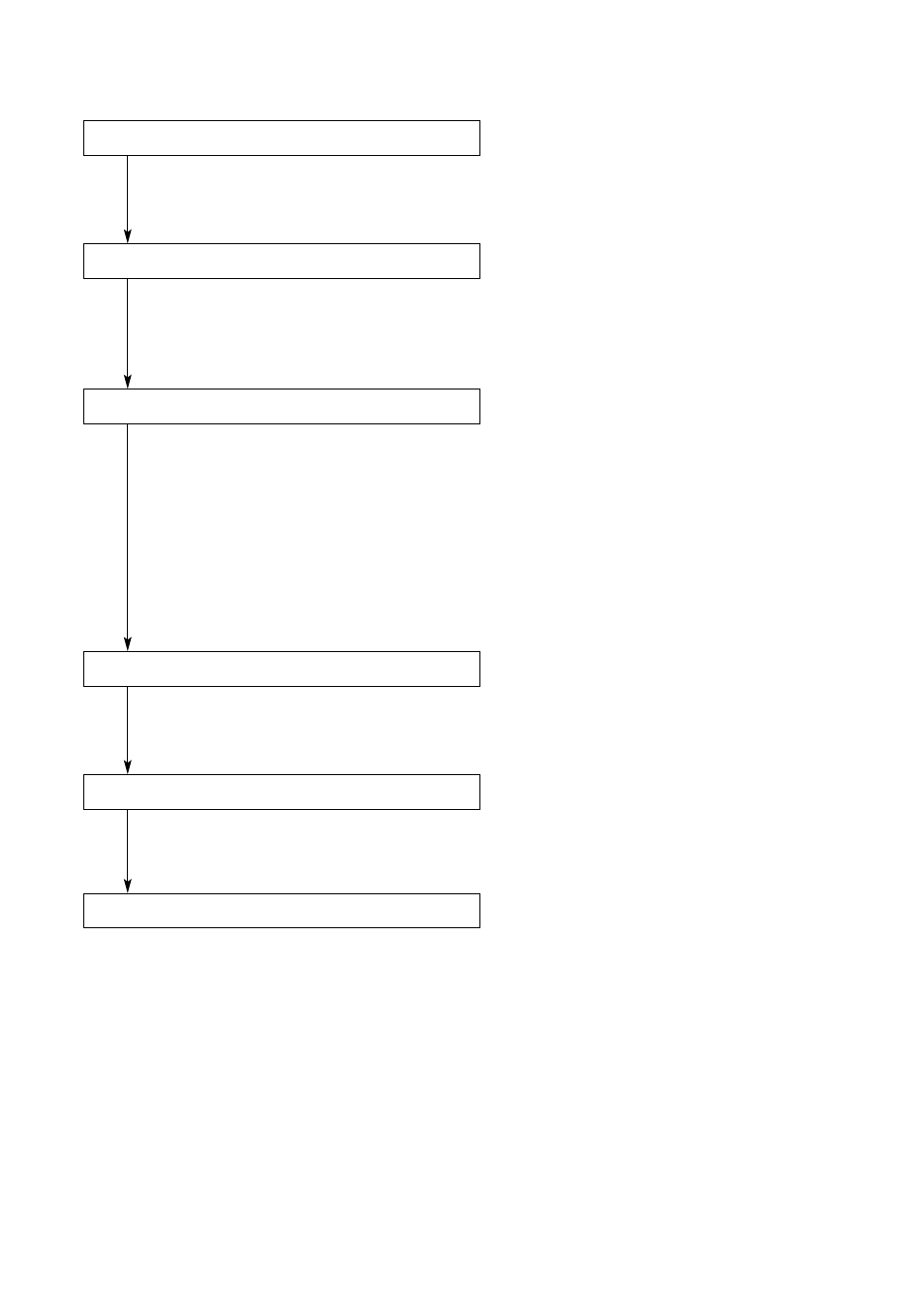

11. SYSTEM DESIGN-TO-OPERATION FLOW
4. Install equipment.
4.1. Mount equipment in a rack. (Refer to p. 100. )
4.2. Perform connections. (Refer to p. 91. )
