15

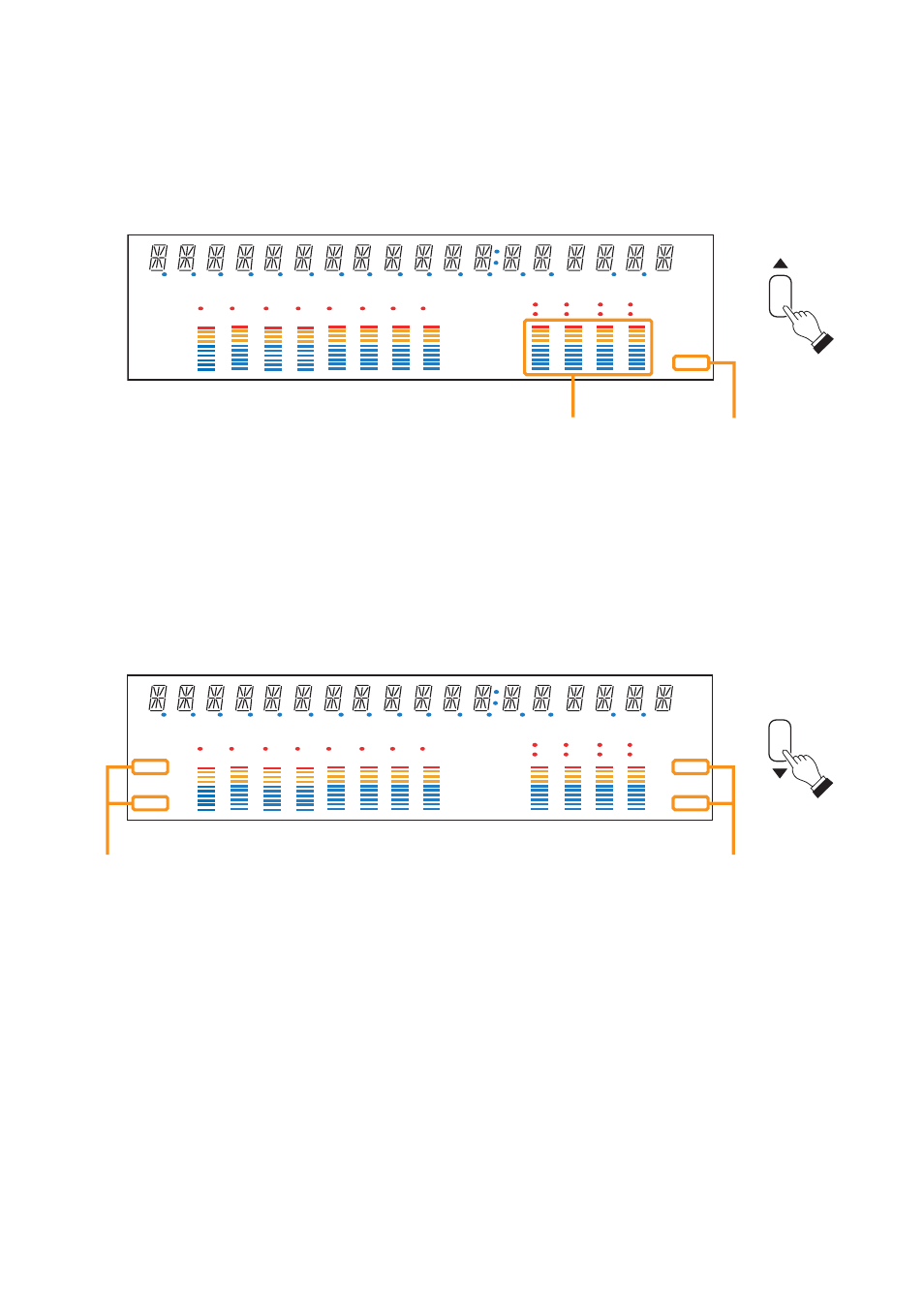

[Changing the input and output meter display status]
Pressing the Down shift key alternately switches the input and output meter display status between the signal
level and the fader position.
The LEVEL indicators on both input and output meters light when the signal levels are indicated, while the
FADER indicators light when the fader positions are indicated.
d B
k Hz
m sec
COM
FAULT
KEYLOCK
EMERGENCY
EQ
COMP
GATE
DELAY
DUCK
NOM LOUD
TONE
GAIN d B FREQ Q
OL
0
–10
–20
–30
–40
OL
0
–10
–20
–30
–40
FADER
LEVEL
FADER
LEVEL
1 2 3 4 5 6 7 8
1 2 3 4
5 6 7 8
Input meter status indicator Output meter status indicator
Note: The figure above is the VFD screen display when the input and output levels are indicated.
[Changing the indicated channels on the LEVEL output meter]
The output meter indicates the signal levels of only a set of 4 channels: CH 1 – 4 (factory-preset) or CH 5 – 8.
Pressing the Up shift key alternately switches the level indication between CH 1 – 4 and CH 5 – 8.
The LEVEL indicator of the output meter status indicator flashes while the CH 5 – 8 are indicated, and stays lit
while the CH 1 – 4 are indicated.
In the same manner, the output meter also changes in the Fader indication.
d B
k Hz
m sec
COM
FAULT
KEYLOCK
EMERGENCY
EQ
COMP
GATE
DELAY
DUCK
NOM LOUD
TONE
GAIN d B FREQ Q
OL
0
–10
–20
–30
–40
OL
0
–10
–20
–30
–40
FADER
LEVEL
FADER
LEVEL
1 2 3 4 5 6 7 8
1 2 3 4
5 6 7 8
Output meter Output meter status indicator
