13.2. Setting Keys and Knobs

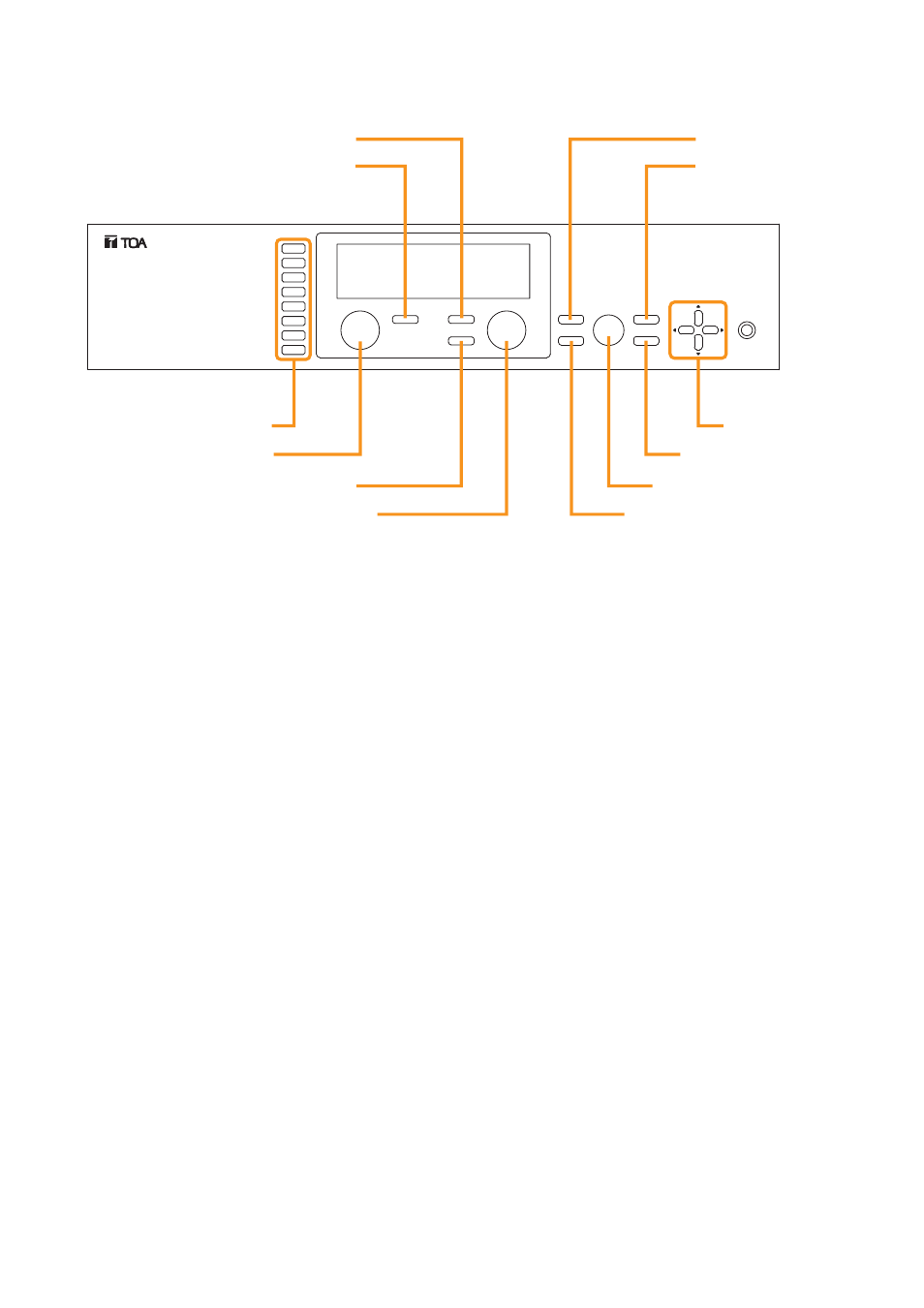

[Front]
ON/OFF
OUTPUT SEL
ON/OFF
OUTPUT VOLUME INPUT VOLUME POWER
UTILITY
ESC/BACK
MEMORY
ENTER
PARAMETER
8
7
6
5
4
3
2
1
INPUT SELECT
TOA 9000 SERIES AMPLIFIER A-9120DH
Input channel selection keys
Input channel ON/OFF key
Output channel ON/OFF key Memory key
Utility menu key
Screen shift keys
Input volume control
Output channel selection key
Output volume control
Escape/Back key
Parameter setting knob
Enter key
This figure represents the A-9120DH.
