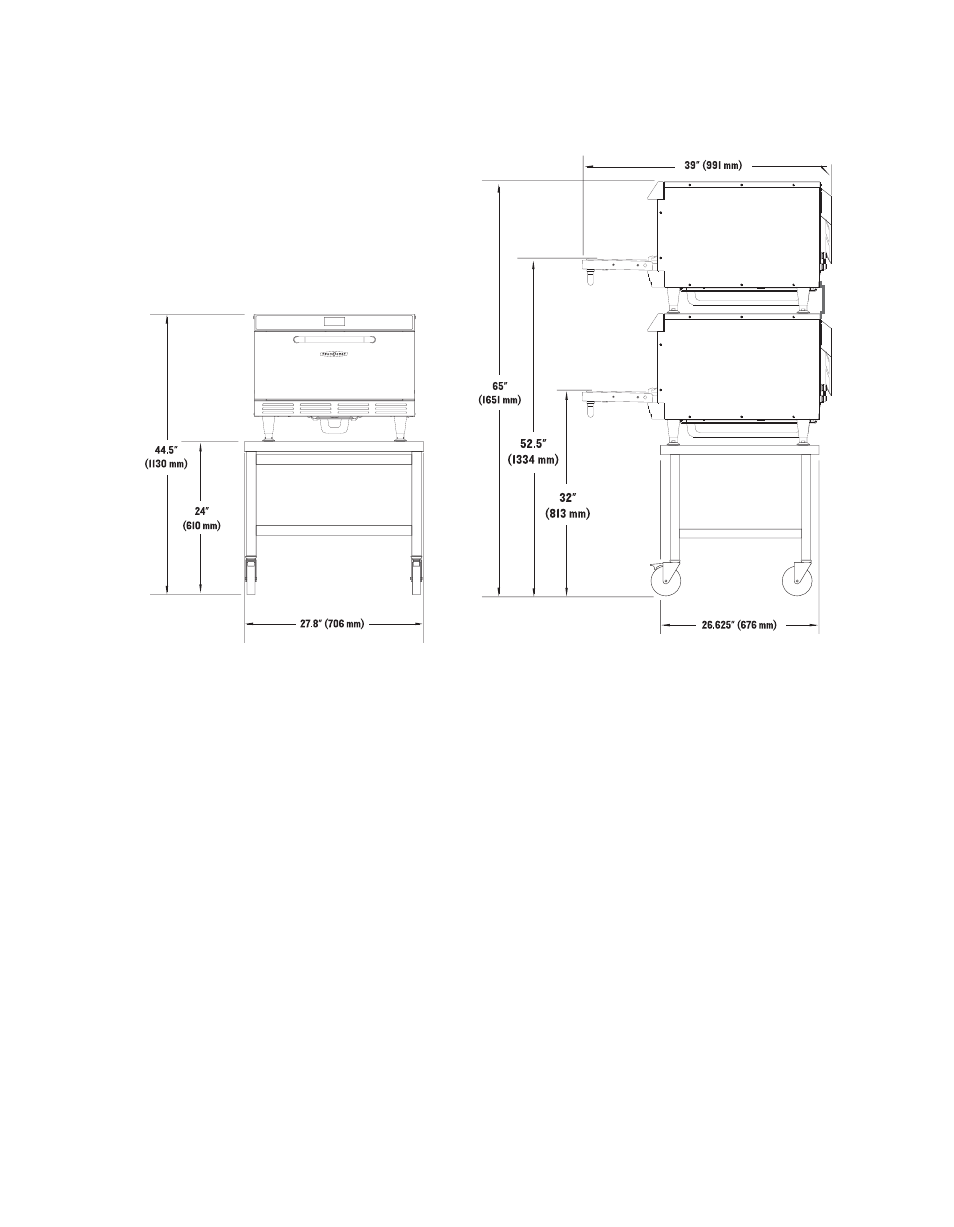

F I G U R E 5: 24′′ (610 mm) Oven Cart with Oven(s)
24′′ (610 mm) Oven Cart
Height 24′′ (610 mm)
with single oven 44.5′′ (1130 mm)
with stacked ovens* 65′′ (1651 mm)
Width 27.8′′ (706 mm)
with single oven 27.8′′ (706 mm)
with stacked ovens* 27.8′′ (706 mm)
Depth 26.625′′ (676 mm)
with single oven 31.5′′ (800 mm)
with stacked ovens* 31.5′′ (800 mm)
*Requires Stacking Bracket.
Assembly instructions are included with the cart. If
additional help is needed, call Customer Service at
800.90TURBO or your Authorized Distributor.
REPLACING/EXCHANGING JETPLATES
The jetplates ensure that hot air is distributed to
maximize food quality. Different jetplates result in
different cooking results.
To replace or exchange a jetplate: (Figure 6)
1. Ensure the oven is in the
OFF
state and cook
cavity temperature is 150°F (66°C) or lower.
2. Remove the oven rack.
3. Remove the support rails.
NOTE: Removing hardware is not required –
the support rails snap on and off. However, they
may require a gentle tap with a utensil to snap
into/out of place.
4. Remove jetplates and install new ones.
5. Reinstall support rails and oven rack.
