JKSSS+ Series - 46
JKSSS+ Series 2.3 - 4.2KV
SP.1 Basic Configuration (Setpoint Page 1)
In Setpoint Page 1, the starter is looking for the following basic
nameplate data of the motor.
SP1.1 Motor Full Load Amps: Allows the user to enter the motor’s
FLA rating. Range of adjustment is 50 - 100% (less
programmed service factor).
SP1.2 Service Factor: Sets the pickup point on the overload curve
as defined by the programmed motor full load current. Ex:
If the motor FLA is 100 and the service factor is 1.15, the
overload pickup point will be 115 Amps.

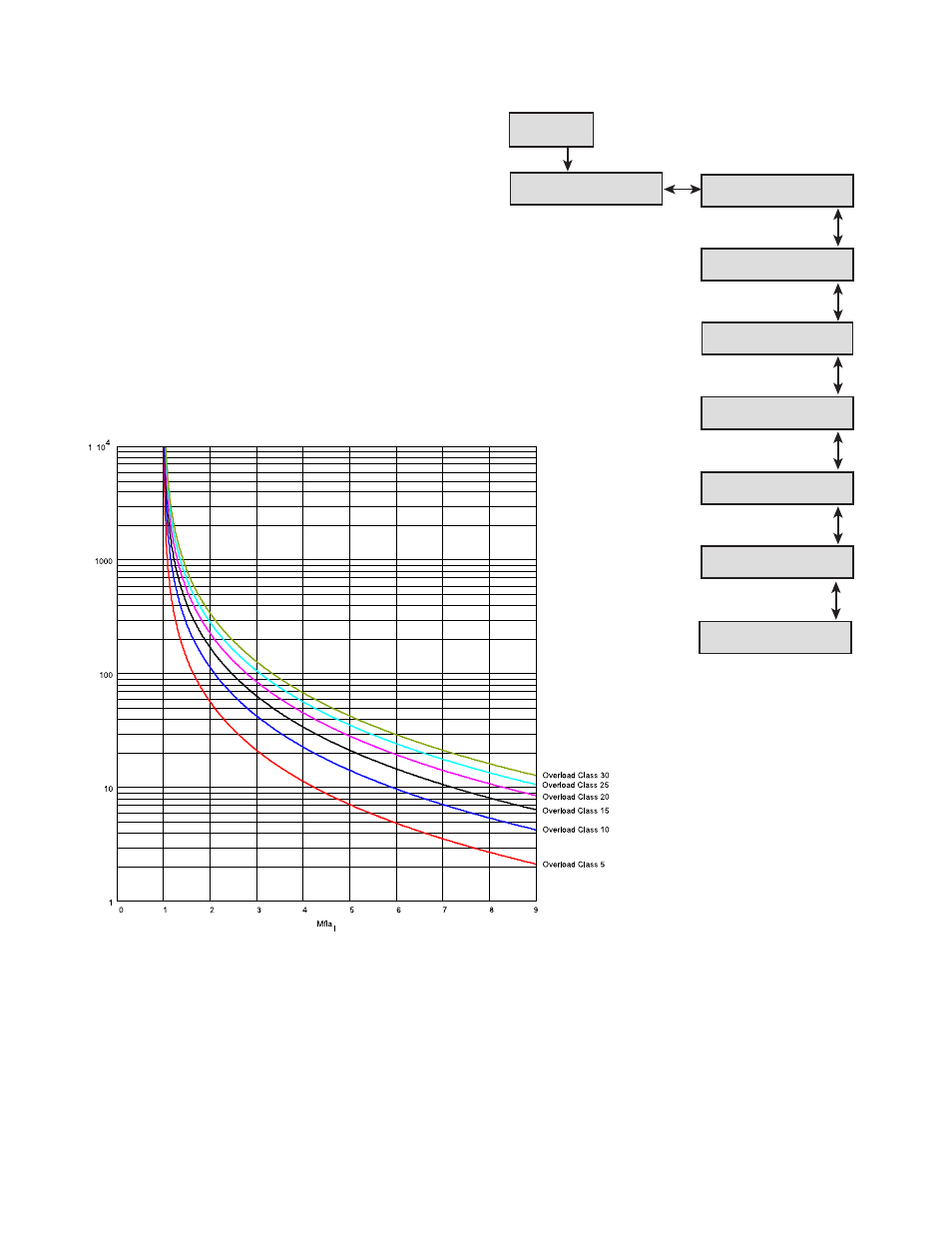

SP1.3 Overload Class: Choose the motor protection overload class,
range from 5-30.
Ex: Overload Class 10 will trip in 10 seconds at six times
FLA.
SP1.4 NEMA design: The motor design maximum allowed slip
(Select from Class A through F).
SP1.5 Insulation Class: The motor insulation temperature class
(Select A, B, C, E, F, H, K, N or S).
SP1.6 Line Voltage Input: Applied Voltage
SP1.7 Line Frequency: The user may choose either 50 Hz or 60
Hz.
MENU
PAGE 1 BASIC
CONFIGURATION MOTOR FULL LOAD AMPS
: 200 AMPS
SERVICE FACTOR
: 1.15 X FLA
OVERLOAD
CLASS: 10
NEMA
DESIGN: B
INSULATION
CLASS: B
LINE VOLTAGE
INPUT: 4160 VOLTS
Range: 50 - 100% of Unit
MAX CURRENT AMPS
Increments of 1
Range: 1.00 - 1.3
Increments of 0.01
Range: 5 - 30
Increments of 5
Range: A - F
Range: A - S
Range: 100 - 7200
LINE FREQUENCY
HZ: 60
Range: 50 or 60
