MFP overview

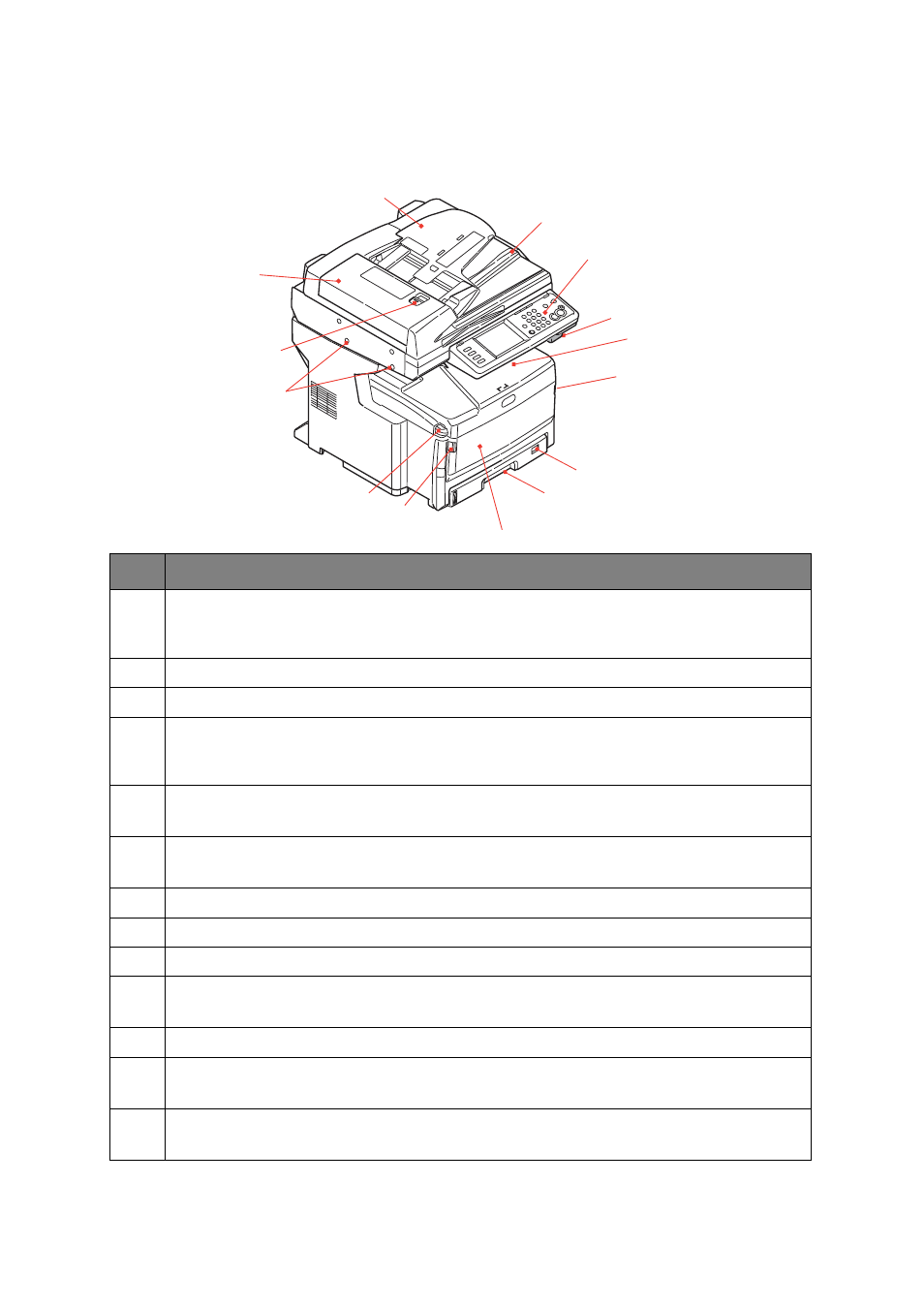

Front view
REF. DESCRIPTION
1 Output stacker, face down
Standard printed copy delivery point. Holds up to 250 sheets at 20-lb. US Bond (75 g/
m²).
2 Top cover release button
3 Multi purpose tray release handles
4 Multi purpose feeder (shown closed)
For heavier paper stocks, envelopes and other special media. Holds up to 100 sheets of
20-lb. US Bond (75 g/m²) paper.
5 Paper tray
Holds up to 300 sheets of 20-lb. US Bond (75 g/m²) paper.
6 Paper size dial
Set to paper size loaded in tray.
7 Scanner locks
8 Automatic Document Feeder (ADF) cover release button
9 ADF unit
10 ADF paper tray
Holds up to 50 sheets of letter size paper or 25 sheets of tabloid size paper.
11 Document cover
12 Operator panel
With touch screen display, status LEDs and operator buttons.
13 Scanner release lever
Pull the release lever towards you until you hear a click, then gently raise the scanner.
1
3
2
3
5
4
6
9
10
11
8
7
12
13
