Caution
Reference
$
Section 2-1
3-1
Description of Parts and Settings
Before getting to the operation, confirm the names and functions of parts. Also set
the DIP switches on the NT600S.
On unpacking the NT600S, check its external appearance and confirm that there
is no damage. Also confirm that there is no abnormal noise on shaking the unit
lightly. The product may malfunction if it is damaged.
3-1-1
Description of Parts

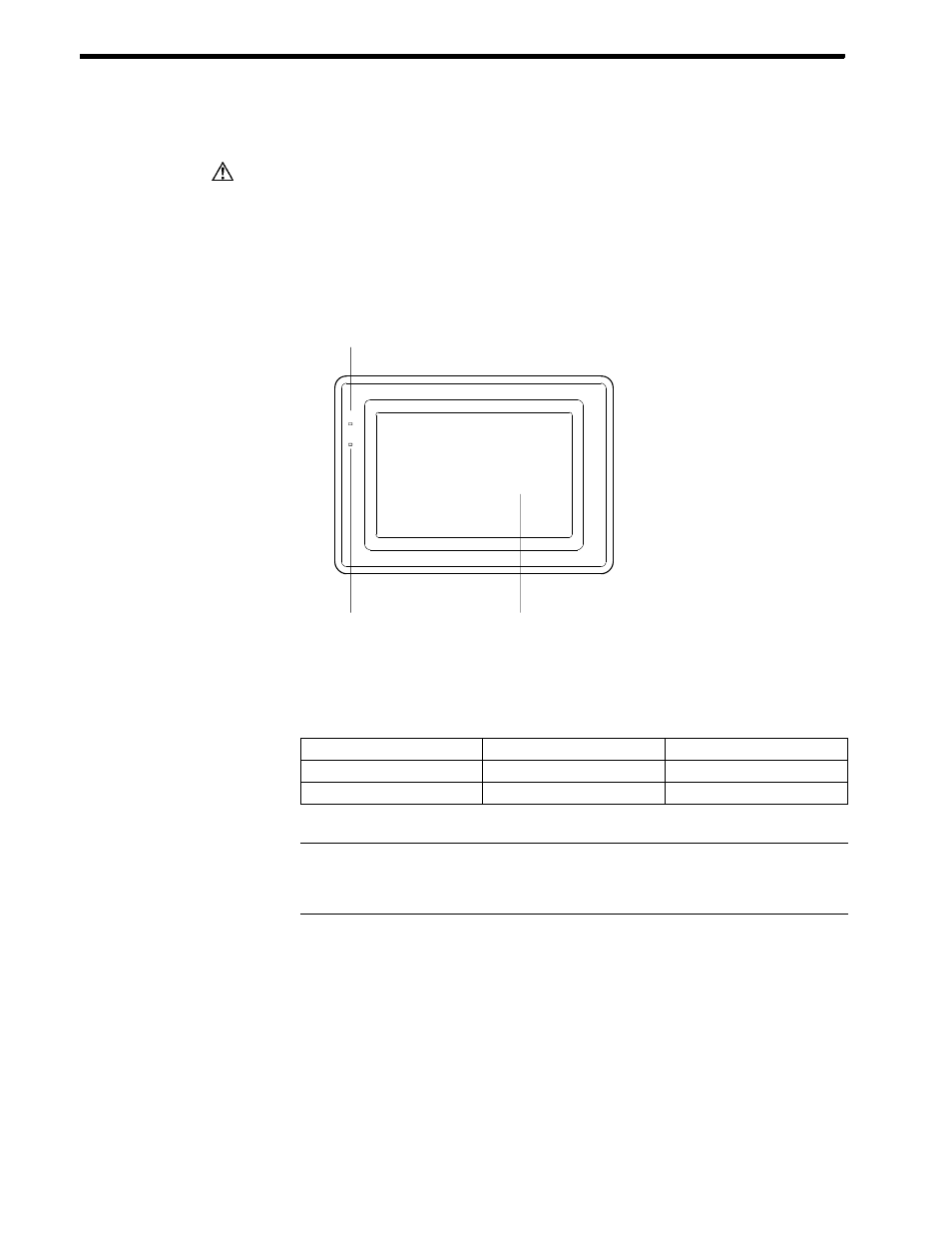

Front View
RUN LED
Lit when the unit is in
RUN mode.
Flashes orange when the
battery voltage is low.
POWER LED
Lit when the power is supplied.
Display
An STN LCD screen with a backlight or an
EL screen. The whole area of the screen is
a touch panel which works as an input
device.
POWER
RUN
Battery Normal
Battery Abnormal
RUN mode
Lit in green
Lit in orange
Other modes
Not lit
Lit in red
The NT600S comes in two body colors.
NT600S-ST121/ST211-EV
: beige
NT600S-ST121B/ST211B-EV
: Black
