Omron NT-series Programmable Terminal V022-E3-1 - Manual (Page 295)

.(
Appendix H

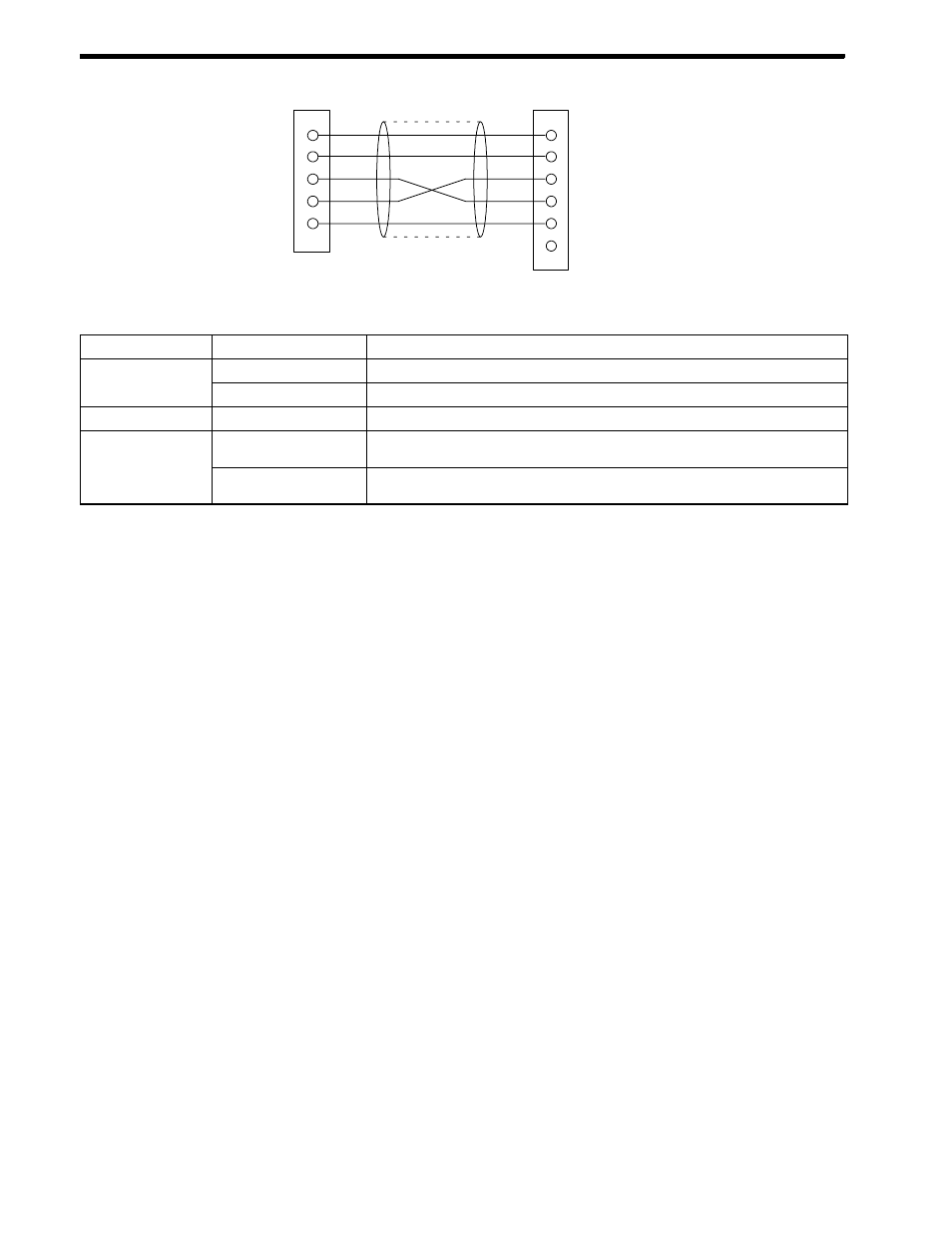

With a 9-pin Connector
Shielding
wire
2
3
4
5
9
1
2
3
7
8
5
SD
RD
RS
CS
SG
RD
SD
RS
CS
SG
Personal
computer
side
PT tool
connector side
When making the connection cable, use the following recommended parts.
Name Model Remarks
Connector XM2D-0901 9-pin type, made by OMRON (personal computer side)
XM2A-0901 9-pin type, made by OMRON (PT side)
Connector cover XM2S-0911 9-pin type, made by OMRON (two)
Cable AWG28 5P
IFVV-SB
Multi-core shielded cable (FUJIKURA, Ltd.)
CO-MA-VV-SB
5P
28AWG
Multi-core shielded cable (HITACHI cable, Ltd.)
