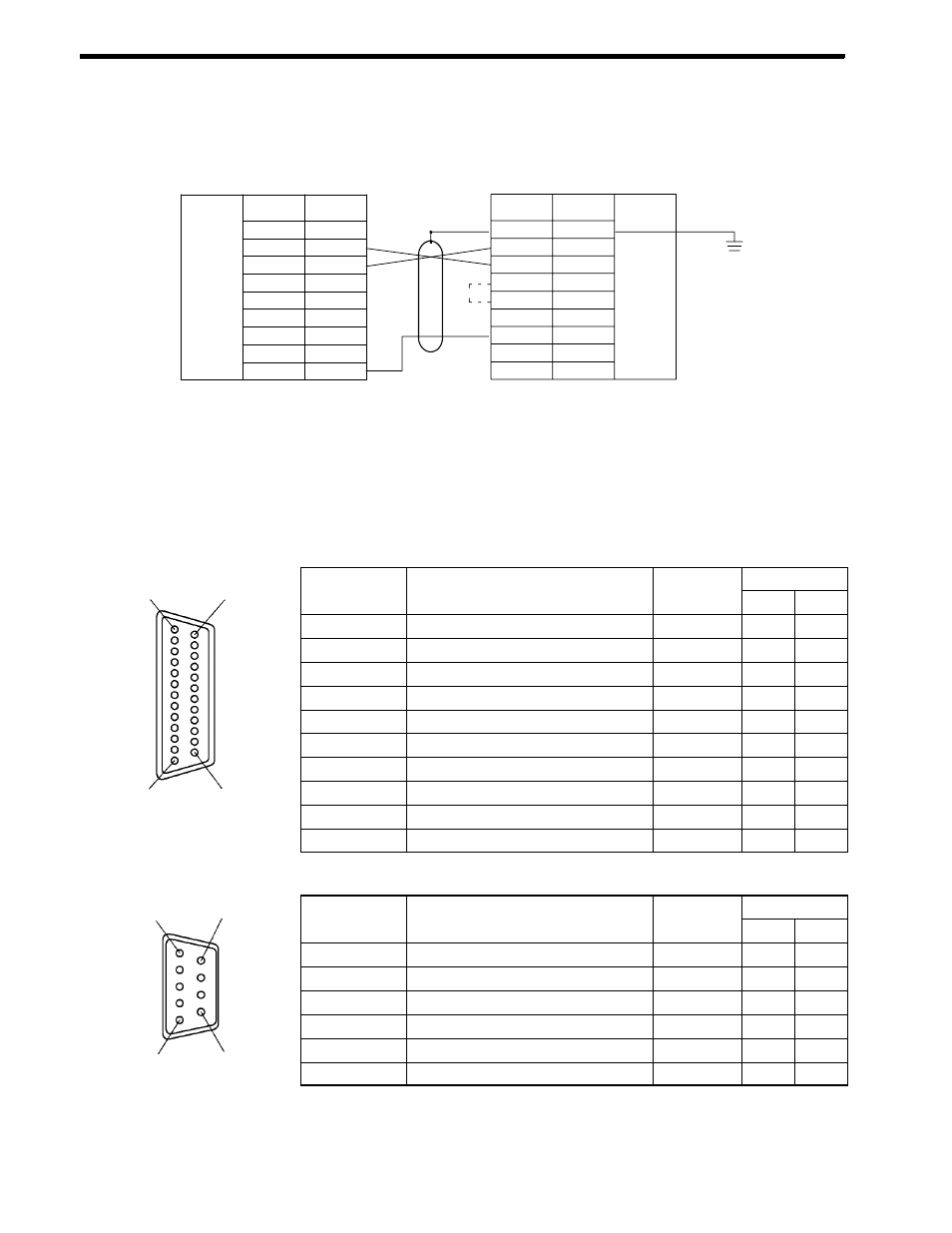

Appendix E
Wiring Connections
The NT600S does not use pin 4 (RS) or pin 5 (CS). Short the RS and CS pins of the PC connector together (see
in the figure).
Connect the cable shielding wire to the connector cover and pin 1 at both the NT600S and CPU ends of the cable.
1
2
3
4
5
6
7
8
9
Pin
number Abbrevi-
atioon
FG
SD
RD
RS
CS
+5V
--
--
SG
RS-232C
interface
Shielding
wire
NT600S PC CPU
RS-232C
interface
Pin
number Abbrevi-
atioon
1
2
3
4
5
6
7
--
--
FG
SD
RD
RS
CS
--
SG
--
--
9-pin connector
Connecting an NT600S to a CVM1/CV-Series Host Link Unit
CVM1/CV-Series Host Link Unit Connector Specifications
Applicable host link unit: CV500-LK201
Electrical characteristics: Complies with EIA RS-232C
Signal direction: Signal input and output is relative to the PC.
Communication Port 1 (25-pin Connector)
Connector Pin
Signal Name Abbreviation
Signal Direction
Connector Pin
No.
Signal Name Abbreviation
Input Output
Connector cover Frame ground FG -- --
1 Frame ground FG -- --
2 Send data SD (TXD)
3 Receive data RD (RXD)
4 Request to send RS (RTS)
5 Clear to send CS (CTS)
7 Signal ground SG (GND) -- --
8 Carrier detected CD (DCD)
14 Optical connector +5V +5V
20 Data terminal ready ER (DTR)
Communication Port 2 (9-pin Connector)
Connector
Signal Name Abbreviation
Signal Direction
Connector
Pin No.
Signal Name Abbreviation
Input Output
Connector cover Frame ground FG -- --
2 Send data SD (TXD)
3 Receive data RD (RXD)
4 Request to send RS (RTS)
5 Clear to send CS (CTS)
9 Signal ground SG (GND) -- --
