. 3
Section 5-2
PC ladder program

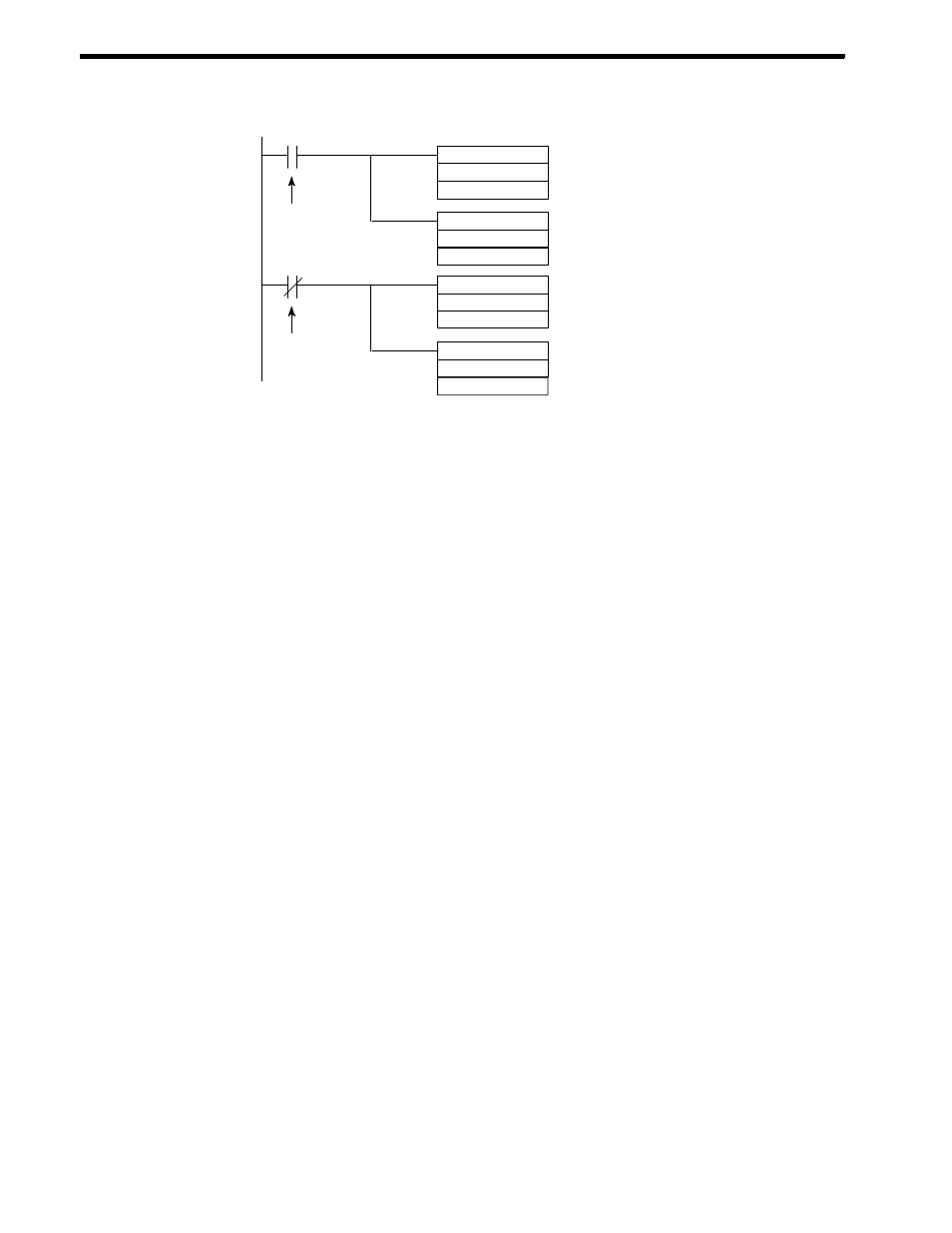

Create a PC ladder program as follows:
@MOV(21)
#0004
09000
@MOV(21)
#0010
(1)
Copy type, copy destination memory table #
Copy destination word
Copy source memory table #
Copy source word
@MOV(21)
#0004
09000
@MOV(21)
#0011
(2)
Copy type, copy destination memory table #
Copy destination word
Copy source memory table #
Copy source word
Error flag
Error flag
101
102
101
102
Program operation
(1) When an error occurs (bit 09000 turns ON), the NT600S displays the mes-
sage “Error”.
(2) When the error is cleared (bit 09000 turns OFF), the NT600S display mes-
sage reverts to “Normal”.
