Installation
Runco LS-10d Installation/Operation Manual 35
PRE
L
IMINAR
Y
SCART RGBS Source Connections: Connect the green, blue and red outputs from
your SCART source to the Component/SCART input on the DHD Controller. Connect the
sync output from your SCART source to the Video 1 input on the DHD Controller. See
Figure 3-11.

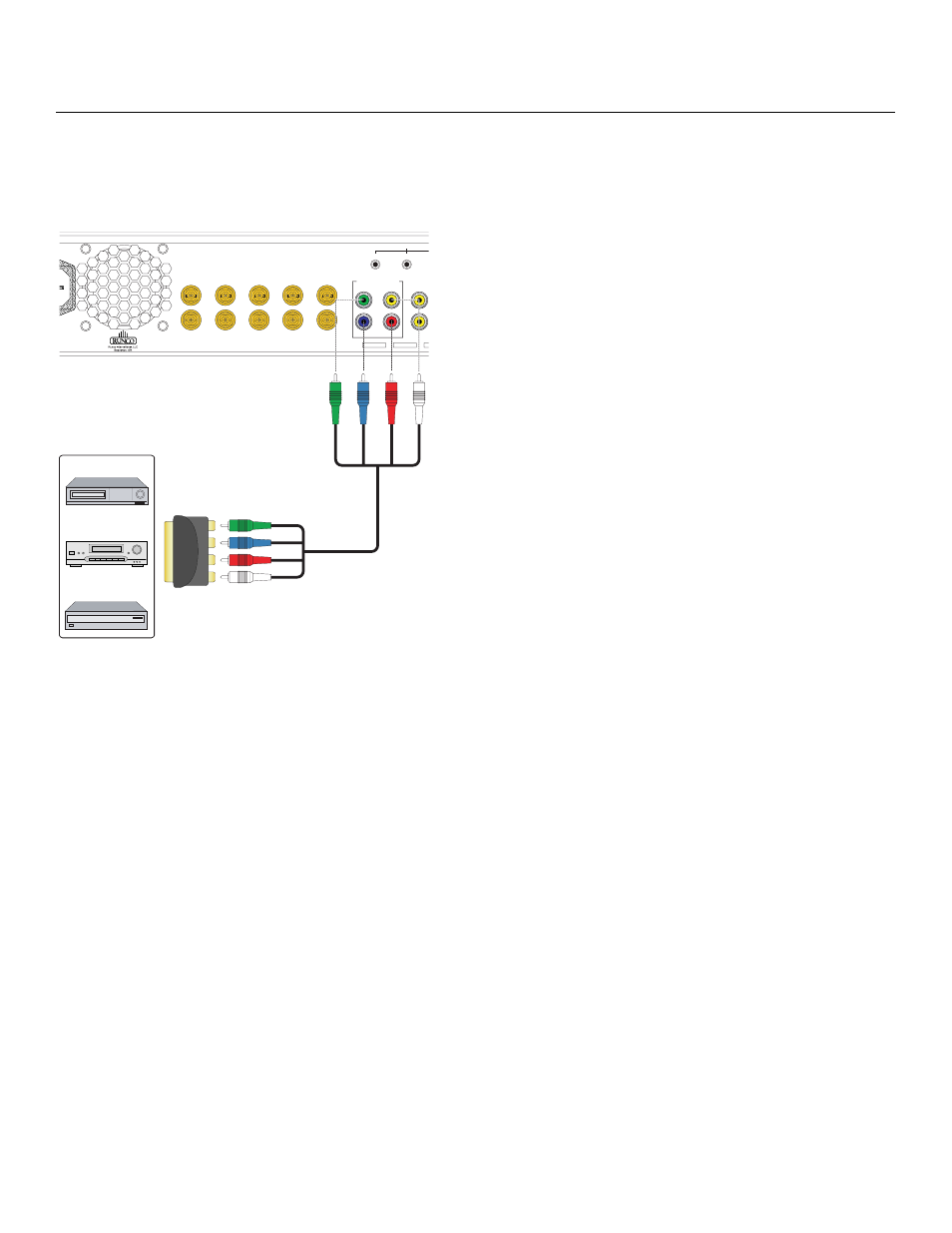

Figure 3-11. SCART RGBS Source Connections
Video 1 Y Video 2
Video 3 Pr Pb
Component / SCART
Y
G Pb
B
Pr
R
Pr
R
Pb
B
Y
G
TRIGGERS
1 2
H V
HD1
HD2
H V
Gaming Console
VCR
DVD/DTV STB
SCART-to-RGBS
adapter
Green Blue Red Sync
Green
Blue
Red
Sync
