3. Installation
RuggedCom® RuggedSwitch® 25 RSG2288 Installation Guide Rev 108
the optics. Depress both latches simultaneously and gently pull the module from the chassis. The
module should be immediately stored in an ESD-safe environment.

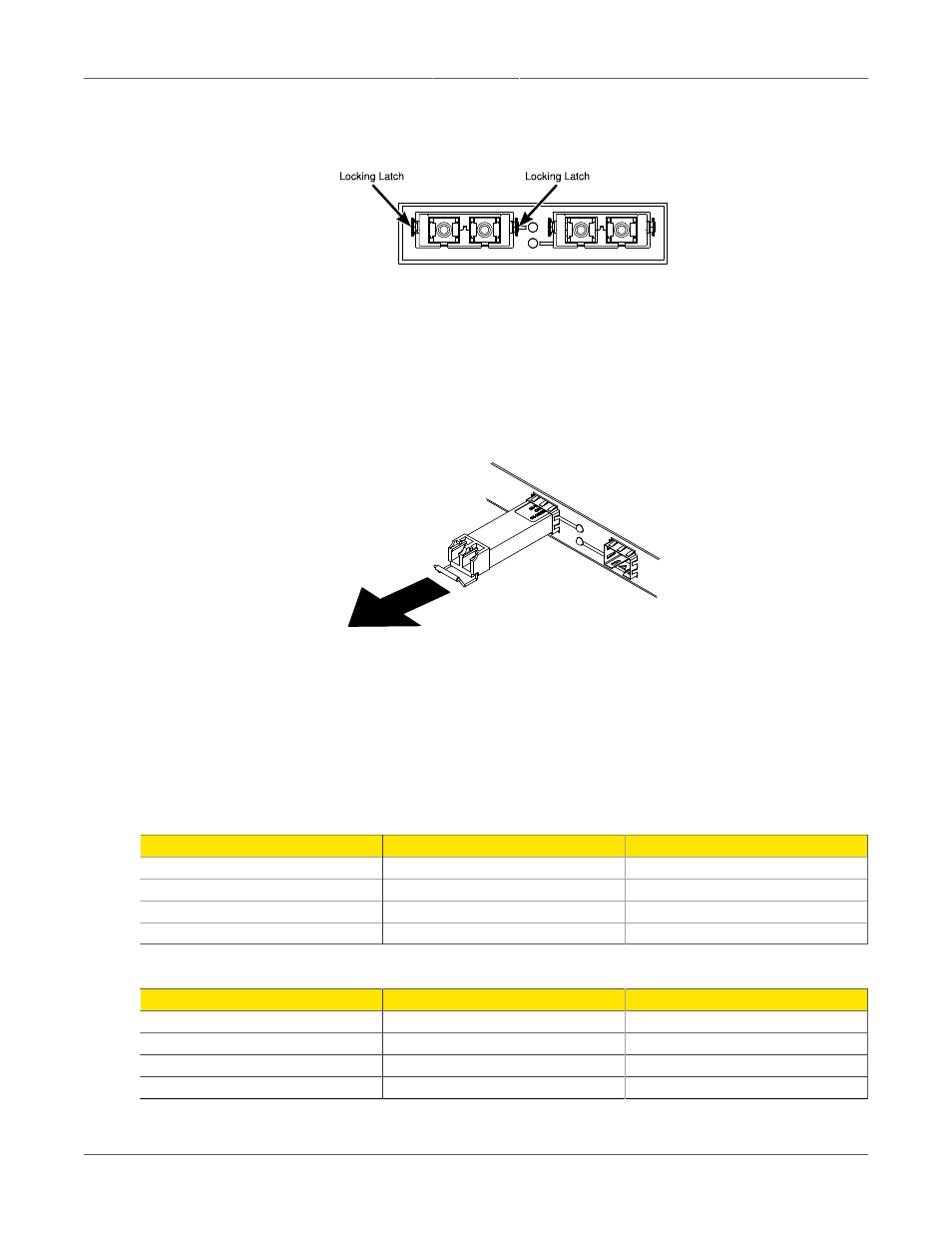

Figure 3.27. Locking Latch Location on GBIC Optical Modules
3.2.8.3. SFP Module Removal
SFP Modules are removed using the metal bail latch located on the top of the module. To remove
the SFP module, disconnect any cables and replace the dust cover to protect the optics. Grasp
the bail latch and gently pull outwards to unlock and remove the module. Immediately store the
module in an ESD-safe environment.
Figure 3.28. SFP Removal
3.3. Precision Time Protocol (PTP) Card and IEEE1588 v2
The Precision Time Protocol (PTP) card option for the RSG2288 adds the ability to provide time
synchronization via IRIG-B, and to synchronize to an external IRIG-B source or to the GPS
network. The time synchronization capabilities of the RSG2288, both with and without the PTP
card option, are summarized below:
Synchronization Source Without PTP Card With PTP Card
NTP Yes Yes
IEEE 1588 v2 Yes Yes
IRIG-B PWM Yes
GPS Yes
Table 3.5. RSG2288 Time Synchronization Sources
Synchronization Service Without PTP Card With PTP Card
NTP Yes Yes
IEEE 1588 v2 Yes Yes
IRIG-B AM Yes
IRIG-B PWM Yes
Table 3.6. RSG2288 Time Synchronization Services
