3. Installation
RuggedCom® RuggedSwitch®
19
RSG2288 Installation Guide Rev 108

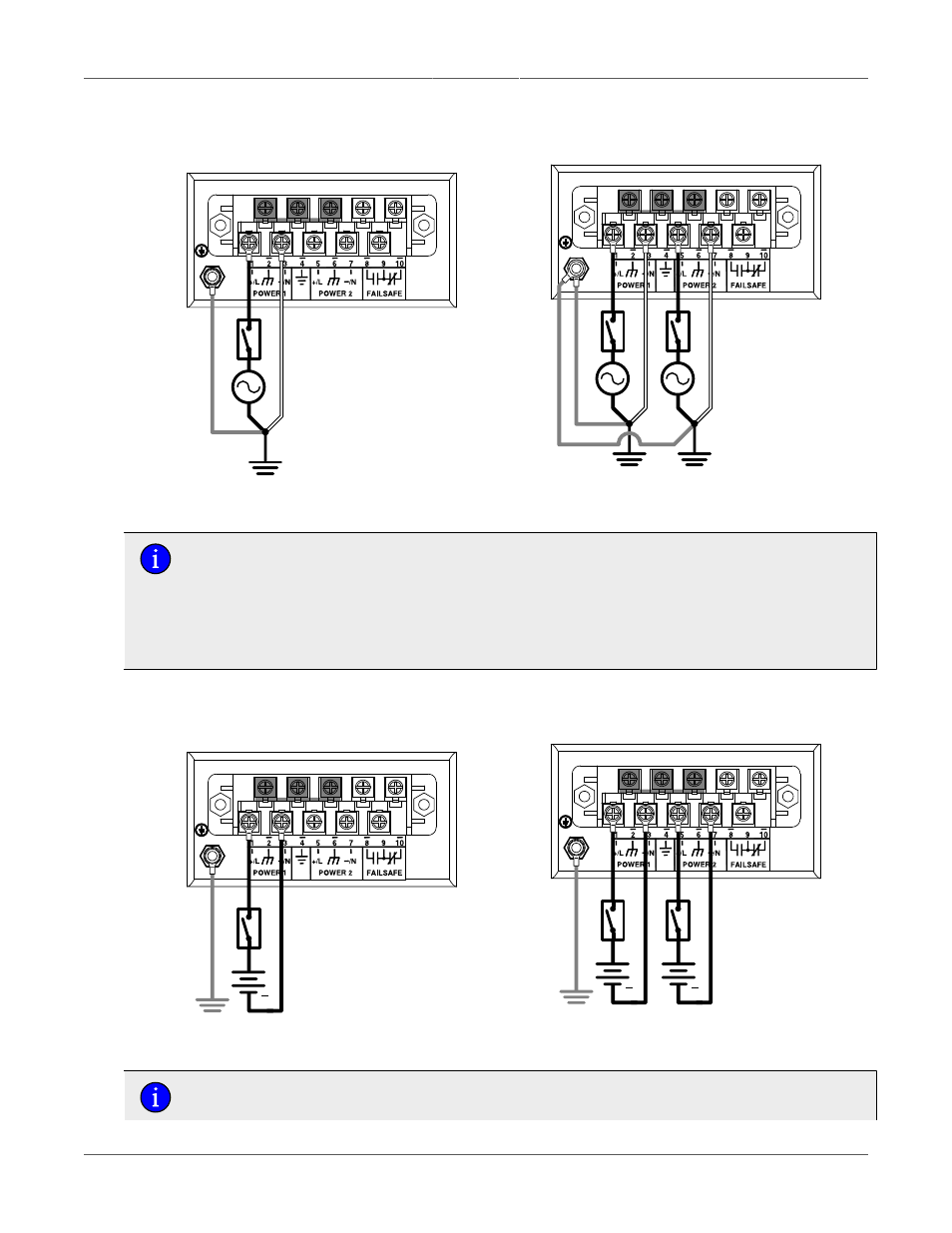

3.2.3.1. AC Power Supply Wiring Examples
Figure 3.15. AC Single Power Supply Wiring Example
Figure 3.16. AC Dual Redundant
Power Supply Wiring Example
• 100-240VAC rated equipment: A 250VAC appropriately rated circuit breaker must
be installed.
• Equipment must be installed according to the applicable country wiring codes.
• When equipped with two HI voltage power supplies, independent AC sources can
be used to power the product for greater redundancy.
3.2.3.2. DC Power Supply Wiring Examples
+
Figure 3.17. DC Single Power Supply Wiring Example
+
+
Figure 3.18. DC Dual Redundant
Power Supply Wiring Example
• 125/250VDC rated equipment: A 300VDC appropriately rated circuit breaker must
be installed.
