3.2.2. Fixed Fiber Transceivers

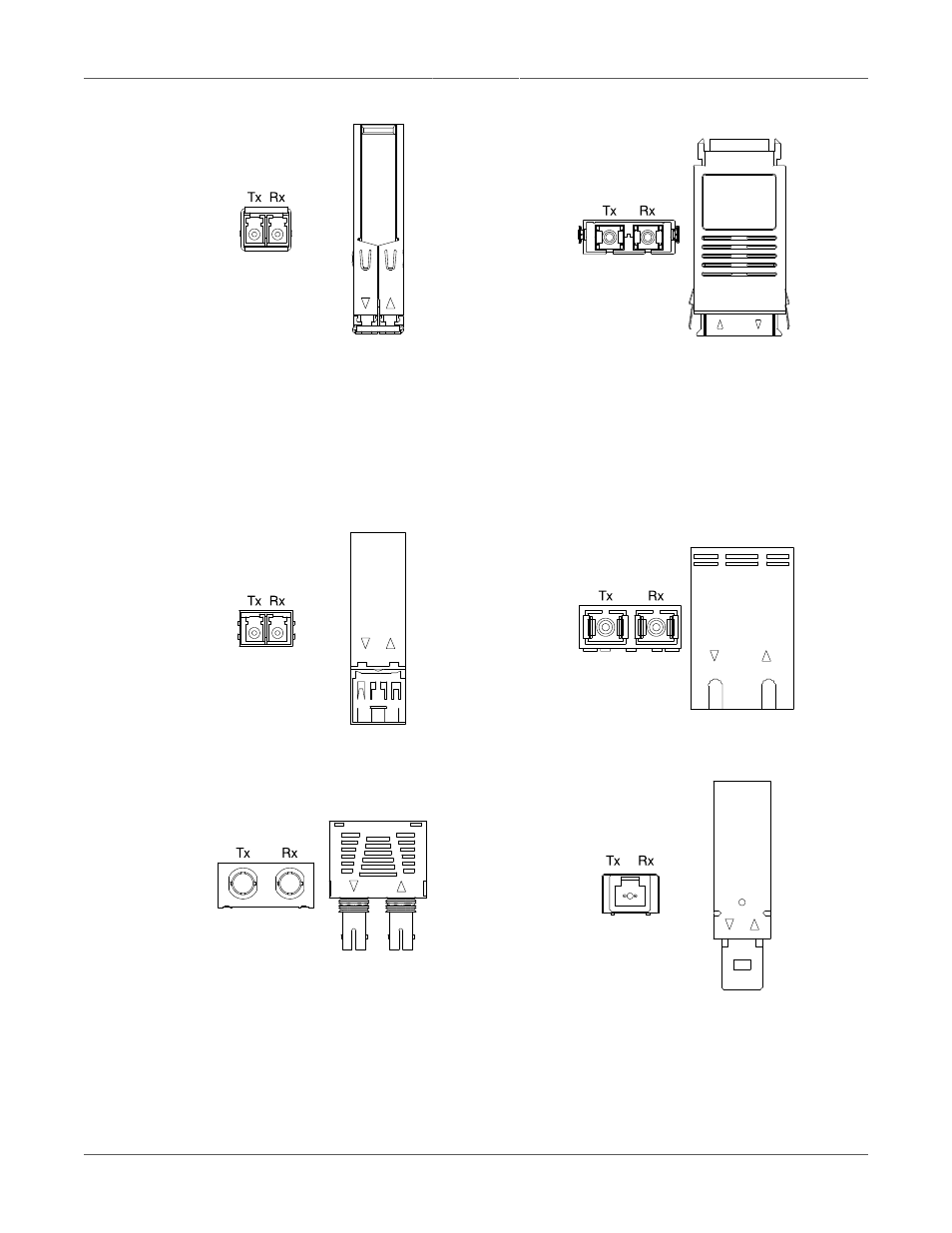

The following figures show front and top views of the fixed fiber transceiver modules supported
by RuggedSwitch®. Note that when the module daughter card is installed in the unit, most of the
connector body as shown in the illustrations is not visible.
Figure 3.8. 1000LX LC connector
Figure 3.9. 1000LX SC connector
Figure 3.10. 100FX/1000LX ST connector
Figure 3.11. MTRJ 100FX connector
3.2.3. Power Supply Wiring And Grounding
The RSG2288 supports dual redundant power supplies, Power Supply 1 (PS1) and Power Supply
2 (PS2).
