3. Installation
RuggedCom® RuggedSwitch® 20 RSG2288 Installation Guide Rev 108
• A circuit breaker is not required for 12-24 or 48 VDC rated power supplies.
• For dual DC power supplies, separate circuit breakers must be installed and
separately identified.
• Equipment must be installed according to the applicable country wiring codes.
3.2.3.3. AC and DC Power Supply Wiring Example
+

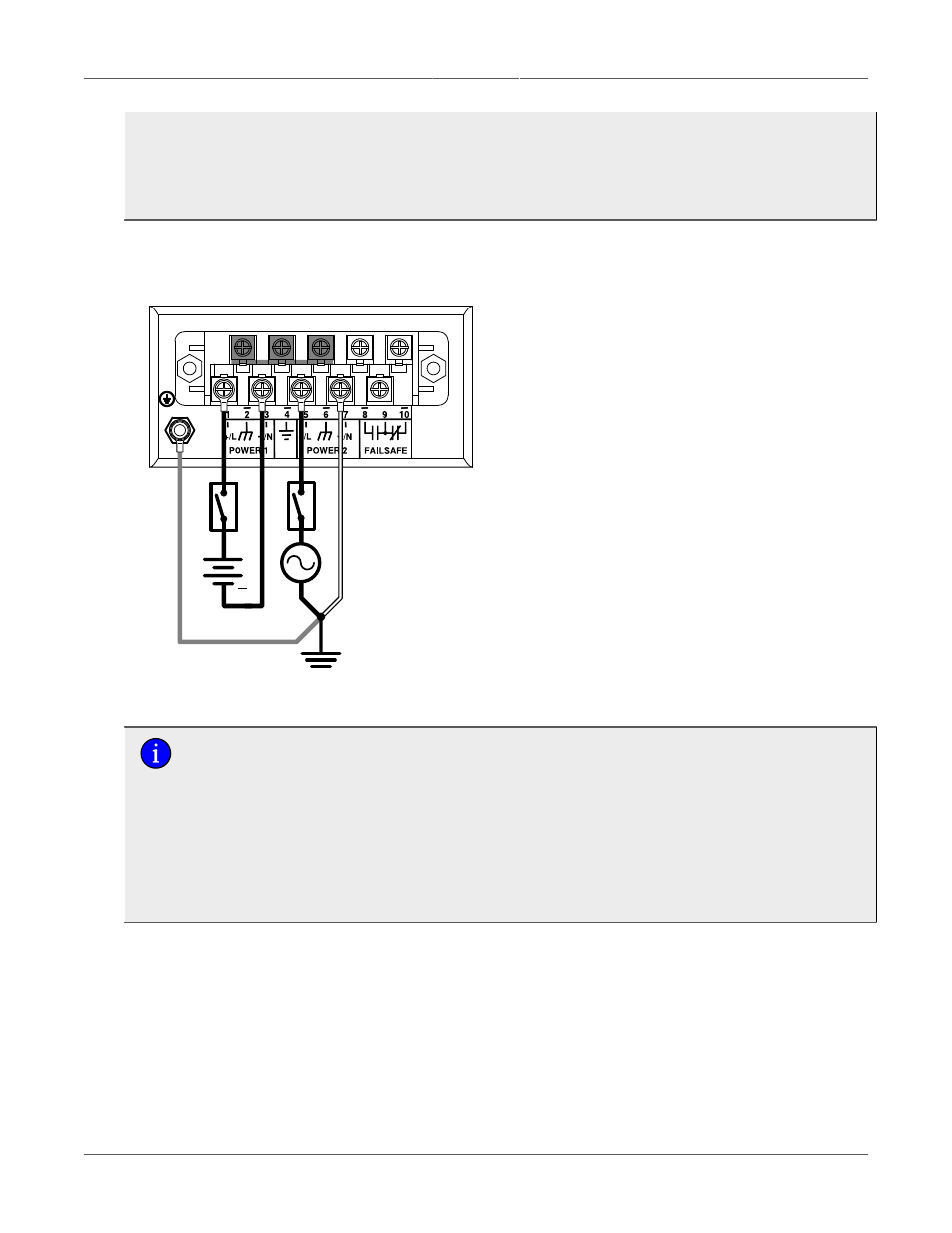

Figure 3.19. DC and AC Power Supply Wiring Example
• 125/250VDC rated equipment: A 300VDC appropriately rated circuit breaker must
be installed.
• 100-240VAC rated equipment: A 250VAC appropriately rated circuit breaker must
be installed.
• A circuit breaker is not required for 12-24 or 48VDC rated power supplies.
• Separate circuit breakers must be installed and separately identified.
• Equipment must be installed according to the applicable country wiring codes.
3.2.4. Dielectric Strength (HIPOT) Testing
For dielectric strength (HIPOT) testing in the field, users must remove the metal jumper located
across terminals 2, 4, and 6 of the power supply terminal block. This metal jumper connects
transient suppression circuitry to chassis ground and must be removed in order to avoid damage
to transient suppression circuitry during HIPOT testing. The figure below shows the proper HIPOT
test connections and should be followed to avoid damage to the device.
