19-Port Modular Managed Ethernet Switch with Gigabit Uplink Ports, 128-bit Encryption

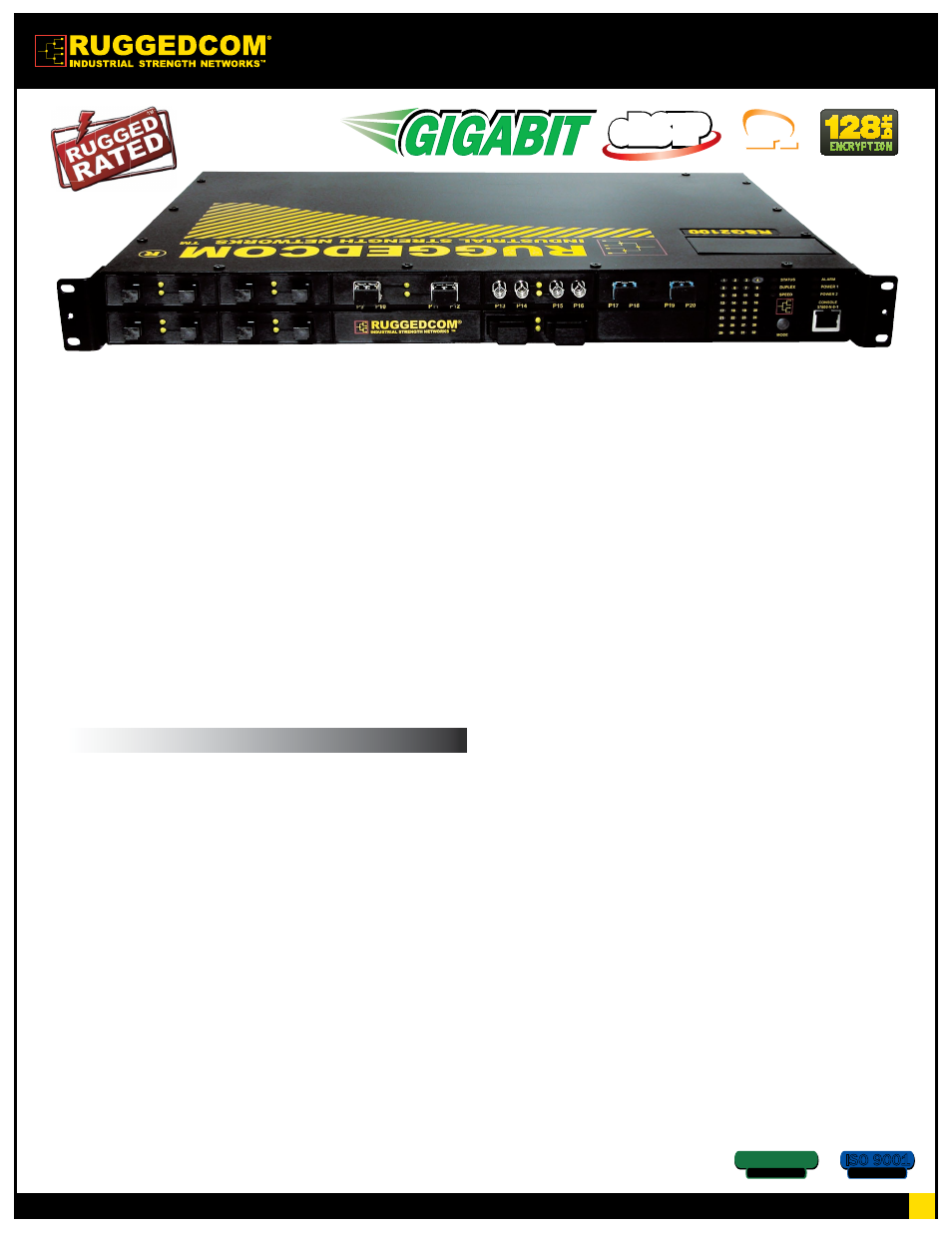

The RuggedSwitch
®
RSG2100 is an industrially hardened, fully
managed, modular Ethernet switch, specifically designed to
operate reliably in electrically harsh and climatically demanding
utility substation and industrial environments. The RSG2100’s
superior RuggedRated™ hardware design coupled with the
embedded Rugged Operating System (ROS
®
) provides improved
system reliability and advanced cyber security and networking
features making it ideally suited for creating secure Ethernet
networks for mission-critical, real-time control applications.
The RSG2100’s modular flexibility offers 10BaseFL/100BaseFX
/1000BaseX fiber and 10/100/1000BaseTX and micro-D copper
port combinations. Optional front or rear mount connectors make
the RSG2100 highly versatile for any application and can support
multiple fiber connectors (ST, MTRJ, LC, SC, Micro-D) without
loss of port density. The RSG2100 is packaged in a rugged
galvanized steel enclosure with industrial grade DIN, panel, or
19” rack-mount mounting options.
Features and Benefits
Ethernet Ports
Up to 3-Gigabit Ethernet ports - copper and/or fiber
Up to 16-Fast Ethernet ports - copper and/or fiber
2 port modules for tremendous flexibility
Non-blocking, store and forward switching
Supports many types of fiber (Multimode, singlemode,
bi-directional single strand)
Long haul optics allow Gigabit distances up to 70km
Multiple connector types (ST, MTRJ, LC, SC, RJ45, micro-D)
Cyber Security Features
Multi-level user passwords
SSH/SSL (128-bit encryption)
Enable/disable ports, MAC based port security
Port based network access control (802.1X)
VLAN (802.1Q) to segregate and secure network traffic
RADIUS centralized password management
SNMPv3 authentication and 56-bit encryption
RuggedRated™ for Reliability in Harsh Environments
Zero-Packet-Loss™ Technology
Meets IEEE 1613 (electric utility substations)
Class 1 with copper ports or Class 2 with all fiber ports
Exceeds IEC 61850-3 (electric utility substations)
Exceeds IEC 61800-3 (variable speed drive systems)
Exceeds IEC 61000-6-2 (generic industrial)
Exceeds NEMA TS-2 (traffic control equipment
Exceeds EN 50121-4 (railway applications)
Exceeds EN 50155 (equipment on-board rolling stock)
-40°C to +85°C operating temperature (no fans)
Conformal coated printed circuit boards (optional)
18 AWG galvanized steel body
Hazardous Location Certification: Class 1 Division 2
Rugged Operating System (ROS
®
) Features
Simple plug and play operation - automatic learning,
negotiation, and crossover detection
MSTP 802.1Q-2005 (formerly 802.1s)
RSTP (802.1W) and Enhanced Rapid Spanning Tree
(eRSTP™) network fault recovery (<5ms)
Quality of Service (802.1P) for real-time traffic
VLAN (802.1Q) with double tagging and GVRP support
Link aggregation (802.3ad)
IGMP Snooping for multicast filtering
Port Rate Limiting and Broadcast Storm Limiting
Port configuration, status, statistics, mirroring, security
SNTP time synchronization (client and server)
Industrial automation features (e.g. Modbus)
Management Tools
Web-based, Telnet, CLI management interfaces
SNMP v1/v2/v3
Remote monitoring (RMON)
Rich set of diagnostics with logging and alarms
Universal Power Supply Options
Fully integrated, redundant (optional) power supplies
Universal high voltage range: 88-300VDC or 85-264VAC
Low voltage ranges: 24VDC(10-36VDC),
48VDC (36-72VDC)
Screw or pluggable terminal blocks
CSA/UL 60950 safety approved to +85°C
