Chapter 3 How to Set Your Re:control M207
27

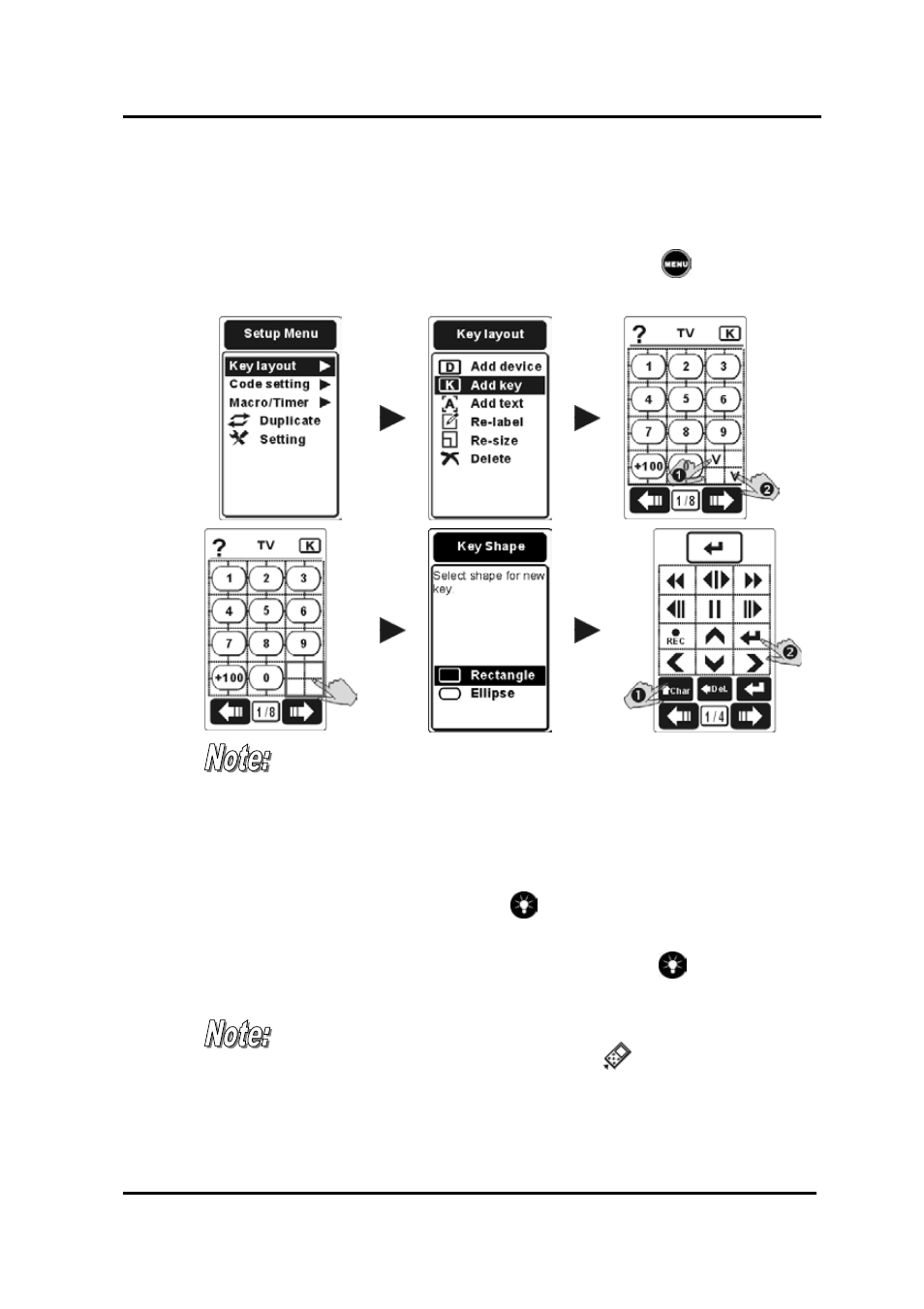

4. Please choose two points from the blocks on LCD. A “v” sign will
appear where you tapped. After you determine the second point, the
key frame will show up on the screen automatically. Tap the frame to
confirm the location.
If you want to relocate the points, you can press the
button to
quit.
a.
The size of the key will depend on the points you choose.
b.
You cannot setup a soft key that will overlap the adjacent
keys.
5. Please select the shape for the new soft key. There are two choices
for you: Rectangle and Ellipse. You can confirm your selection by
tapping the soft key or pressing the
button.
6. After deciding the location, please name the key. (Please refer to
page 22 for name the key.) And then press the button to
confirm your decision.
You can add new keys in every device together then input the
IR codes at the same time. You can use “
Learning” function
to get the corresponding remote code for your newly-added soft
key at one time. Please refer to Chapter 3.8 Learning (P.37) for
more information.
