Names of Things and What They Do

Rear Panel

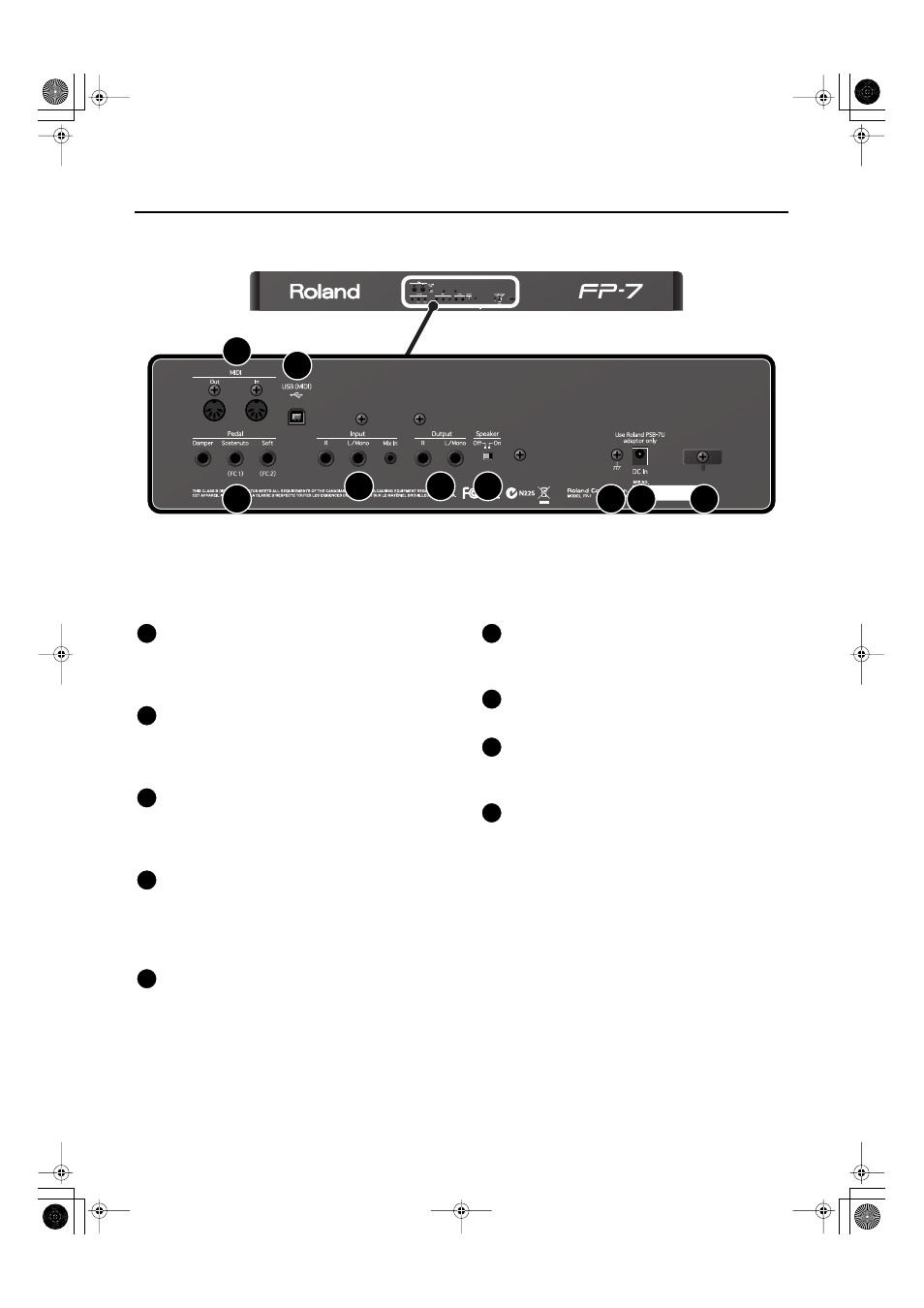

These connectors are located at the rear panel.

MIDI Connectors

You can connect these to external MIDI devices to
transfer performance data (p. 147).

USB (MIDI) Connector

You can connect this to your computer for transferring
performance data (p. 143).

Pedal Jacks

Accepts connection of the supplied pedal (DP Series), or
other suitable pedals (p. 21).

Input Jacks

Here you can connect an audio device or another
electronic musical instrument, and listen to the connected
device through the FP-7’s speakers (p. 139).

Output Jacks

You can connect external speakers here to reproduce the
FP-7’s sound (p. 138, p. 140).

Speaker Switch

This switch turns the internal speaker on/off (p. 138).

DC In Jack

Connect the supplied AC adaptor here (p. 18).

Cord Hook

Use this to fix in place the cord from the supplied AC
adaptor (p. 18).
