Maintenance and Troubleshooting
Runco VX-6000d Installation/Operation Manual 75
PRE
L
IMINAR
Y

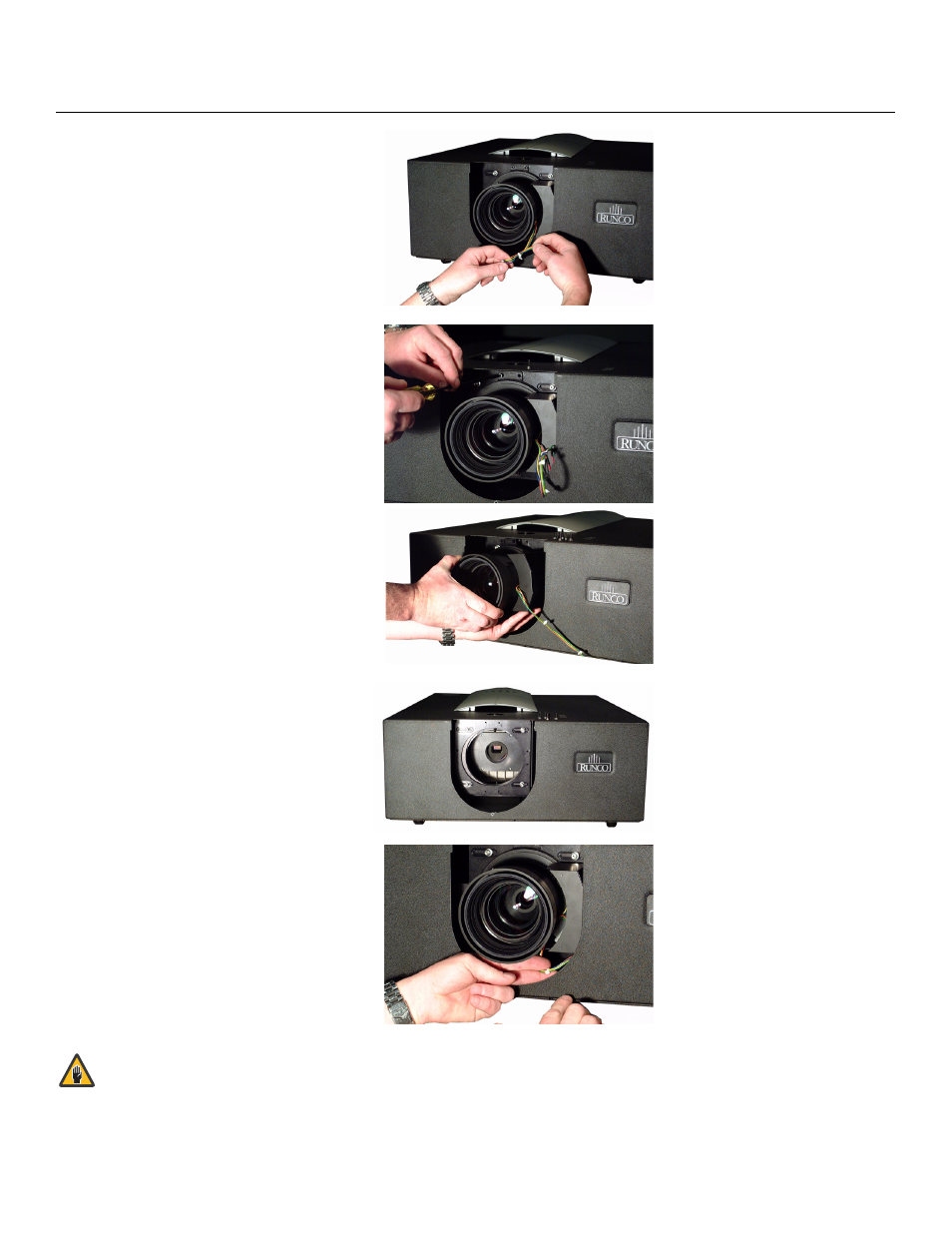

2. Locate and unplug the Motor Assembly
Connector. Note the connector
orientation for when you install the new
lens.
3. Locate the six 9/64” Hex Mounting
Screws (two each at 12 o'clock,
9 o'clock and 6 o'clock).
4. Remove the six Mounting Screws while
supporting the Lens Assembly; Lens
and Motor Assembly are now free.
5. Remove the Lens and Motor Assembly
by pulling forward and to the left in
order to clear the Projector chassis with
the Motor Assembly.
6. Install New Lens Assembly: Repeat
Steps 1 through 5 in reverse order.
Make sure to route the wire harness in its original position and away
from the moving lens stages and Motor Assembly, to prevent
unexpected disconnection or lens damage.
Caution
