Installation

Runco VX-6000d Installation/Operation Manual

41

PRE

L

IMINAR

Y

Connecting an External IR
Receiver to the DHD
Controller

If infrared signals from the remote control cannot reach the DHD Controller due to
excessive distance or obstructions such as walls or cabinet doors, you can connect an
external IR receiver to the DHD Controller to extend the range of the remote control. See
Figure 3-19.

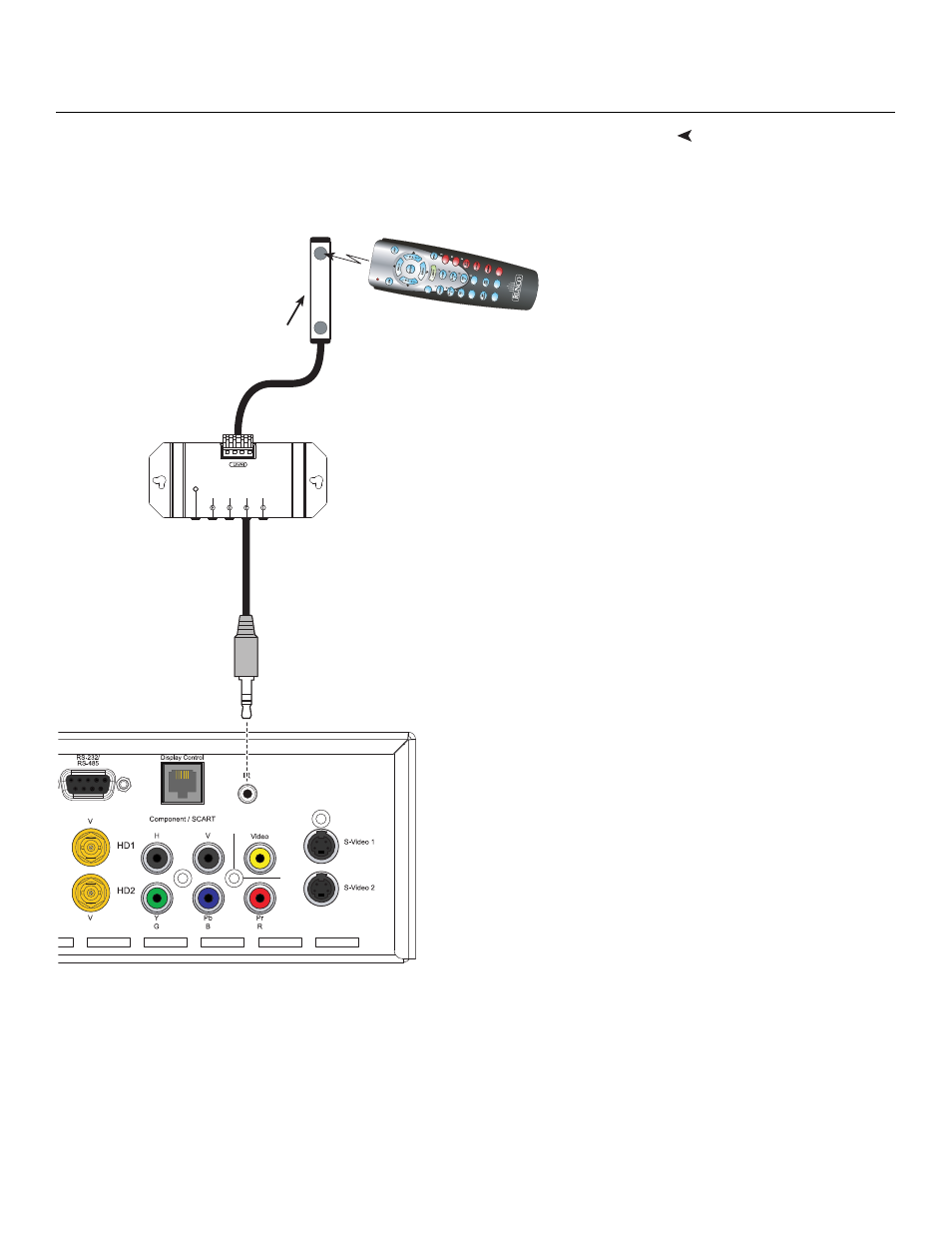

Figure 3-19. External IR Receiver Connection

CUST

1

CUST

2

SVC

HDM

I

1

HDM

I

2

EXIT

RETURN

16 :

9

4 : 3

(3.5-mm, mini

phono plug)

IR Sensor

IR Repeater

Remote Control
