Maintenance and Troubleshooting

Runco VX-6000d Installation/Operation Manual

PRE

IMINAR

5.2
Lens Replacement

Figure 5-1 shows the VX-6000d lens assembly.

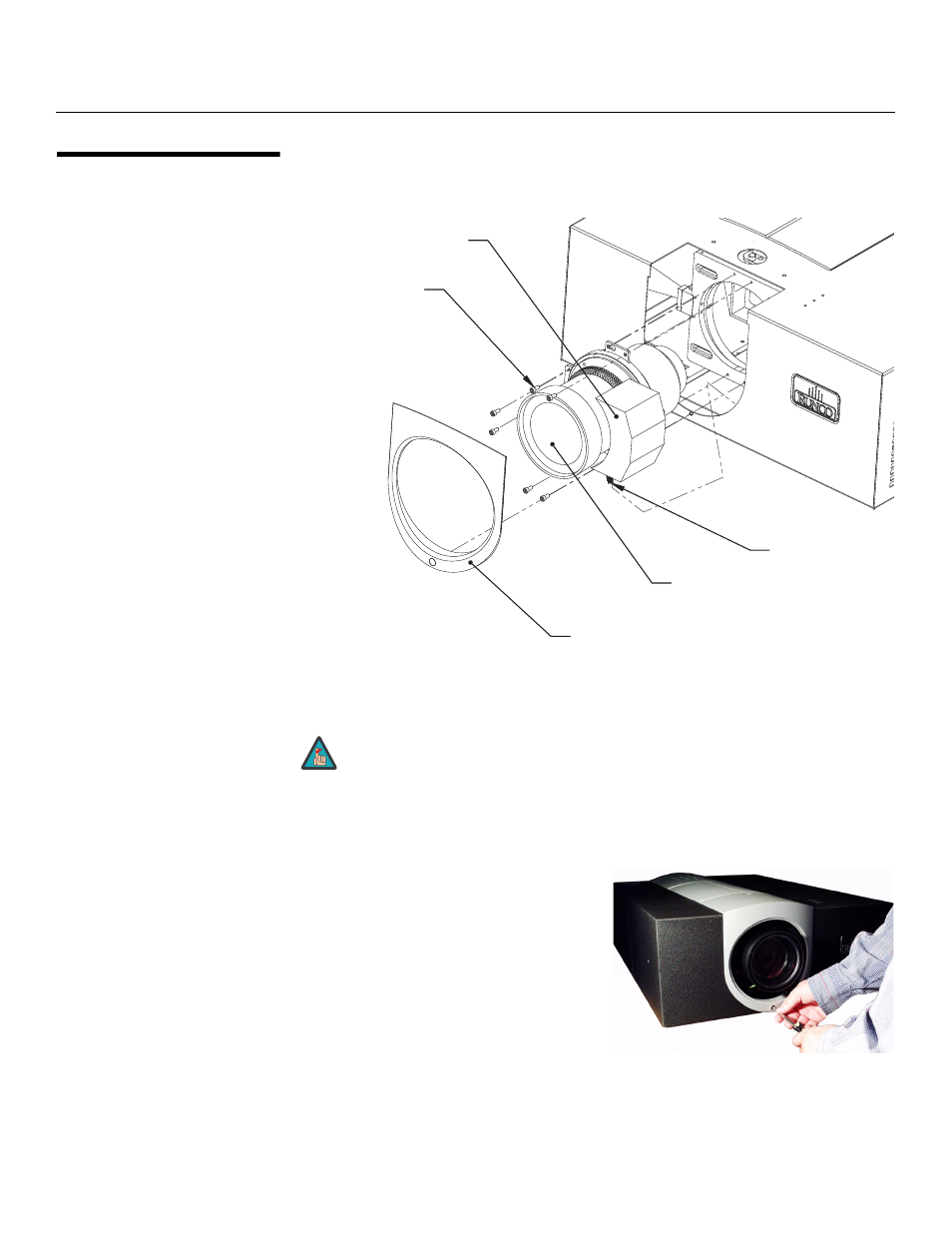

Figure 5-1. VX-6000d Lens Assembly Exploded View

Remove the Projector Front Jewelry by
loosening the captive #2 Phillips screw
below the lens.

Only trained, authorized Runco dealers should attempt to
remove or replace a lens. Please read this procedure
carefully before doing so.

Lens replacement is normally performed at the Runco factory. Field
replacement of lenses is generally only required if the projector is
re-installed in a new location or the lens has been damaged.

Front of Lens

Motor Assembly
Electrical Connector
and Harness

Projector Front Jewelry

Motor Assembly

9/64” Hex Screw (6x)

for Mounting Lens

Note
