Scart rgbs source connections, Figure 3-14 . scart rgbs source connections, 14. scart rgbs source connections – Runco CINEWIDE VX-6000D User Manual
Page 52: Pre l iminar y
36
Runco VX-6000d Installation/Operation Manual
PRE
L
IMINAR
Y
SCART RGBS Source Connections: Connect the green, blue and red outputs from
your SCART source to the Component/SCART input on the DHD Controller. Connect the
sync output from your SCART source to the Video input on the DHD Controller. See
Figure 3-14.

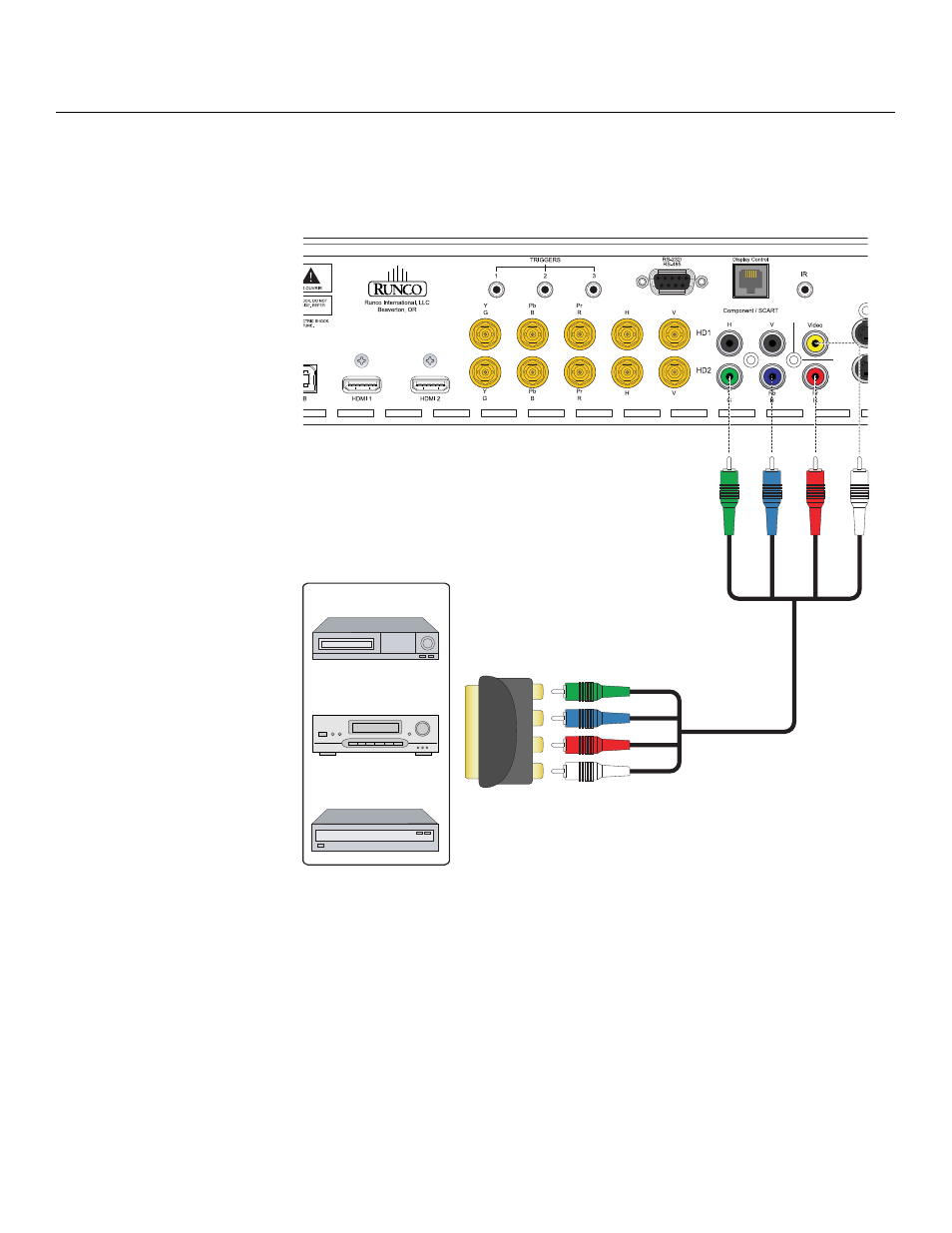

Figure 3-14. SCART RGBS Source Connections
Gaming Console
VCR
DVD/DTV STB
SCART-to-RGBS
adapter
Green
Blue
Red
Sync
Green
Blue
Red
Sync
