Installation

38

Runco VX-6000d Installation/Operation Manual

PRE

L

IMINAR

Y

RS-232 Controller

Connection

Use a straight-through, 9-pin RS-232 cable to connect a PC or control/automation
system (if present) to the RS-232 port on the DHD Controller; see Figure 3-16.

For more information about using this connection, refer to External Control on page 79.

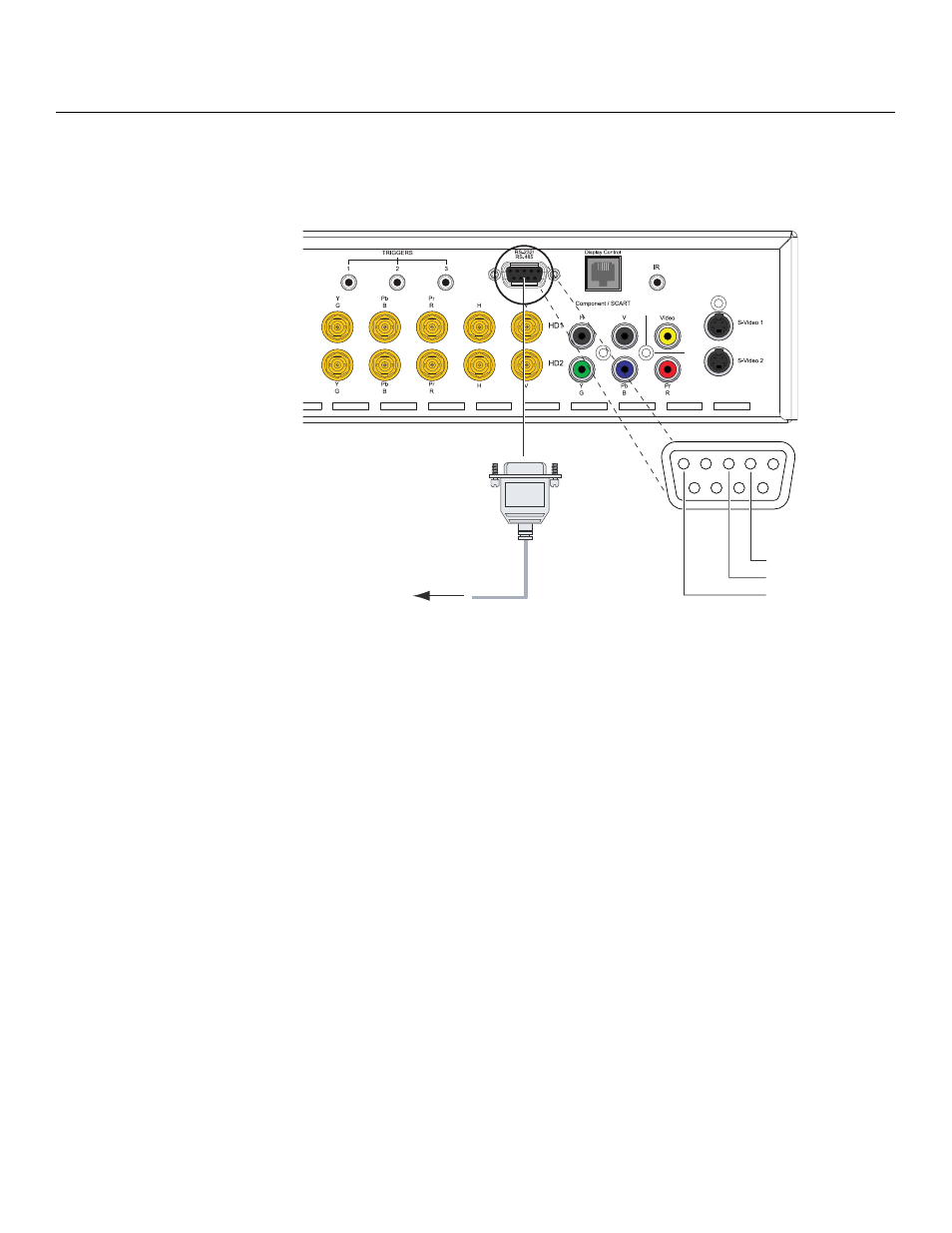

Figure 3-16. RS-232 Control System Connection

➤

1

2

3

4

5

7

8

9

6

to Automation/

Control System

or PC

2 Receive Data
3 Transmit Data
5 Ground

(none of the other pins are used)
