Installing the AutoScope
Lens Motor
(VX-6000d/CineWide with
AutoScope)
Figure 3-7 shows the VX-6000d/CineWide with AutoScope motor assembly.

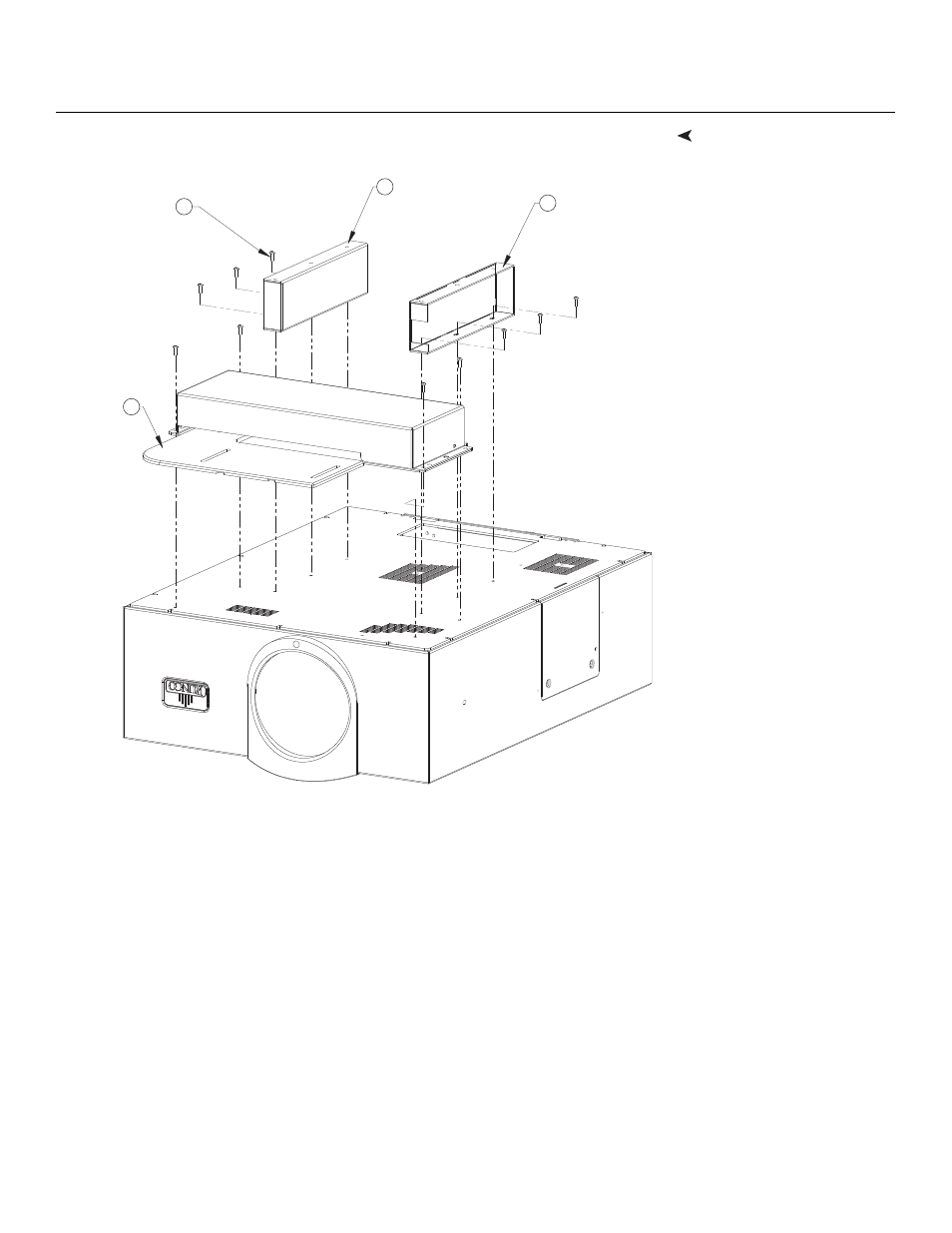

Figure 3-7. VX-6000d/CineWide with AutoScope Motor Assembly – Exploded
View
Remove Projector Front Feet: Place the projector upside down on a blanket or other
soft surface. Loosen and remove the two front feet on the projector using a Phillips
screwdriver.
3
4
Screw, Phillips
Pan-Head,
10-32 x 1/2”
(10x)
1
AutoScope
Lens
Motor
2
CineWide with
AutoScope
Ceiling Mt. Adapter/
Projector Stand,
Right
CineWide with
AutoScope
Ceiling Mt.
Adapter/Projector
Stand, Left
