2.2
VX-6000d Rear Panel

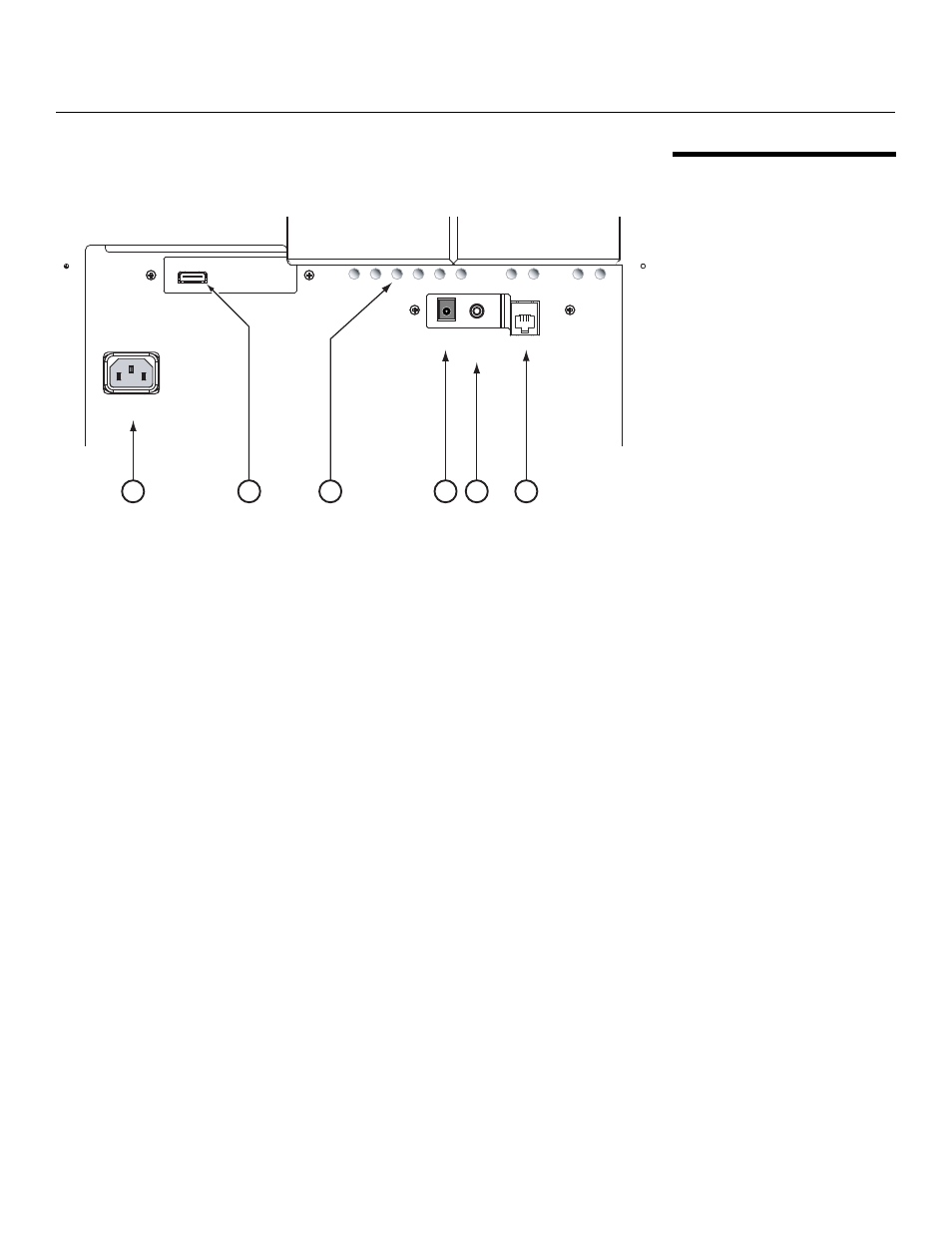

Figure 2-2 shows the VX-6000d rear connector panel.
Figure 2-2. VX-6000d Rear Panel
1.
POWER INPUT (100 to 240 VAC)
Connect the VX-6000d to power here.
2.
HDMI INPUT
An HDCP-compliant, digital video input for connecting the HDMI output from the DHD
Controller.
3.
BUILT-IN KEYPAD
Used for maintenance and troubleshooting purposes only.
4.
12-VOLT (200 mA) TRIGGER OUTPUT (cylindrical, DC power supply-type jack)
Connection for a retractable screen, screen masking or other, 12-volt
trigger-activated equipment. Outputs +12 volts/200 mA when the projector is turned
on.
5.
WIRED IR (3.5-mm, mini phono jack)
Not used. To use an external infrared receiver or wired remote control with this
projector, connect it to the IR input on the DHD Controller (see Figure 2-4).
6.
RS-232C (RJ-11 female connector)
Connect the Display Control (RS-232) output from the DHD Controller here, using
the provided communication cable.
HDMI
HDMI
AC IN 100-240V 50-60Hz
AC IN 100-240V 50-60Hz
TRIGGER
TRIGGER
IR
IR
RS-232 OUT
RS-232 OUT
RETURN
ENTER
DOWN
UP
LEFT
RIGHT
RETURN
ENTER
DOWN
UP
LEFT
RIGHT
ON
ON
MENU
MENU
ASPECT
RATIO
ASPECT
RATIO
STANDBY
STANDBY
1
2
3
4
5
6
