Install lens motor, Figure 3-9 . autoscope lens motor installation, 9. autoscope lens motor installation – Runco CINEWIDE VX-6000D User Manual
Page 45: Pre l iminar y
Runco VX-6000d Installation/Operation Manual
29
PRE
L
IMINAR
Y
Install Lens Motor: Position the AutoScope Lens Motor (item #1) as shown in Figure
3-9. Line up the mounting holes on the lens motor housing with those on the underside of
the projector. Secure the motor to the projector with the four remaining 10-32 x 1/2”
Pan-Head Phillips screws (item #2).

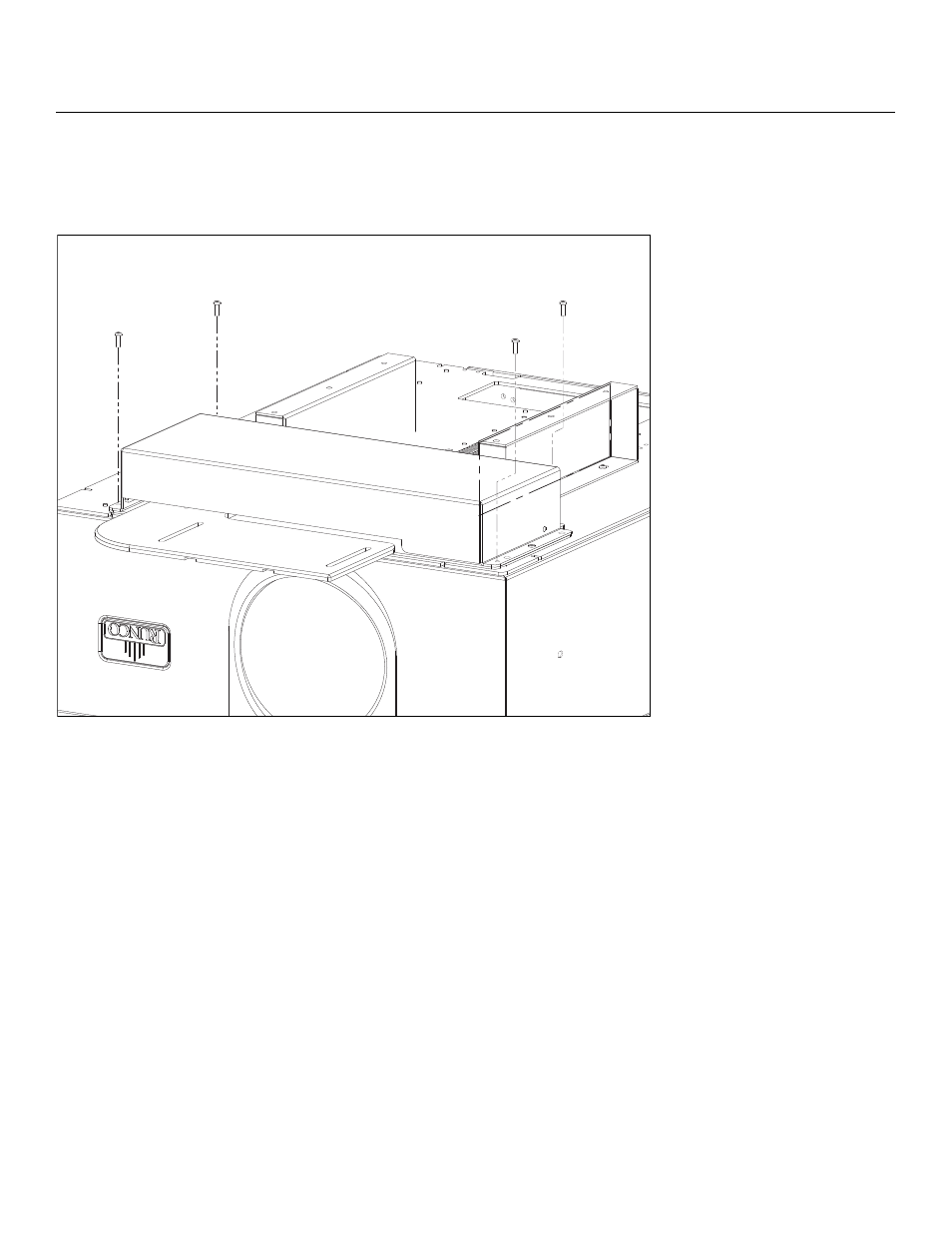

Figure 3-9. AutoScope Lens Motor Installation
After you have installed the AutoScope lens motor, proceed with Mounting the
VX-6000d (page 31).
