Runco VX-6000d Installation/Operation Manual

PRE

IMINAR

Connecting 12-volt
Trigger Outputs to
External Equipment

DHD Controller: If your VX-6000d is equipped with a CineWide with AutoScope system,
connect the AutoScope lens motor to a 12-volt trigger output on the DHD Controller; see
Figure 3-17.

Similarly connect other 12-volt trigger-activated equipment (such as retractable screens or
screen masks) to the other trigger outputs.

For more information on using the DHD Controller triggers, refer to Triggers on page 70.

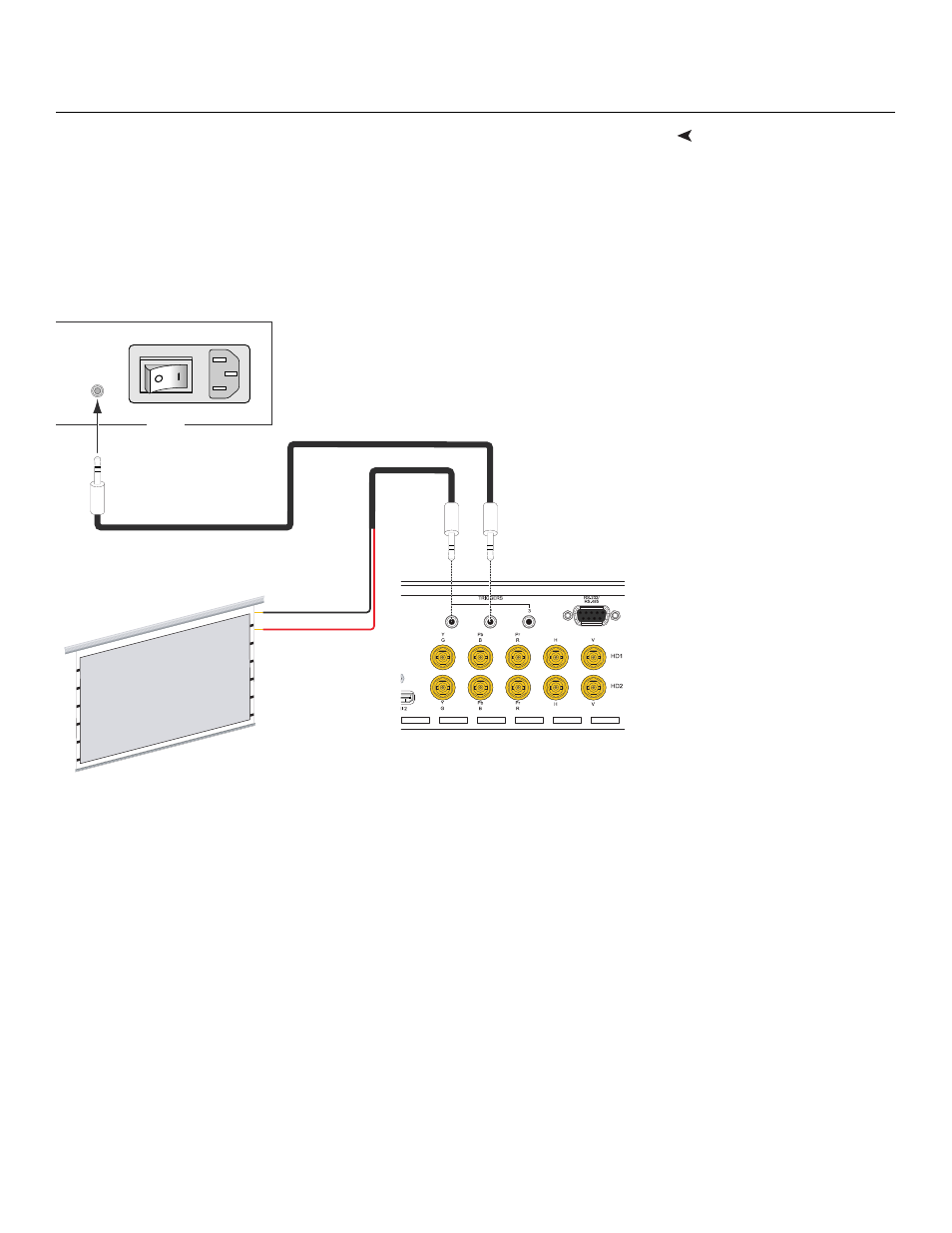

Figure 3-17. 12-volt Trigger Output Connections (from DHD Controller)

Tip = +12V

Sleeve = Ground

AutoScope Lens Motor

3.5-mm
mini plug

AC Input

Power

Switch

Retractable Screen or other
12-volt trigger-activated
device
