Publication 1771-6.5.132 - June 2000
Planning Your Configuration and Data Mapping Your Devices 2-3

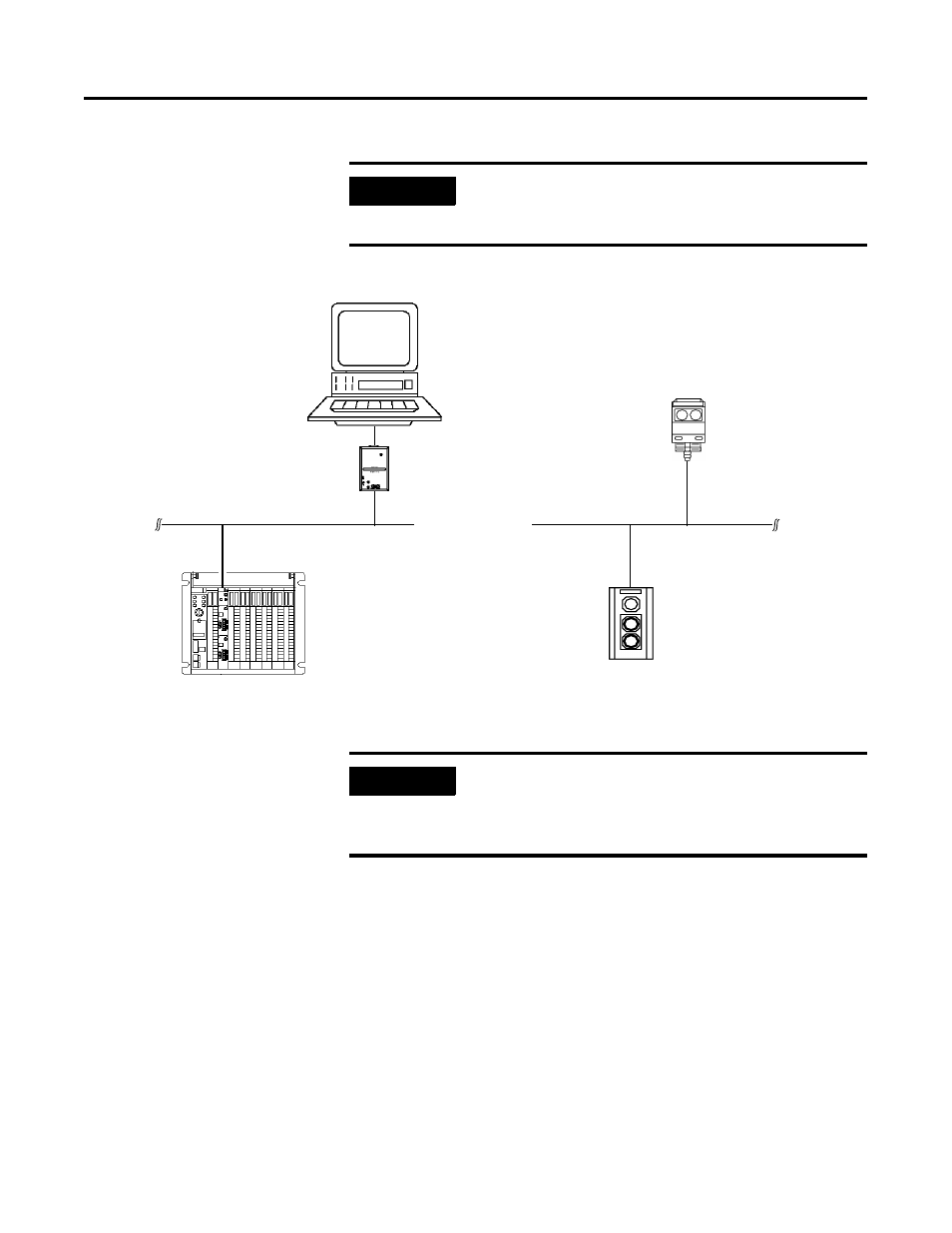

The system you will set up is shown below:
IMPORTANT
In the following example, output is data sent to a
device from a controller. Input is data collected from
a device by a controller.
DeviceNet Network
PC running Windows NT
or Windows 95/98,
containing RSNetWorx for
DeviceNet software
Series 9000
Photoelectric
Sensor
RediSTATION
Operator Interface
1771-SDN and PLC-5
in 1771 I/O Chassis
Node 7
Node 9
Node 62
1770-KFD
Communication
Module
Node 0
∗ ∗
* See note below
IMPORTANT
Each end of the DeviceNet trunk cable must be
properly terminated with a resistor. Refer to the
DeviceNet Cable Planning and Installation Manual,
publication DN-6.7.2 for detailed information.
