Installing the RICOH-SCRIPT2 Type305
13
2
Installing the RICOH-SCRIPT2 Type305
R
CAUTION:
Important
❒ The RICOH-SCRIPT2 can be dam-
aged by small amounts of static
electricity. Before touching it,
touch something metal to remove
static electricity from you.
Note
❒ For this printer, use only RICOH-
SCRIPT2 Type305.
A
Check the contents of the box for
the following items.
• DIMM (Dual Inline Memory
Module)
• Installation Guide
• Operating Instructions
B
Turn off the printer's power
switch and remove all cables and
cords from the printer.

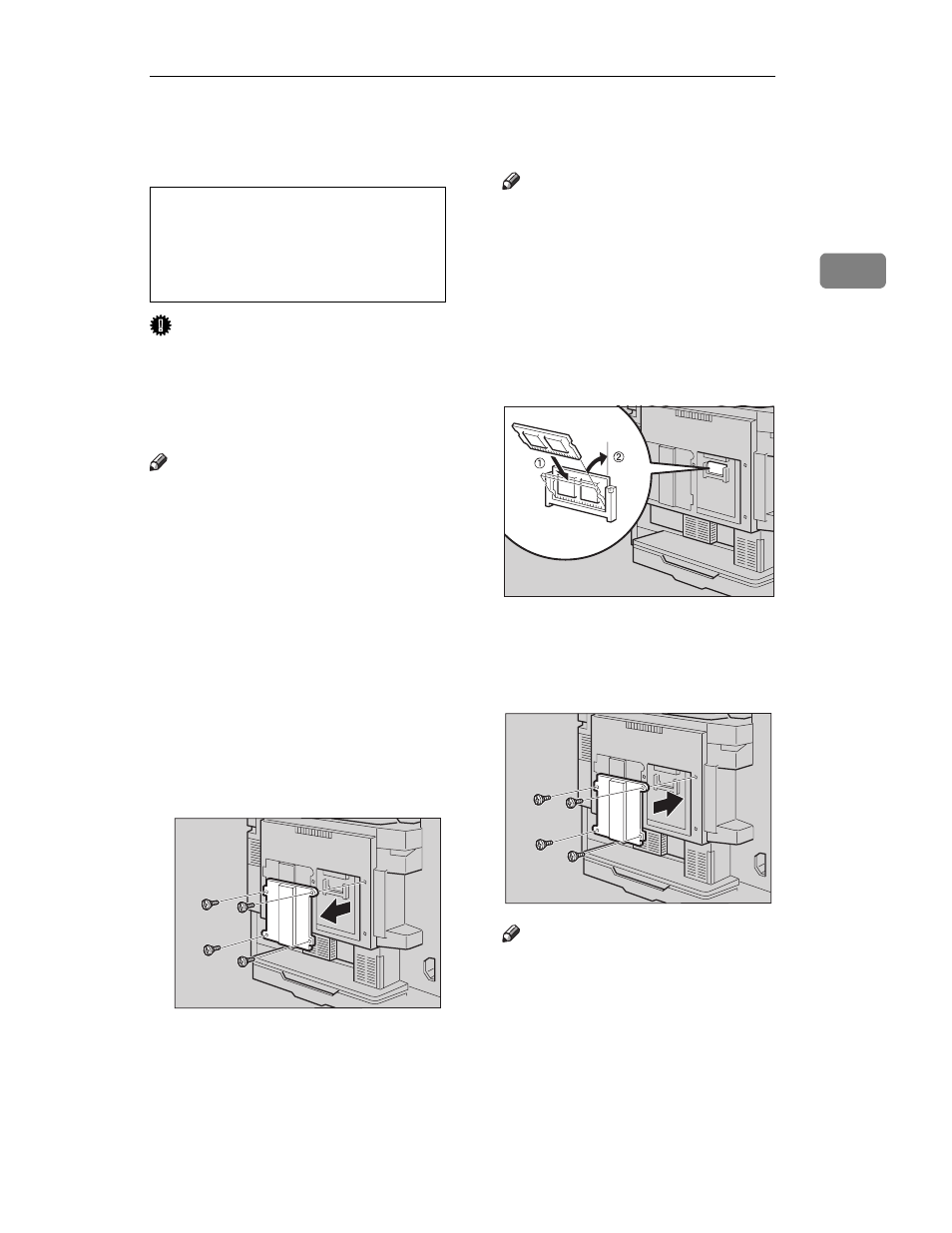

C
Remove screws and remove the
right back plate.
Note
❒ A coin can be used to remove
the screws.
D
Make sure that the notch in the
module is on the right side. Tilt
the module to 30 degrees from
perpendicular to the slot and
slide it into the slot (
A A A A). Then
push it in until it makes an audi-
ble click as it pops into place (
B B B B).
E
Attach the back plate to its origi-
nal position, and fasten it with
screws that were removed in step
CCCC.
Note
❒ A coin can be used to fasten the
screws.
F
Plug the printer's power cord
back into the printer and the wall
socket. Turn on the printer's pow-
er switch.
• Make sure to turn off the printer
and wait for about 30 minutes
before installing options. Not
waiting for the printer to cool
down can result in a burn.
TFWX197E
TFWX200E
TFWX205E
