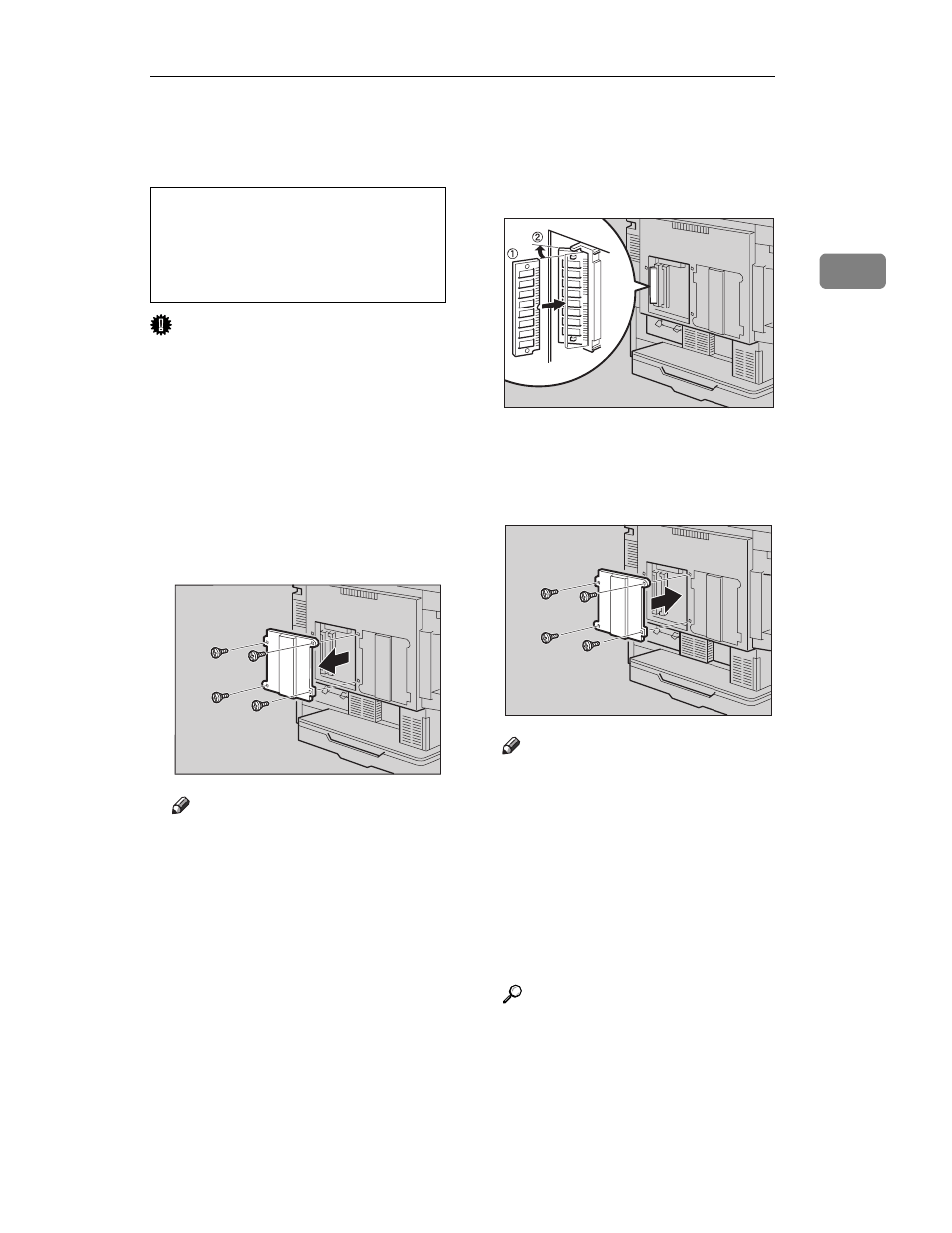

Installing the Memory Unit (SIMM)
11
2
Installing the Memory Unit (SIMM)
R
CAUTION:
Important
❒ The memory unit can be damaged
by small amounts of static electric-
ity. Before touching it, touch some-
thing metal to discharge static
electricity from you.
A
Turn off the printer's power
switch and remove all cables and
cords from the printer.
B
Remove screws and remove the
left back plate.
Note
❒ A coin can be used to remove
the screws.
C
Make sure that the notch in the
memory unit is on the bottom
side. Insert the memory unit per-
pendicular to the slot (
A
A
A
A). Then
tilt it to the left so that it is 30 de-
grees from perpendicular to the
slot (
B
B
B
B). It should make an audi-
ble click as it pops into place.
D
Attach the back plate to its origi-
nal position, and fasten it with
screws that were removed in step
BBBB.
Note
❒ A coin can be used to fasten the
screws.
E
Plug the printer's power cord
back into the printer and the wall
socket. Turn on the printer's pow-
er switch.
F
Print a configuration page to con-
firm that the memory unit is prop-
erly installed.
Reference
P.107 “Printing the Configura-
•
Make sure to turn off the printer
and wait for about 30 minutes
before installing options. Not
waiting for the printer to cool
down can result in a burn.
TFWX185E
TFWX190E
TFWX195E
