M3062PT3-RPD-E User’s Manual 4. Hardware Specifications
REJ10J0040-0600 Rev.6.00 July 01, 2006 Page 90 of 104
4.5.3 External Dimensions of the Converter Board M3062PT-80FPB

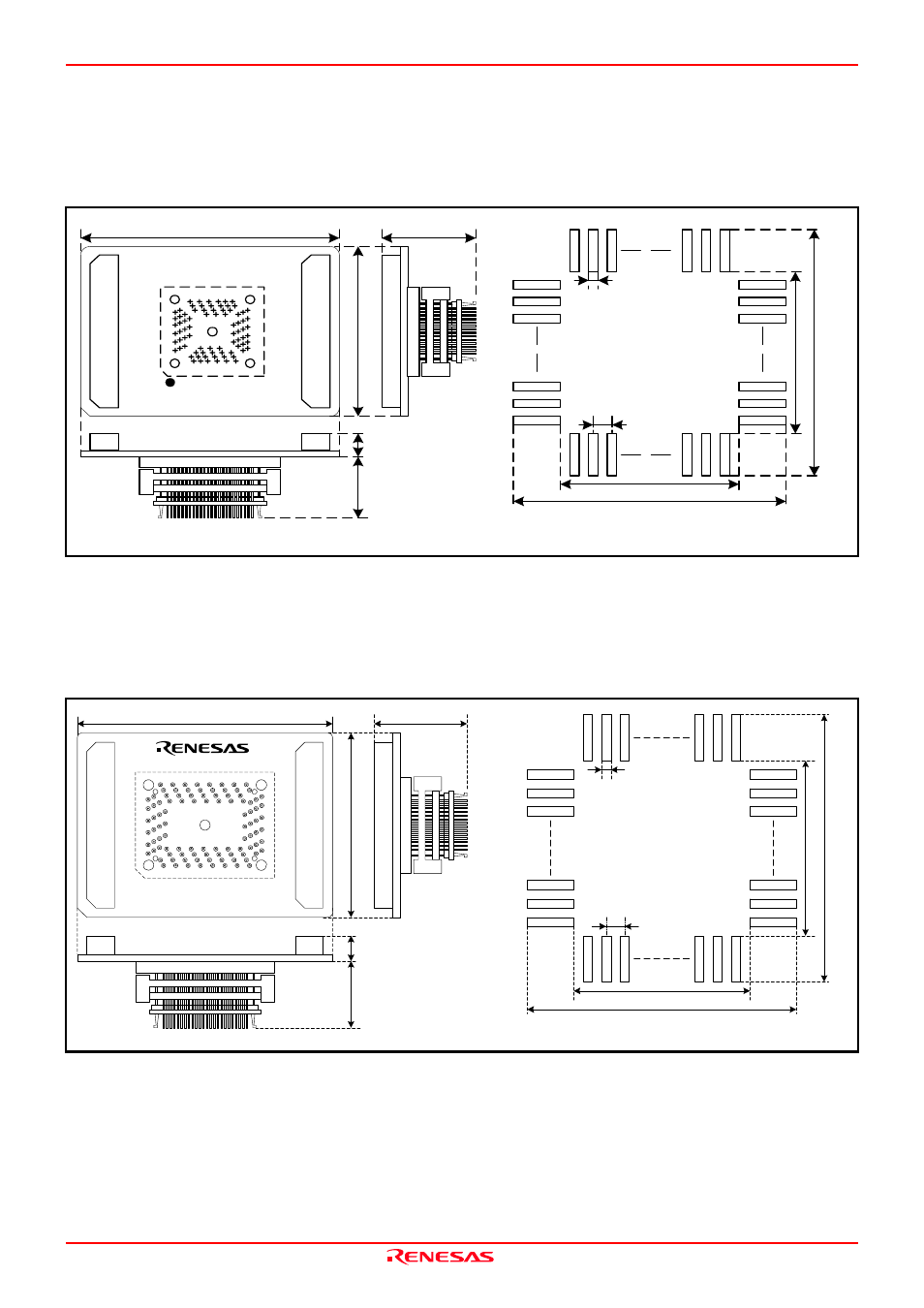

Figure 4.10 shows external dimensions and a sample foot pattern of the converter board for an 80-pin 0.65mm pitch QFP
M3062PT-80FPB (not included).
55.0 21.8
40
.0
5.3
0.35
0.65
13.0
17.6
13
.0
17
.6
Unit: mm
16
.5
RENESAS
M3062PT-80FPB REV.A
MADE IN JAPAN
40a 40
b
1a 1b
CN2 CN1
40
a 40
b
1a 1b
1 20
21
40
60 41
80
61
CN
1
CN
2
Figure 4.10 External dimensions and a sample foot pattern of the M3062PT-80FPB
4.5.4 External Dimensions of the Converter Board M3T-F160-100NRB
Figure 4.11 shows external dimensions and a sample foot pattern of the converter board for a 100-pin 0.65mm pitch QFP
M3T-F160-100NRB (not included).
21.8
40
.0
5.3
16.
5
0.35
0.65
19.8
24.6
13
.8
18
.6
Unit: mm
55.0
●1
M3T-F160-100NRB REV.A
MADE IN JAPAN
IC1
CN
1
CN
2
30
31
50
51 80
81
100
1a 1b
40
a 40
b
1a 1b
40
a 40
b
Figure 4.11 External dimensions and a sample foot pattern of the M3T-F160-100NRB
