M3062PT3-RPD-E User’s Manual 3. Usage (How to Use the Emulator Debugger)
REJ10J0040-0600 Rev.6.00 July 01, 2006 Page 70 of 104

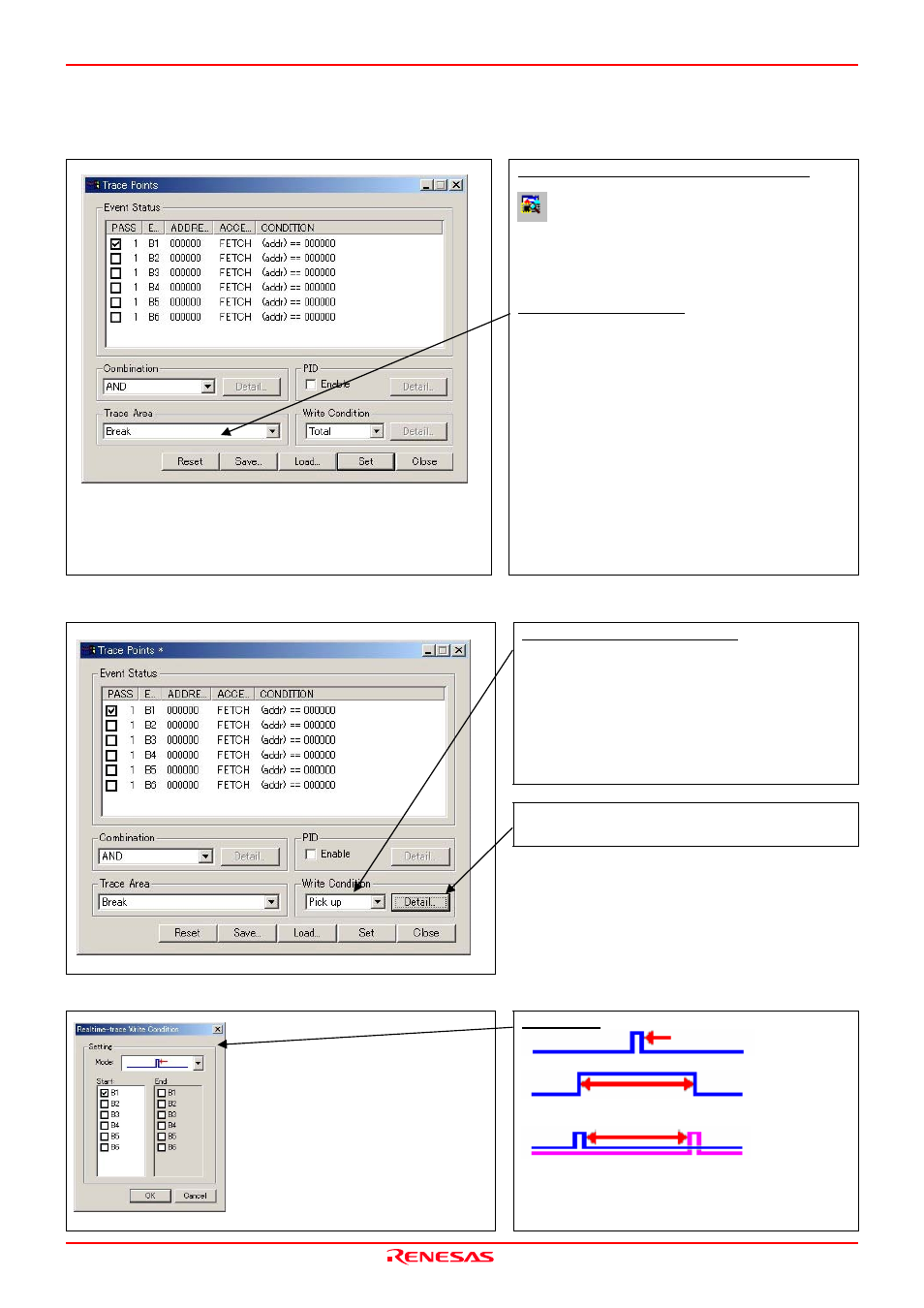

(3) Trace points setup window
1) Trace points setup window
Trace Points Setting Window in initial state
Clicking this toolbar button opens the trace point setting
window.
You can set events in the same way as for the hardware
breakpoints.
Specifying a trace range
You can specify a trace range for the trace event.
- Break
32K cycles of instruction execution before the user program
stopped is recorded.
- Before
32K cycles of instruction execution before a trace point
condition was met is recorded.
- About
16K cycles of instruction execution before and after a trace
point condition was met is recorded.
- After
32K cycles of instruction execution after a trace point
condition was met is recorded.
- Full
32K cycles of instruction execution after a trace began is
recorded.
2) Setting the trace write condition
Setting the trace write condition
You can specify a condition for the cycles to be written into the
trace memory.
- Total
All cycles are written into memory.
- Pick
up
Only the cycles in which the specified condition was met are
written into memory.
- Exclude
Only the cycles in which the specified condition was not met
are written into memory.
When you have finished setting the trace write condition, click
this button. The Realtime-trace Write Condition dialog box
shown below will appear.
3) Realtime trace Write Condition dialog box
Write mode
Only the cycle in which the specified Start event occurred.
A range of cycles from when the specified Start event occurred to
when the specified Start event became nonexistent.
A range of cycles from when the specified Start event occurred to
when the specified End event occurred.
