M3062PT3-RPD-E User’s Manual 2. Setup
REJ10J0040-0600 Rev.6.00 July 01, 2006 Page 30 of 104
2.8 Connecting the User System
Connect the emulation pod to the user system as shown in Figures 2.8.
Tip of emulation pod probe
128-pin
0.5mm pitch
0.65mm pitch 0.5mm pitch
M30800T- PTC
(included)
M30800T - PTC
M3T -100LCC- DMS
M3T - FLX100-T M3T - FLX100-R
●
: No.1 pin
*1
LCC socket
100-pin LCC
M3T-DIRECT100S
100-pin QFP
M3T- DUMMY100S
100-pin QFP
M3T -F160 -100NSD
100-pin LQFP
M3T -100LCC- QSD
100-pin LQFP
M3T -F160-128NRD
128-pin LQFP
100-pin 80-pin
0.65mm pitch
M 3062PT -80FPB
80-pin QFP
M3T-F160-100NRB
100-pin QFP
(included)
(included)
(not included)
(not included)
(not included)
(not included) (not included) (not included) (not included) (not included) (not included) (not included)
*: These three items are included in one package .

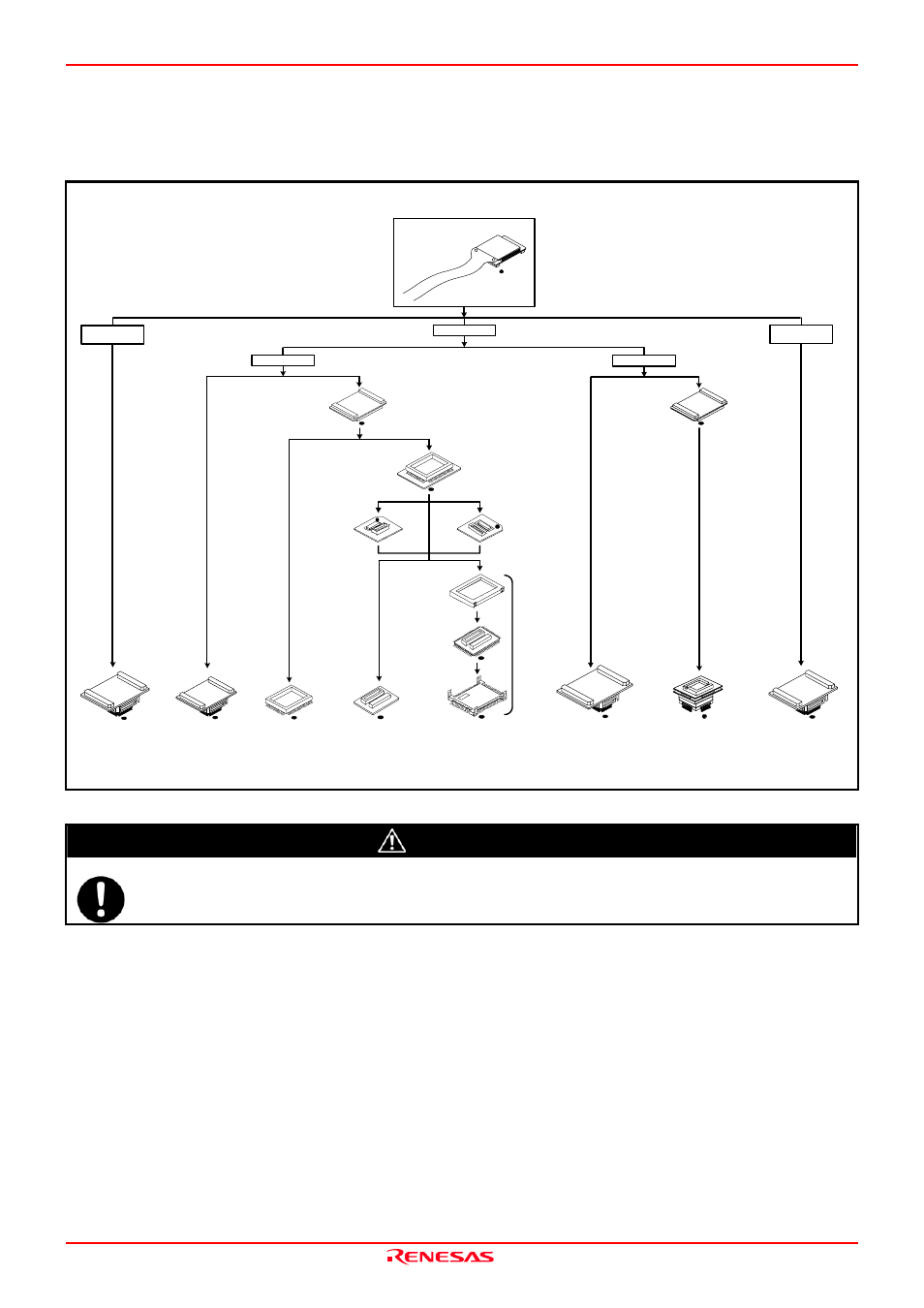

Figure 2.8 Connecting the user system
CAUTION
Note on Connecting the User System:
z Take care not to attach the converter board in a wrong direction. It may cause a fatal damage to the emulation
pod.
