M3062PT3-RPD-E User’s Manual 2. Setup
REJ10J0040-0600 Rev.6.00 July 01, 2006 Page 37 of 104
2.8.7 Connecting to a 100-pin 0.5mm Pitch Foot Pattern (Part 2)

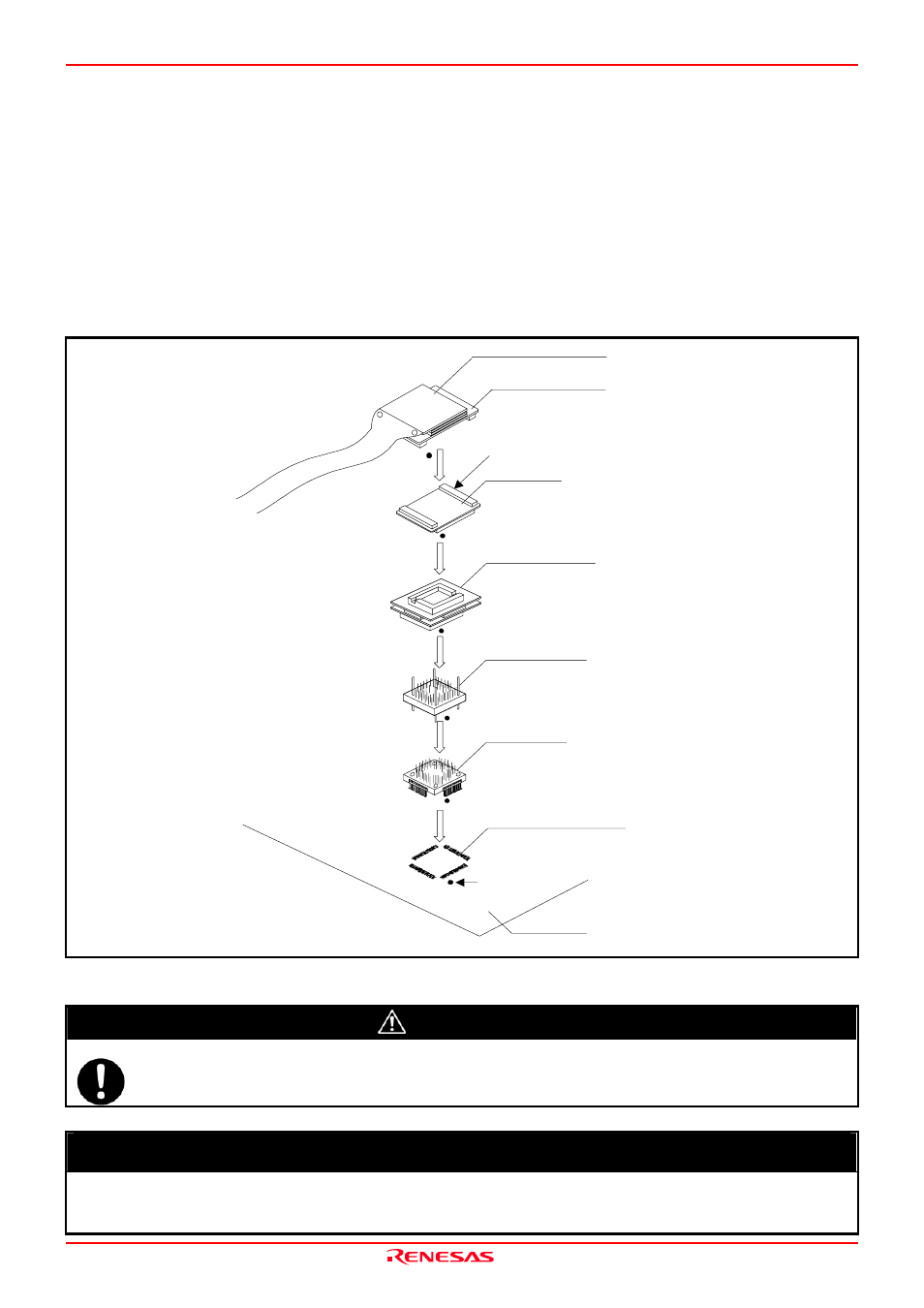

Figure 2.15 shows how to connect a 100-pin 0.5mm pitch foot pattern on the user system to the M3T-100LCC-QSD (not
included), and here following is its procedure. For details on the M3T-100LCC-QSD (not included), refer to its user's manual.
(1) Attach the TQPACK100SD to the user system.
(2) Attach the TQSOCKET100SDG to the TQPACK100SD.
(3) Attach the M3T-100LCC-QSD to the TQSOCKET100SDG.
(4) Attach the CN2 side of the M30800T-PTC to the CN2 side of the package converter board connected to the emulation pod
probe.
(5) Attach the M30800T-PTC to the M3T-100LCC-QSD.
Figure 2.15 Connecting to a 100-pin 0.5mm pitch foot pattern (2/2)
CAUTION
Note on Connecting the User System:
z Take care not to attach the converter board in a wrong direction. It may cause a fatal damage to the emulation
pod.
IMPORTANT
Notes on Connectors of the Converter board:
z The connectors of the M30800T-PTC are guaranteed for only 50 insertion/removal iterations.
z The connectors of the M3T-100LCC-QSD are guaranteed for only 20 insertion/removal iterations.
M3T-100LCC-QSD
(not included)
CN2 side
(4)
(5)
M30800T-PTC
(3)
(2)
TQSOCKET100SDG
TQPACK100SD
Package converter board
Tip of emulation pod probe
(1)
100-pin 0.5mm pitch
(PLQP0100KB-A) foot pattern
No. 1 pin
User system
