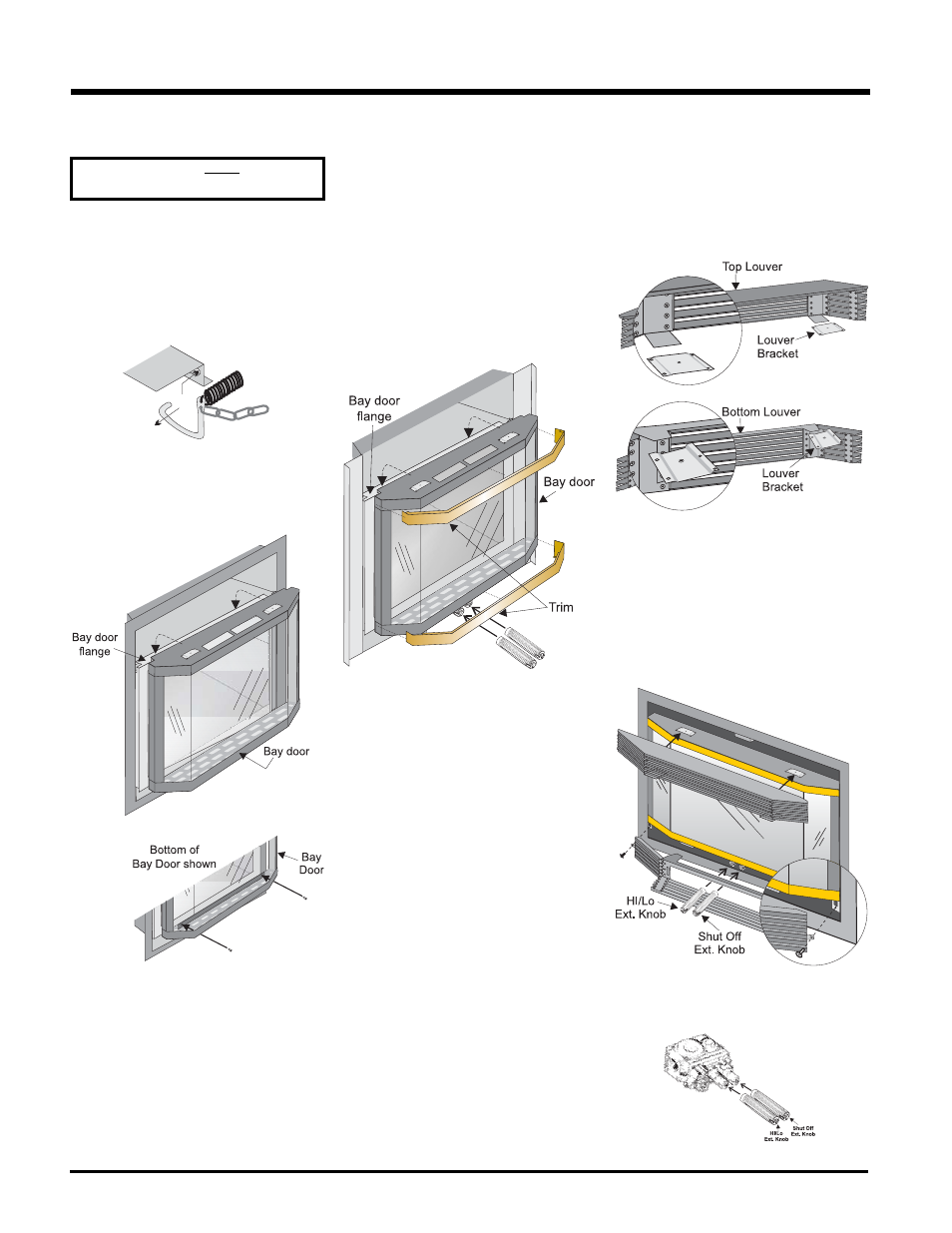

BAY LOUVERS
1) Install top louver by sliding the two bracket
clips into the brackets located on top of the
bay door. See below. The fi tted louver leaves
a small gap between faceplate bottom and
louver top.
Attach 4 supplied magnets each to the back of
the top and bottom trim pieces, and attach trim
to the top and bottom of Bay door.
2) Install bottom louver by sliding the two
bracket clips into the brackets located
underneath the bay door. Install bottom
louver by sliding the two bracket clips into the
brackets located underneath the bay door
and secure with 1 screw on each end.
Note: Top and bottom louvers and
brackets are different.
OPTIONAL BAY DOOR
The Bay louvers MUST be used
with the Bay glass option.
The optional Bay door is an overlay on the
fl ush front. The standard fl ush door and glass
must remain on the unit.
1) Unhook the 2 spring loaded hooks from the
bottom of the fl ush door.
2) Hook the top of the bay door over the fl ush
door fl ange and swing the bottom against
the bottom fl ange of the fl ush door.
3) Secure to the fl ush door bottom bracket with
2 screws provided.
4) Reconnect the 2 spring hooks securing the
fl ush door.
Note: If any maintenance etc. must be
done in the fi rebox, fi rst remove the
Bay louvers and door.
INSTALLATION
Optional Bay Trim
3) Slide the valve extension knobs onto the
valve knobs.
