98
Appendix B: WLAN Application Gateway 2246

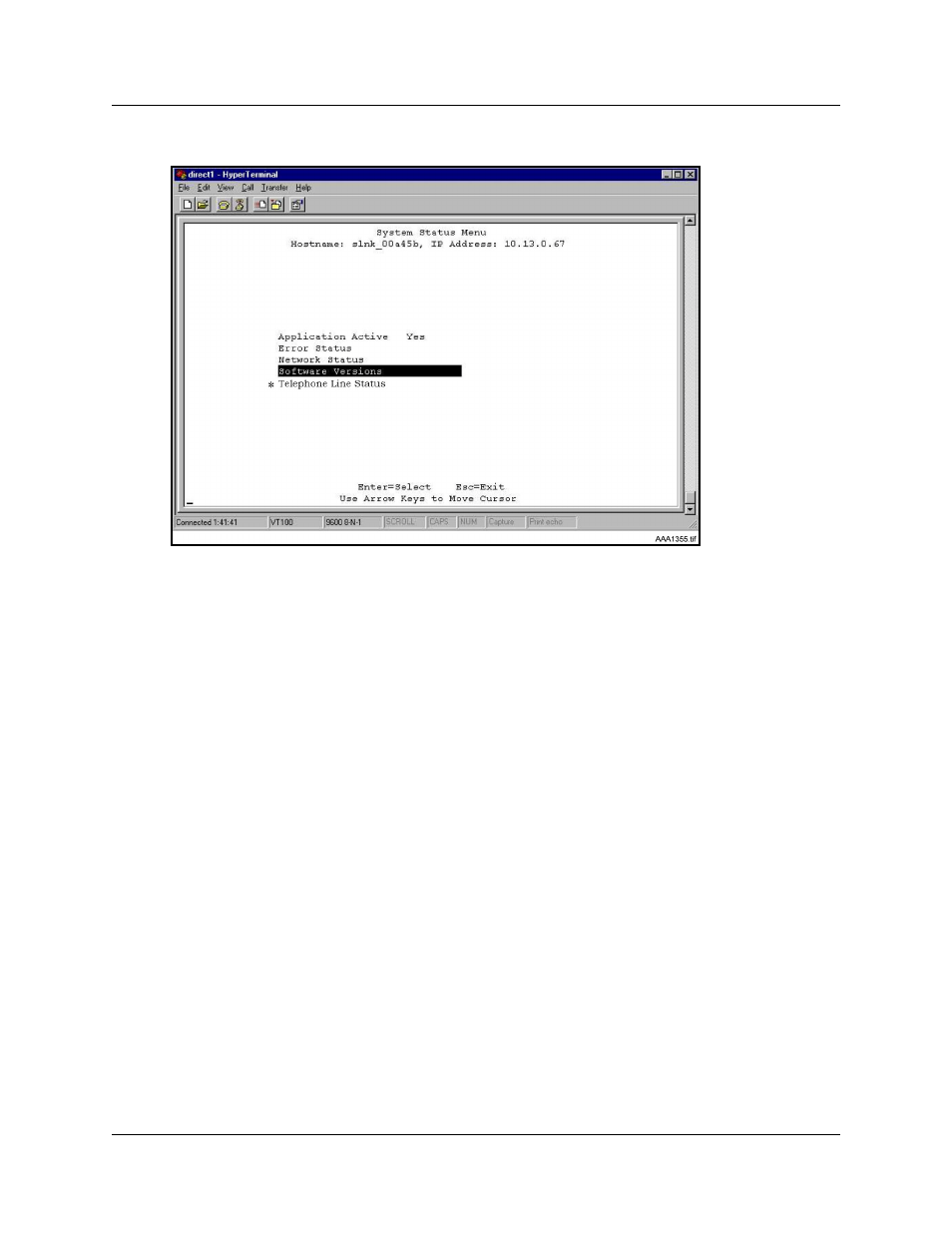

Figure 27 System Status Menu screen
The following options can be selected:
•
Application Active – displays Yes when the application is communicating correctly with the
WLAN Application Gateway 2246. Displays No when the application is not connected. This
field is read-only and changes dynamically.
• Error Status –The only application-specific error is No ECP heartbeat, which means the
application failed to send a heartbeat to the WLAN Application Gateway 2246.
• Network Status – information about the connection to the LAN. Refer to Viewing network
status on page 98.
• Software Versions – lists the software versions currently running on the WLAN Application
Gateway 2246. Refer to
Viewing software versions on page 101.
• * Telephone Line Status – information about the functioning of each wireless handset
registered to the WLAN Application Gateway 2246. Refer to
Viewing Telephone Line Status
on page 100.
Viewing network status
The WLAN Application Gateway 2246 is connected to the Ethernet network, referred to as the
LAN. The information about this connection displayed on the Network Status screen.
From the System Status Menu screen, select Network Status. The Network Status screen
displays information about the Ethernet network. This information can help troubleshoot network
problems. See
Figure 28 on page 99 .
